2.7.2 - REMOVING THE NORMAL OVEN DOOR HANDLE
Once you have removed the external glass, you can access the oven handle.
To remove the door handle, unfasten the two screws on the inside of the door
(see Fig. 123 Pos. 4).

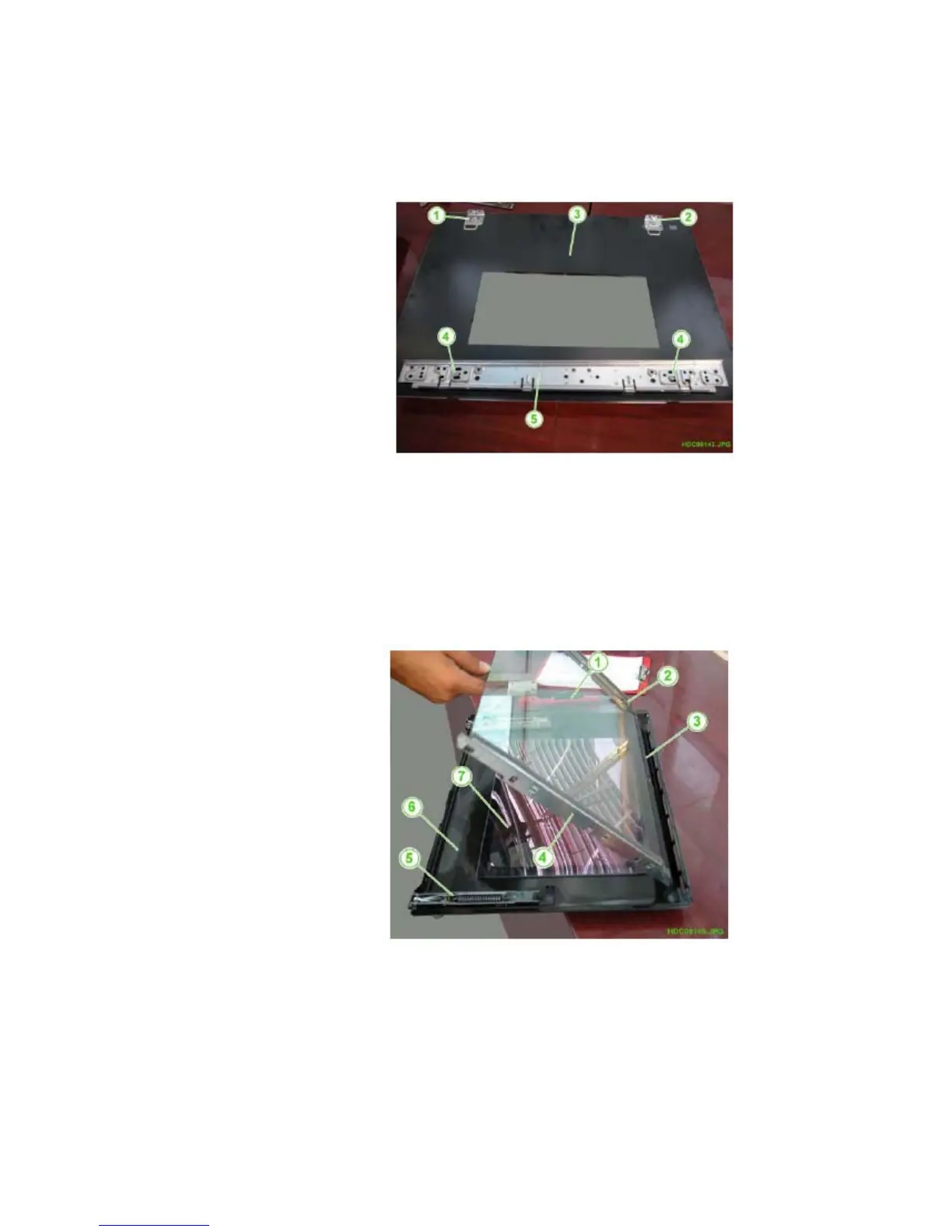

Fig. 123
1 - LOWER LEFT
FIXING BRACKET TO
SECURE THE GLASS
2 - LOWER RIGHT FIXING
BRACKET TO SECURE
THE GLASS
3 - DOOR EXTERNAL GLASS
4 - FIXING SCREWS
FOR HANDLE
5 - INNER DOOR
FIXING BRACKET
2.7.3 - REMOVING THE CENTRAL GLASS ON THE NORMAL TRIPLE-GLASS OVEN DOOR
Once you have removed the external glass from the door, you can access the door internal glass.
Fig. 124
1 - DOOR CENTRAL GLASS
2 - LEFT UPRIGHT
ON CENTRAL GLASS
3 - DOOR AIR GUIDE
4 - RIGHT UPRIGHT
ON CENTRAL GLASS
5 - OVEN HINGE
6 - INNER DOOR
7 - INNER DOOR
INTERNAL GLASS
