3.6 - WATER DRAIN VALVE
To access the water drain valve, proceed as follows:

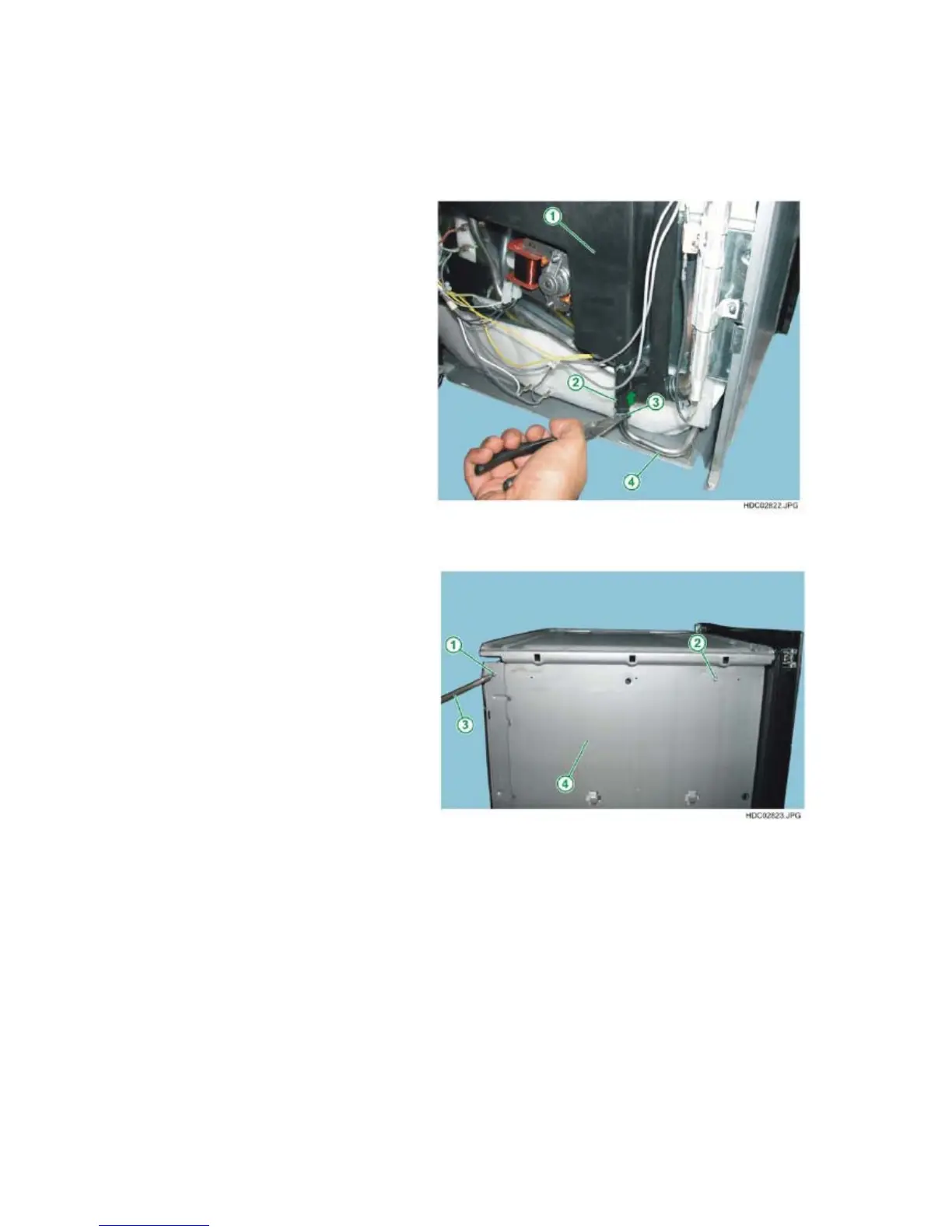

1 - Detach the silicone connection from the water drain pipe, by releasing the retainer clamp.
Fig. 268
1 - WATER TANK
2 - SILICONE CONNECTION -
3 - FIXING CLAMP -
SILICONE CONNECTION -
WATER DRAIN PIPE
4 - WATER DRAIN PIPE
2 - Unscrew the 2 water drain pipe fixing screws (see Fig. 269)
Fig. 269
1 - WATER DRAIN PIPE
REAR FIXING SCREW
2 - WATER DRAIN PIPE
FRONT FIXING SCREW
3 - TORX SCREWDRIVER
4 - BOTTOM OF THE OVEN
3 - Extract the water drain pipe from the rear of the oven.
4 - Remove the oven front panel as illustrated in the Manual entitled "Access to the Access
structure"
