Electrolux Built-in ovens Service Manual

SOI 02.10 FV 52/142 599 70 59-01
2.6.3 - UPPER PANEL (fan and safety thermostat)
In both oven types (electromechanical and electronic), once the upper panel of the oven has been
removed, the tangential cooling fan and the safety thermostat are accessible (as well as the hob
control components, where featured).
2.6.3.1 - REMOVING THE TANGENTIAL FAN ON ELECTROMECHANICAL VERSION WITH HOB
CONTROLS
To remove one of the components:
1 - Unfasten the fixing screws on the upper panel.
2 - Detach the connection wires for the tangential cooling fan
(or thermostat).
3 - Unfasten the fixing screws on the fan (or thermostat).
4 - Extract the component.

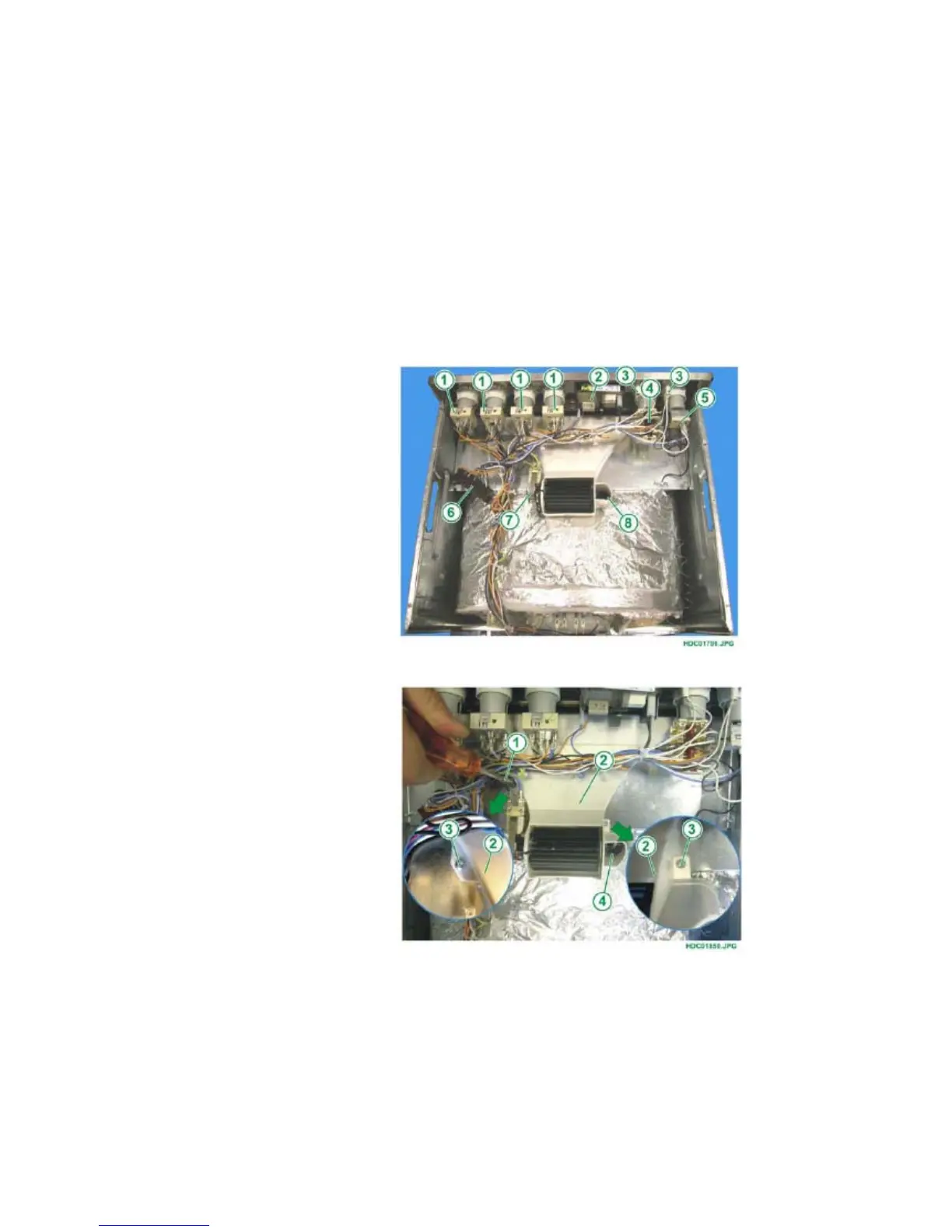

Fig. 98
1 - ENERGY REGULATORS
2 - ELECTRONIC
PROGRAMMER
3 - INDICATOR LIGHTS
4 - FUNCTION SELECTOR
5 - OVEN THERMOSTAT
6 - CONNECTION
CONNECTOR FOR THE
HOB
7 - COOLING FAN
8 - STEAM VENT
Fig. 99
1 - ENERGY REGULATORS
2 - COOLING FAN
3 - FIXING SCREWS FOR FAN
4 - STEAM VENT
