Electrolux Built-in ovens Service Manual

SOI 02.10 FV 110/142 599 70 59-01
2.17.2 - REMOVING THE CONTROL PROTECTION BOX
To access the timer, the function selector, the oven thermostat and the indicator lights, you need to
remove the control protection box by unscrewing the two fixing screws (see Fig. 226 and 227).

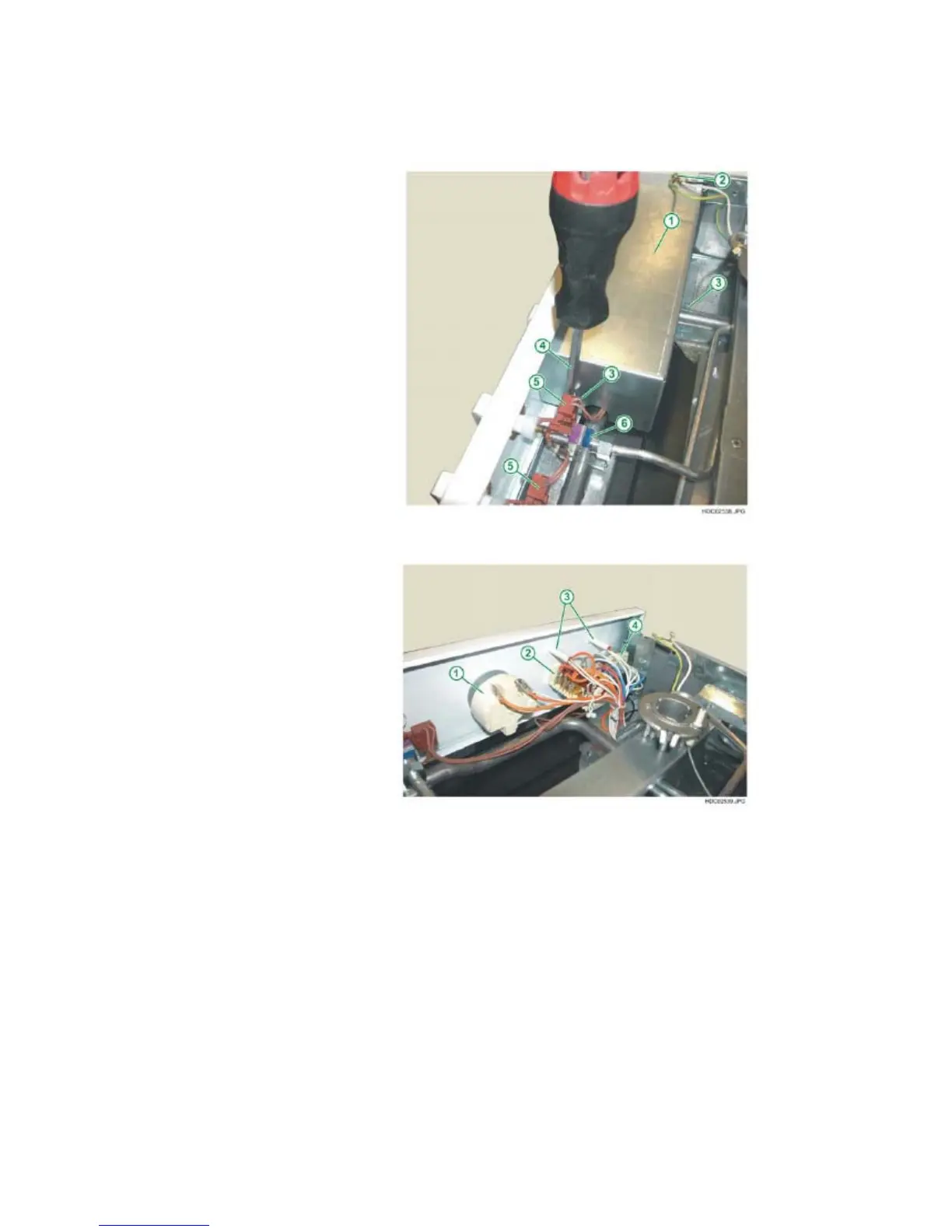

Fig. 226
1 - CONTROL PROTECTION
BOX
2 - FIXING SCREWS - FOR
THE BOX + EARTH
CONNECTION
3 - FIXING SCREWS FOR THE
BOX
4 - TORX SCREWDRIVER
5 - BURNER IGNITION MICRO
6 - GAS BURNER COCK
Fig. 227
1 - TIMER
2 - FUNCTION SELECTOR
3 - INDICATOR LIGHTS
4 - OVEN THERMOSTAT
