Electrolux Built-in ovens Service Manual

SOI 02.10 FV 77/142 599 70 59-01

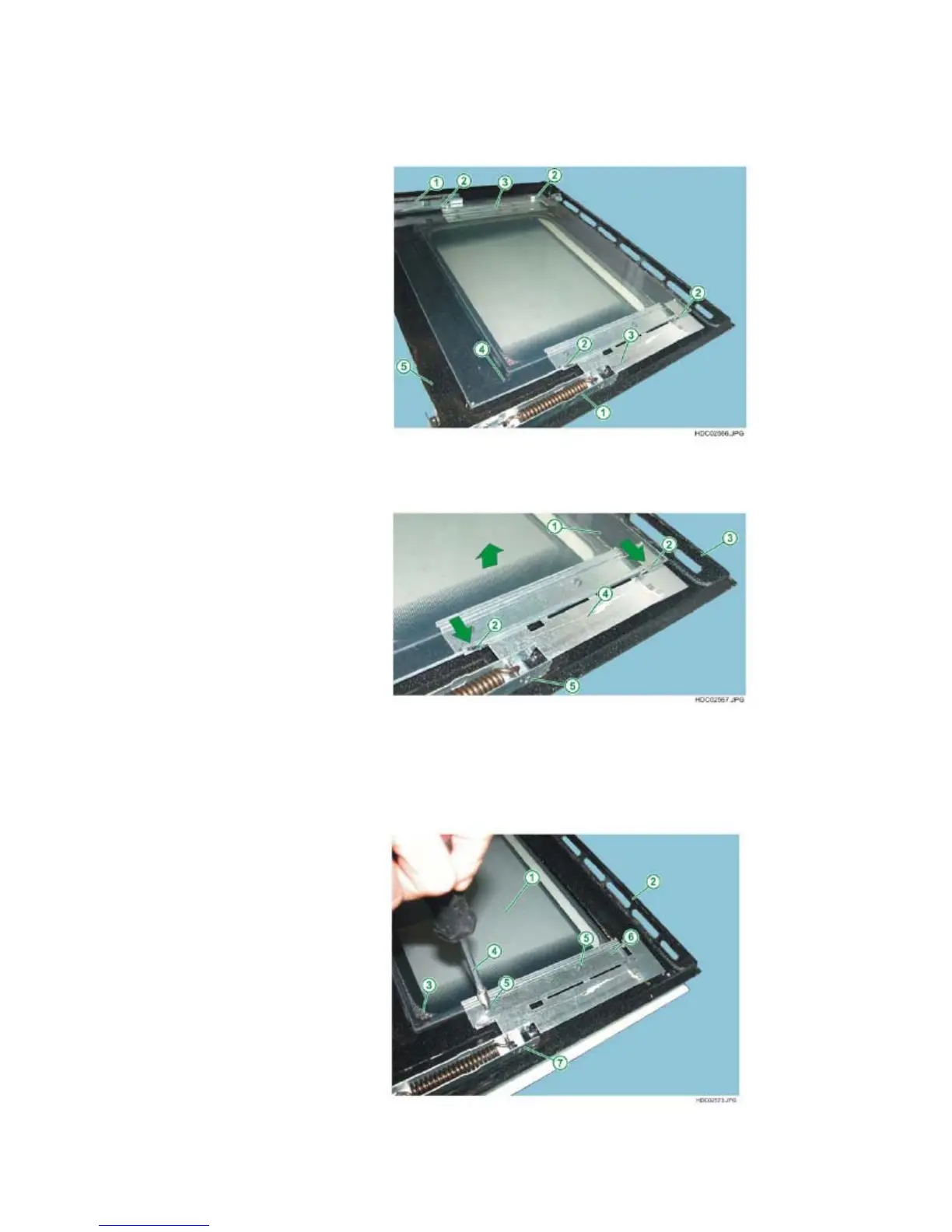

2.9.2 - REMOVING "METAL-GLASS" PYRO OVEN DOOR INTERNAL GLASS
Once you have removed the external glass from the door, you can access the door internal glass
(see Fig. 153).
Fig. 153
1 - DOOR HINGES
2 - METAL TABS TO
SECURE THE FIRST
INTERNAL GLASS
3 - FIXING BRACKETS
FOR INTERNAL GLASS
4 - FIRST INTERNAL GLASS
5 - INNER DOOR
To remove the first door internal glass, just extend the metallic tabs of the fixing brackets of the
internal glass (see Fig. 154)
Fig. 154
1 - FIRST INTERNAL GLASS
2 - METAL TABS TO
SECURE THE FIRST
INTERNAL GLASS
3 - INNER DOOR
4 - FIXING BRACKET
FOR INTERNAL GLASS
5 - DOOR HINGE
To remove the second and third internal glass panes, once you have removed the first internal
glass:
1 - Remove the four screws on the internal glass fixing brackets (see Fig. 155).
2 - Remove the internal glass fixing brackets (see Fig. 156).
Fig. 155
1 - SECOND DOOR INTERNAL
GLASS PANE
2 - INNER DOOR
3 - DOOR SEAL
4 - TORX SCREWDRIVER
5 - INTERNAL GLASS
FIXING BRACKET
FIXING SCREWS
6 - FIXING BRACKET
FOR INTERNAL GLASS
7 - DOOR HINGE
