Electrolux Built-in ovens Service Manual

SOI 02.10 FV 91/142 599 70 59-01

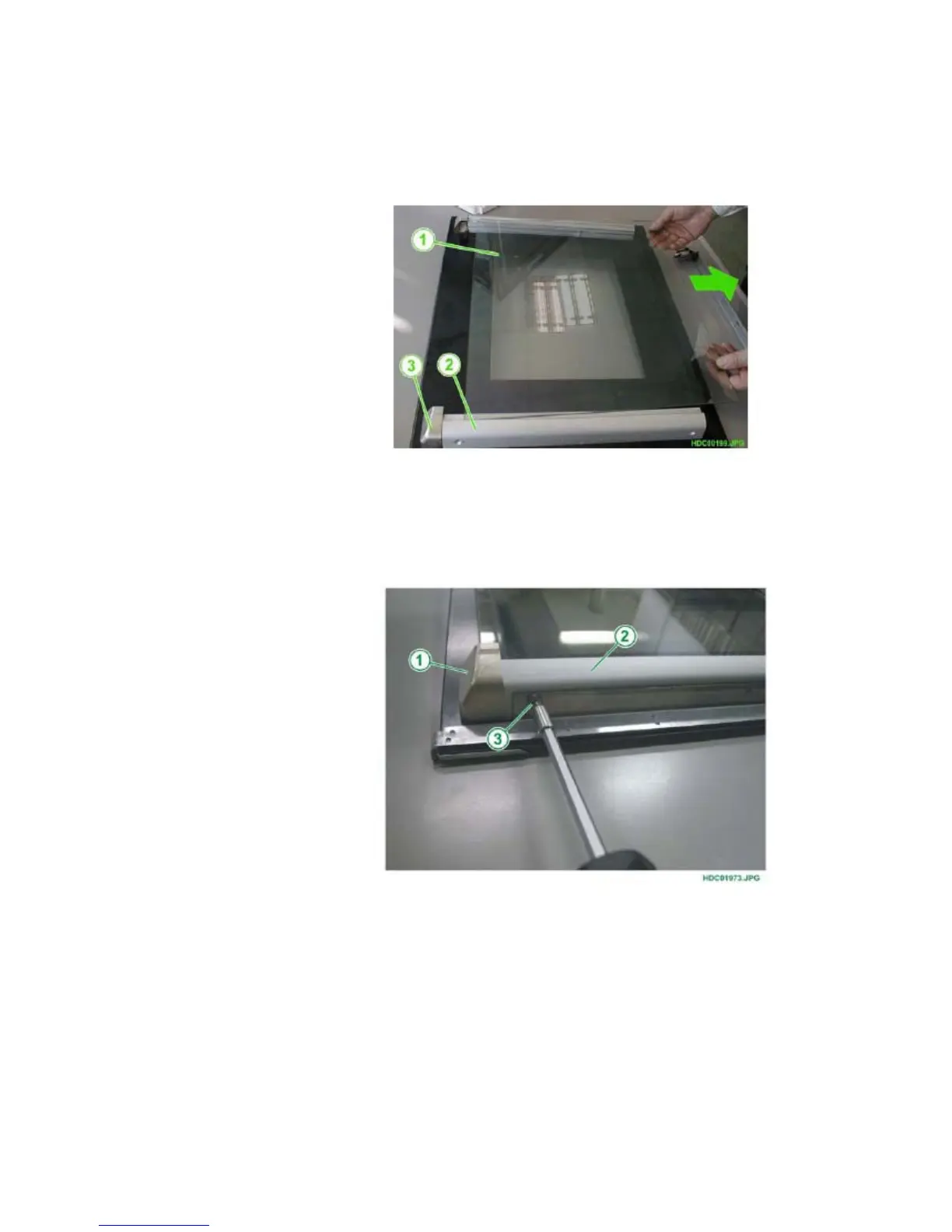

2.11.9 - REMOVING THE DOOR INTERNAL GLASS
Once you have removed the end pieces and the upper profile, you can slide out the door internal
glass pane (or panes) (see Fig. 188).
Fig. 188
1 - DOOR INTERNAL GLASS
2 - SUPPORT UPRIGHT
FOR INTERNAL GLASS
3 - LOWER END PIECE
2.11.10 - REMOVING THE LOWER END PIECES
To remove the lower left end piece, unfasten the external fixing screw (see Fig. 189).
Fig. 189
1 - LOWER END PIECE
LEFT SIDE
2 - SUPPORT UPRIGHT
FOR INTERNAL GLASS
3 - EXTERNAL FIXING
SCREW
