2.17.3 - REMOVING THE TANGENTIAL FAN PROTECTION

To access the tangential cooling fan, you need to remove the tangential fan protection box by

unscrewing the 4 screws (see Fig. 228, 229 and 230).

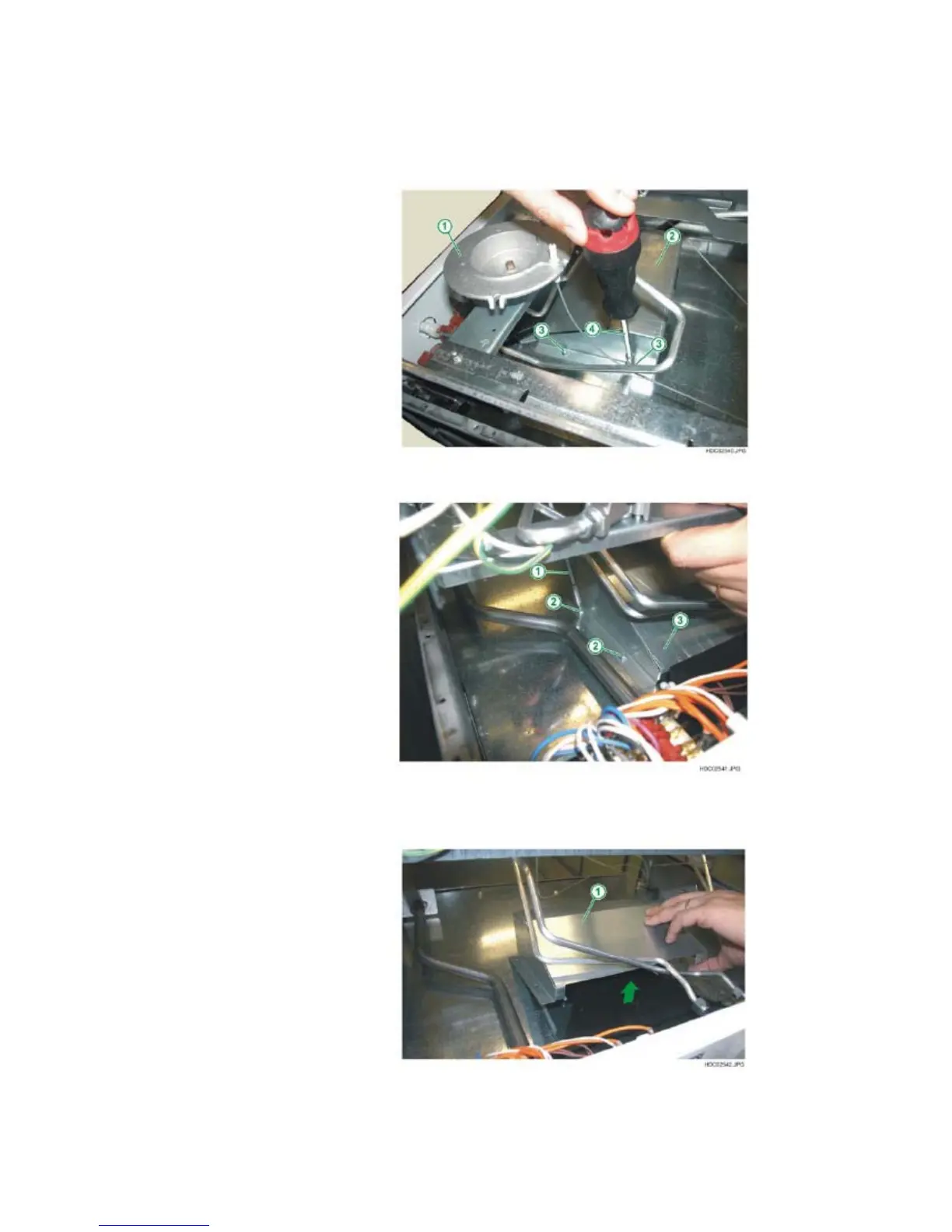

Fig. 228

1 - GAS BURNER

2 - TANGENTIAL

FAN PROTECTION BOX

3 - FIXING SCREWS FOR THE

BOX, LEFT SIDE

4 - TORX SCREWDRIVER

Fig. 229

1 - TORX SCREWDRIVER

2 - FIXING SCREWS FOR THE

BOX, RIGHT SIDE

3 - TANGENTIAL FAN

PROTECTION BOX

To remove the fan protection box, once you have removed the screws:

1 - Lift up the box at the front (see Fig. 230)

Fig. 230

1 - TANGENTIAL FAN

PROTECTION BOX
