2.3.3 - REMOVING THE CONTROL PANEL WITH POP-IN/POP-OUT STYLING
SUPPORT
In order to remove the control panel (front panel), firstly remove the upper panel (see chapter 2.6).

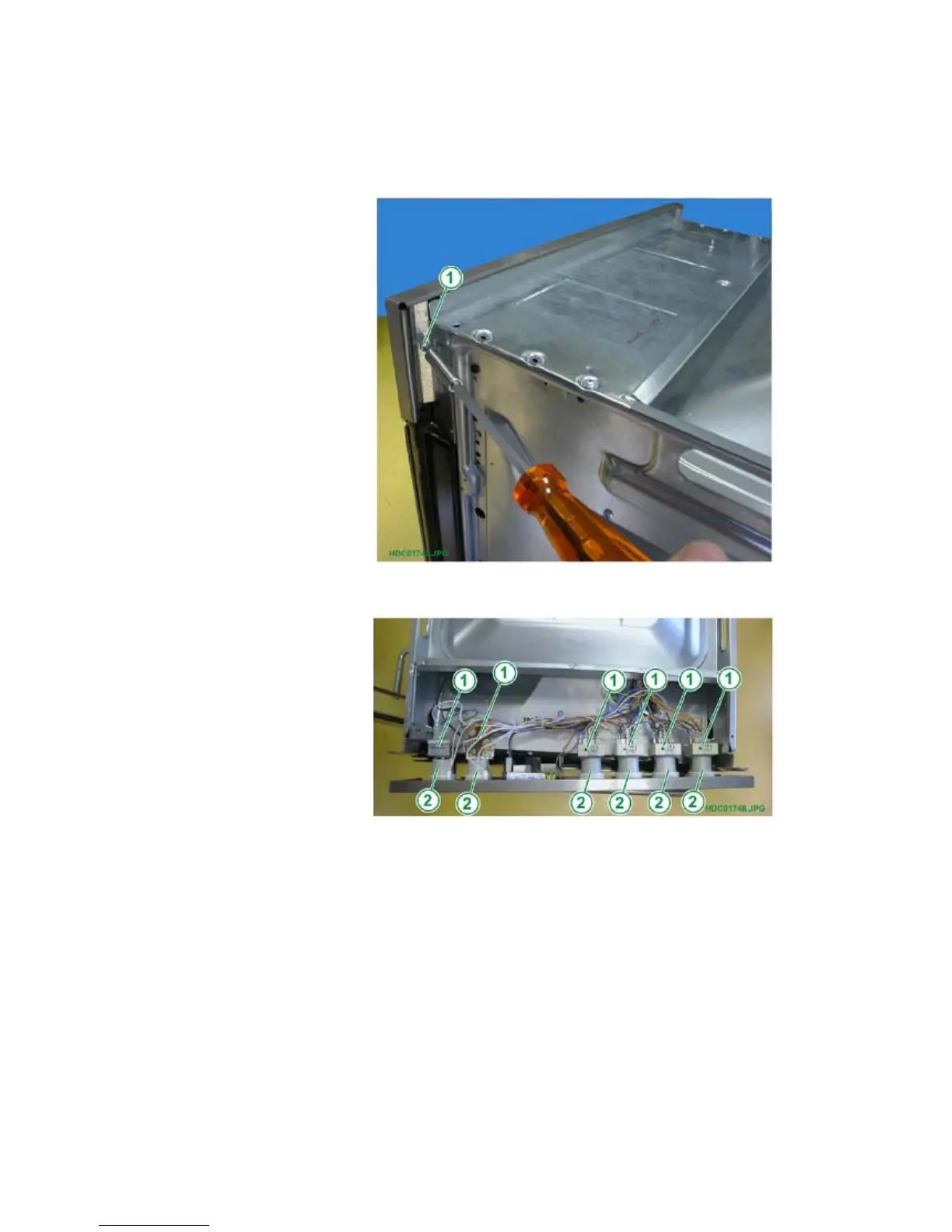

1. Remove the two screws which secure the control panel assembly in place (see Fig. 33).
Fig. 33
1 - FIXING SCREW
FOR FRONT PANEL
(ONE ON EACH SIDE).
Fig. 34
1 - CONTROL
COMPONENTS
2 - CONTROL
COMPONENT
SUPPORT
N.B.: From January 2010 (serial number 001….) access to the top of the oven has improved
thanks to the progressive introduction of a new one-piece top oven cover (see chapter 2.6.1).
