Electrolux Built-in ovens Service Manual

SOI 02.10 FV 113/142 599 70 59-01
2.17.4 - REMOVING THE TANGENTIAL COOLING FAN
To remove the tangential cooling fan, once you have removed the protection box:
1 - Unfasten the two side screws (see Fig. 233, 234 and 235)
2 - Disconnect the connection wires.

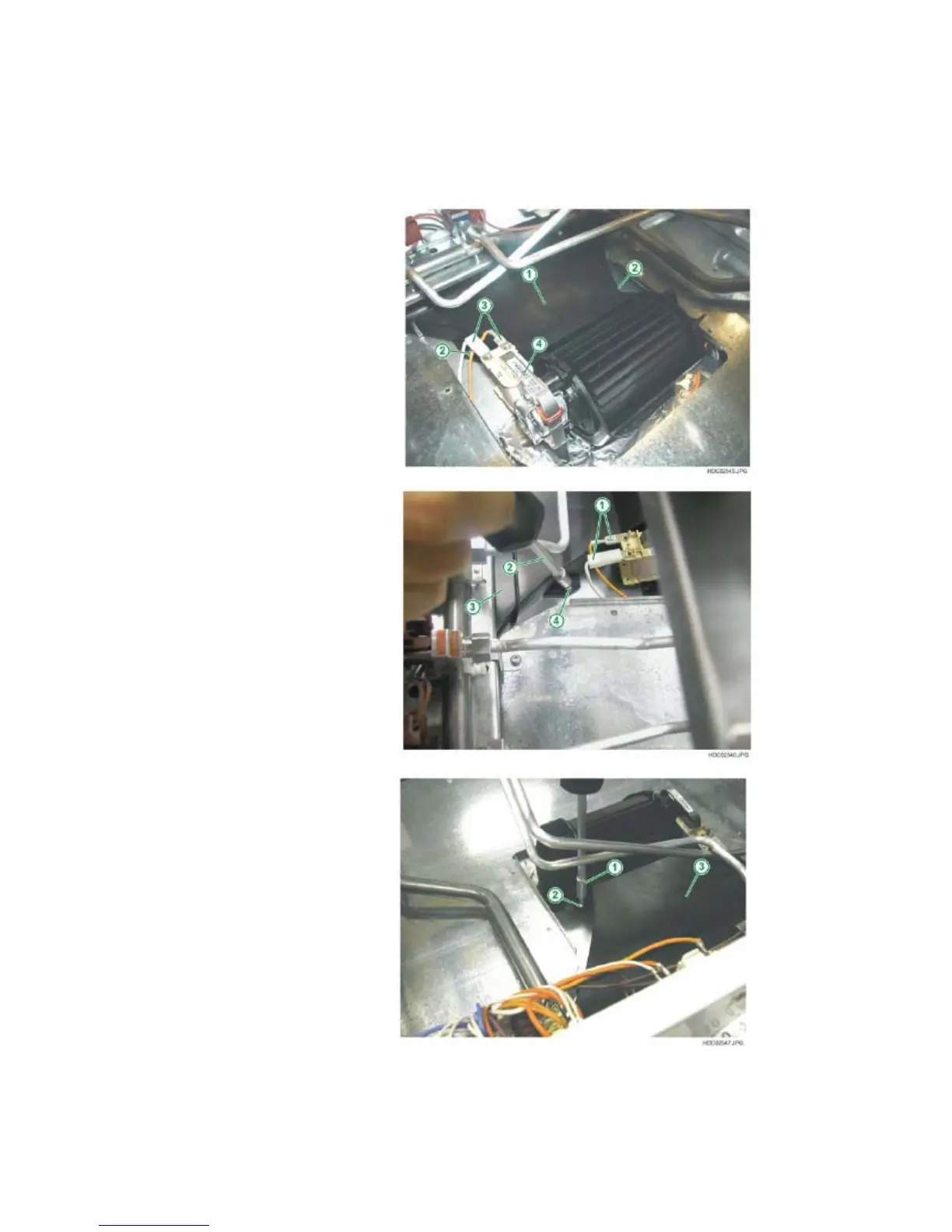

Fig. 233
1 - PLASTIC FAN BODY
2 - FIXING SCREWS -
3 - ELECTRIC CONNECTIONS
4 - FAN MOTOR
Fig. 234
1 - ELECTRIC CONNECTIONS
2 - TORX SCREWDRIVER
3 - PLASTIC FAN BODY
4 - FIXING SCREW - RIGHT
SIDE
Fig. 235
1 - TORX SCREWDRIVER
2 - FIXING SCREW - LEFT
SIDE
3 - PLASTIC FAN BODY
