2.17.6 - REMOVING THE GAS RAMP
To remove the ramp:

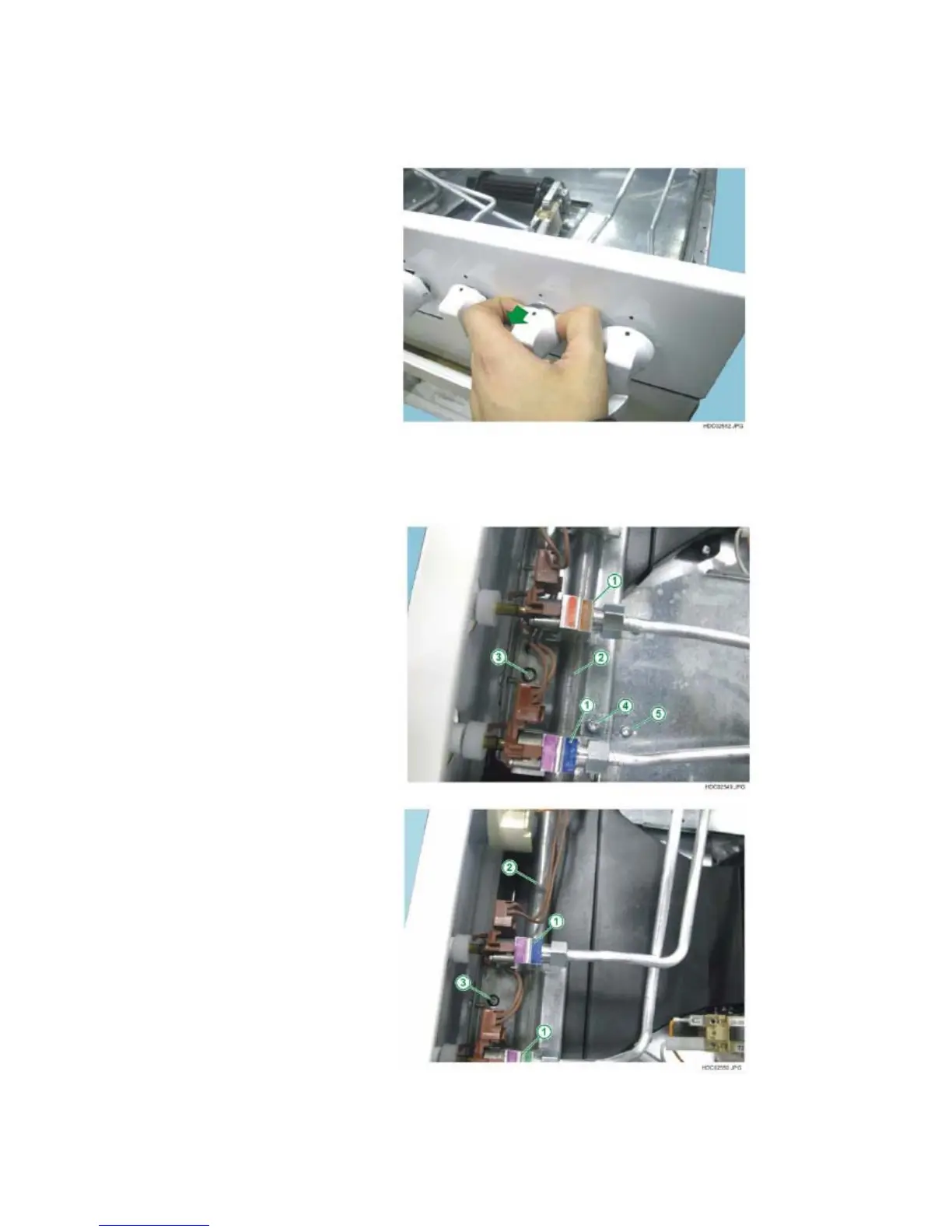

1 - Slide off the knobs from the cocks (see Fig. 238).
Fig. 238
2 - Remove the gas connection pipes (see Chapter entitled 2.17.5 - REMOVING THE GAS
SUPPLY PIPES).
3 - Unscrew the ramp fixing screws at the top (see Fig. 239 and 240).
Fig. 239
1 - GAS COCK
2 - GAS RAMP
3 - RAMP UPPER RIGHT
FIXING SCREW
4 - RAMP - FIXING BRACKET
FIXING SCREW
5 - FIXING BRACKET -
DEFLECTOR
FIXING SCREW
Fig. 240
1 - GAS COCK
2 - GAS RAMP
3 - UPPER LEFT RAMP
FIXING SCREW
