Electrolux Built-in ovens Service Manual

SOI 02.10 FV 57/142 599 70 59-01
2.6.3.5 - REMOVING THE TANGENTIAL FAN ON ELECTROMECHANICAL
PYRO VERSION
To remove one of the components:
1 - Unfasten the fixing screws on the upper panel.
2 - Detach the connection wires for the tangential cooling fan
(or thermostat).
3 - Unfasten the fixing screws on the fan (or thermostat).
4 - Extract the component.

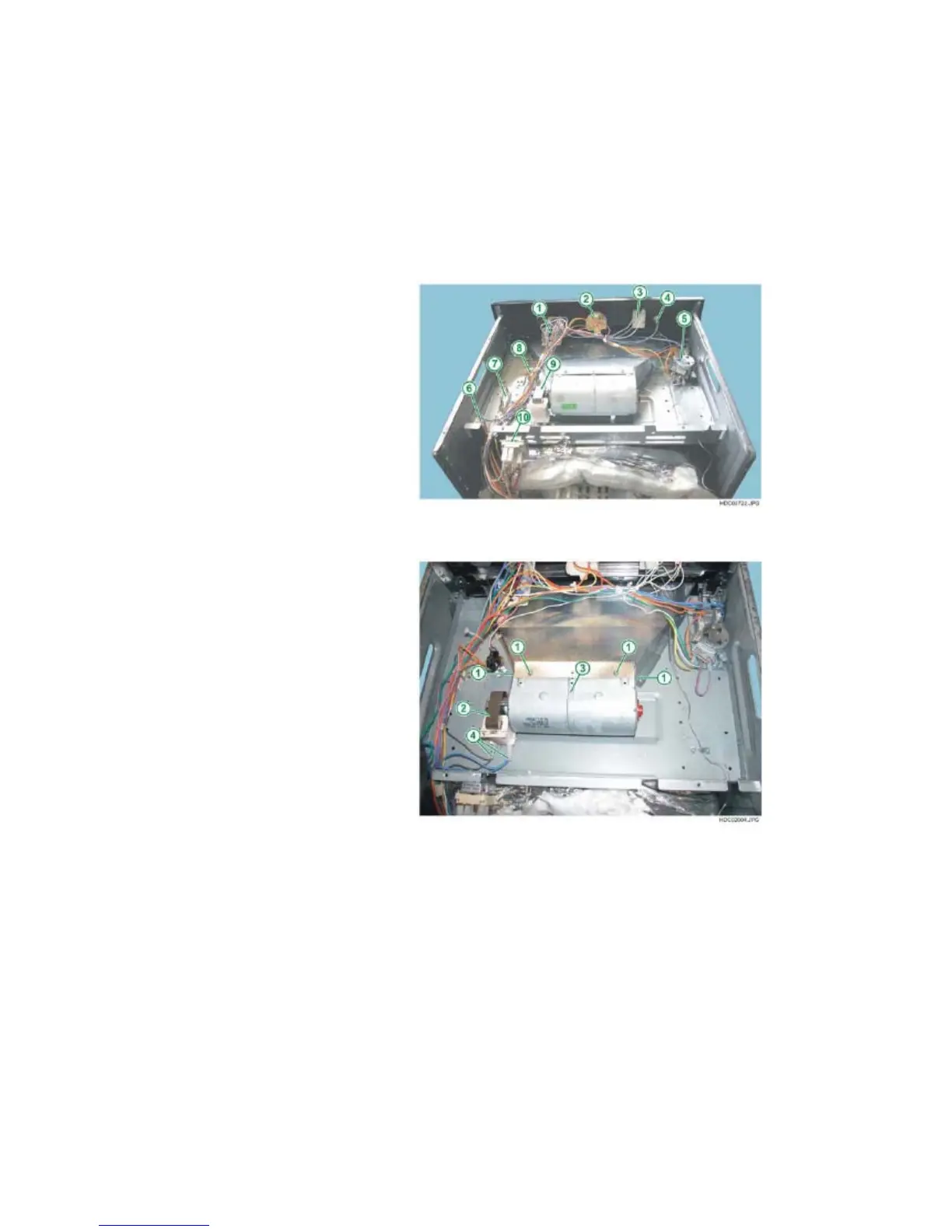

Fig. 107
1 - FUNCTION SELECTOR
2 - TIMER
3 - OVEN THERMOSTAT
4 - THERMOSTAT INDICATOR
LIGHT
5 - DOOR LOCK ASSEMBLY
6 - FACTORY TEST BUTTON
/ SERVICE
7 - DROP RESISTOR
FOR FAN
8 - PYROLYSIS
SAFETY THERMOSTAT
9 - COOLING FAN
10 - PYROLYSIS MULTIPLE
THERMOSTAT
Fig. 108
1 - FIXING SCREWS FOR
COOLING FAN
2 - COOLING FAN MOTOR
3 - FAN BODY
4 - ELECTRICAL CONTACTS FOR
CONNECTION
