2.11.5 - REMOVING THE UPPER HINGE
To remove the upper hinge:
- Remove the front panel fixing screw (see Fig. 182).
- Unfasten the upper hinge fixing screws (see Fig. 183).
- Lift the front panel slightly upwards and outwards to release the upper hinge (see Fig. 184).
- Extract the hinge upwards and towards the inside of the oven (see Fig. 184).

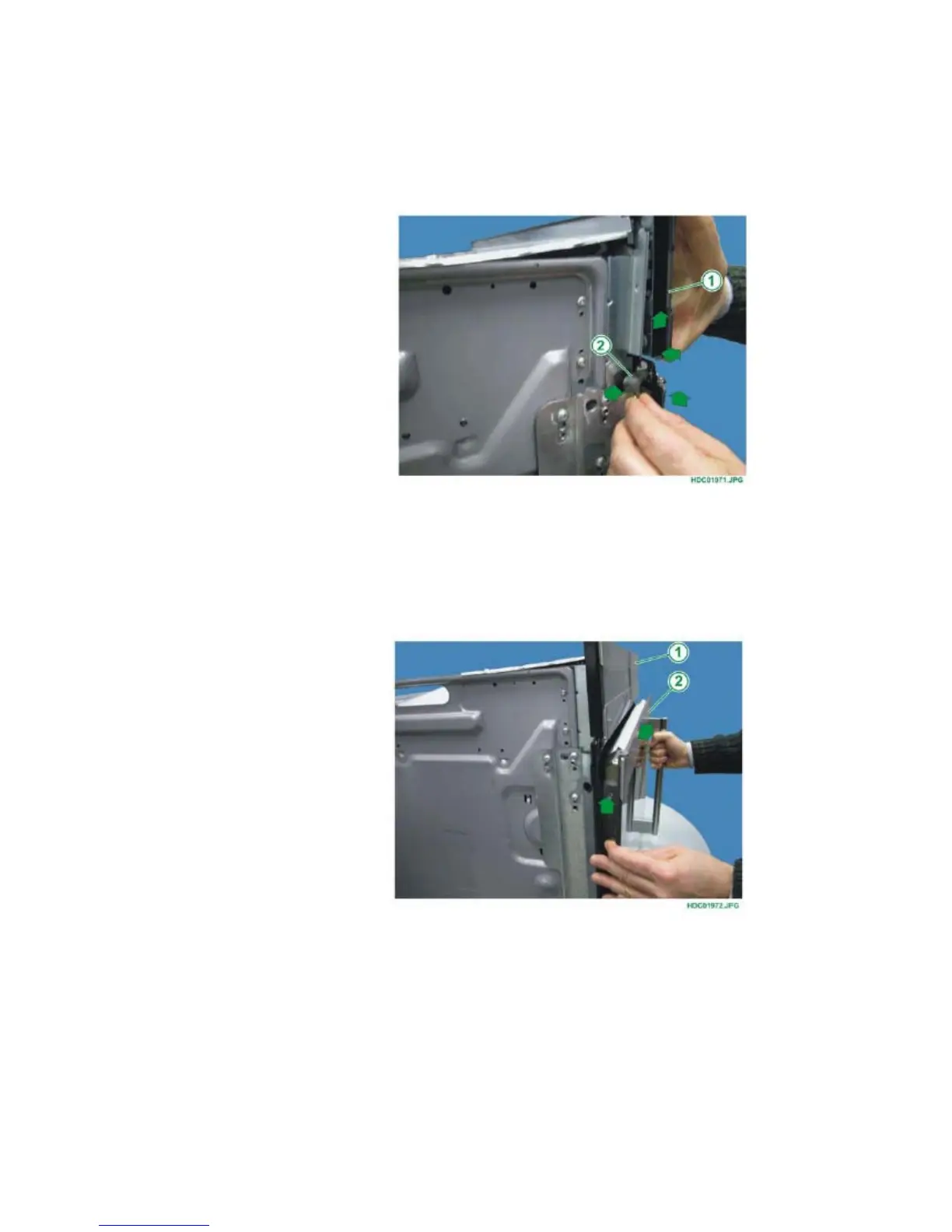

Fig. 184
1 - CONTROL PANEL
FRONT PANEL
2 - UPPER HINGE
2.11.6 - VIEW OF DOOR REMOVAL
To remove the oven door:
- Remove the upper hinge.
- Extract the door upwards and outwards (see Fig. 185).
Fig. 185
1 - CONTROL PANEL
FRONT PANEL
2 - OVEN DOOR
