2.6.2.2 - ELECTROMECHANICAL PYRO VERSION

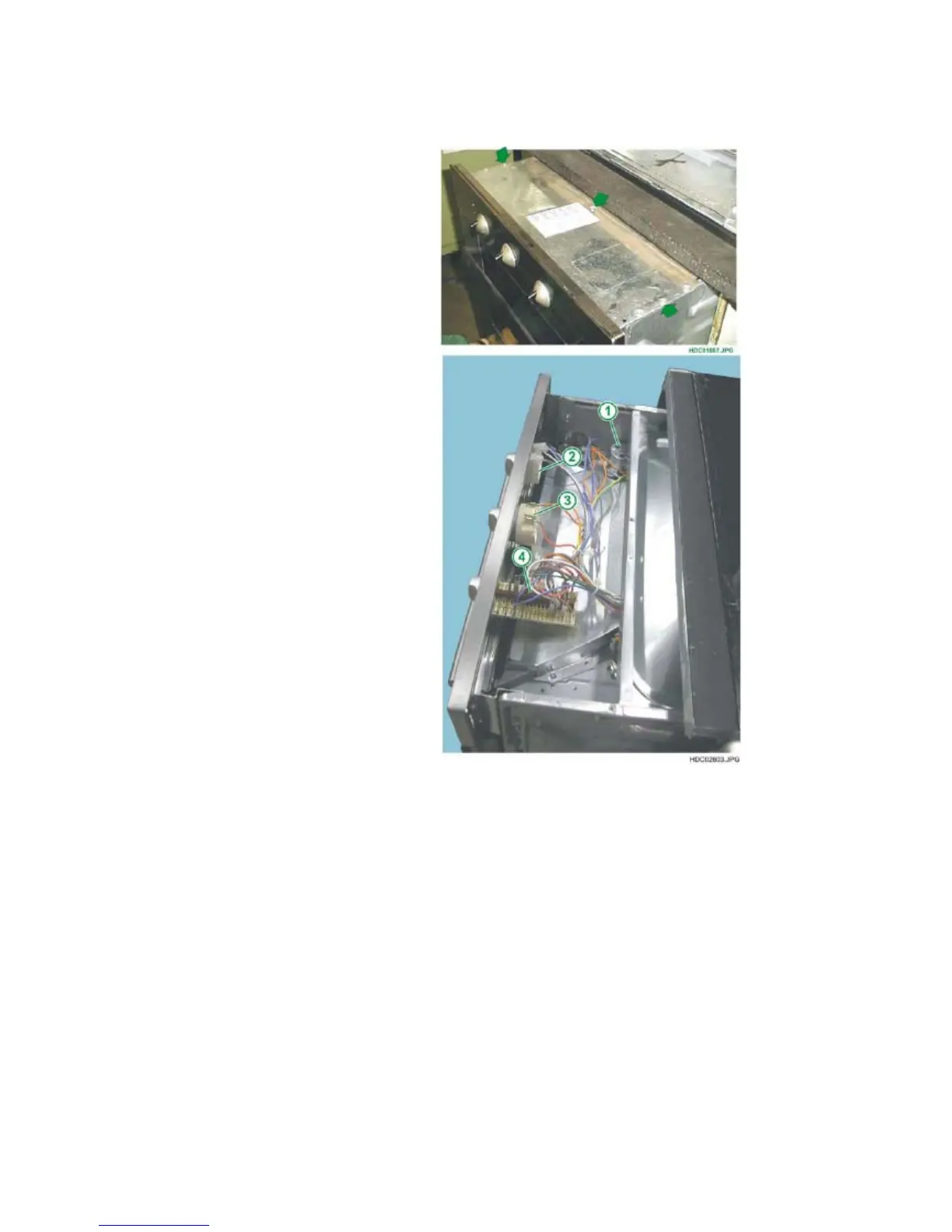

1 - Unfasten the 3 fixing screws on the upper panel
Fig. 83
Upper panel fixing screws
Fig. 84
1 - DOOR LOCK
2 - OVEN THERMOSTAT
3 - END-OF-COOKING
PROGRAMMER
4 - FUNCTION SELECTOR
When removing a control component: oven thermostat, function selector, end-of-cooking
programmer, indicator lights, etc.
1 - Remove the control panel front panel (see chapter 2.3 entitled REMOVING THE
CONTROL PANEL).
2 - Detach the connection wires of the component, marking their position
3 - Remove the fixing screws of the component (see chapter 2.3 entitled REMOVING THE
CONTROL PANEL).
4 - Remove the component.
N.B.: From January 2010 (serial number 001….) access to the top of the oven has improved
thanks to the progressive introduction of a new one-piece top oven cover (see chapter 2.6.1).
