2.9.3 - REMOVING THE "METAL-GLASS" PYRO OVEN DOOR HANDLE
Once you have removed the external door glass, you can access the fixing screws for the door
handle (see Fig. 162 Pos. 2).

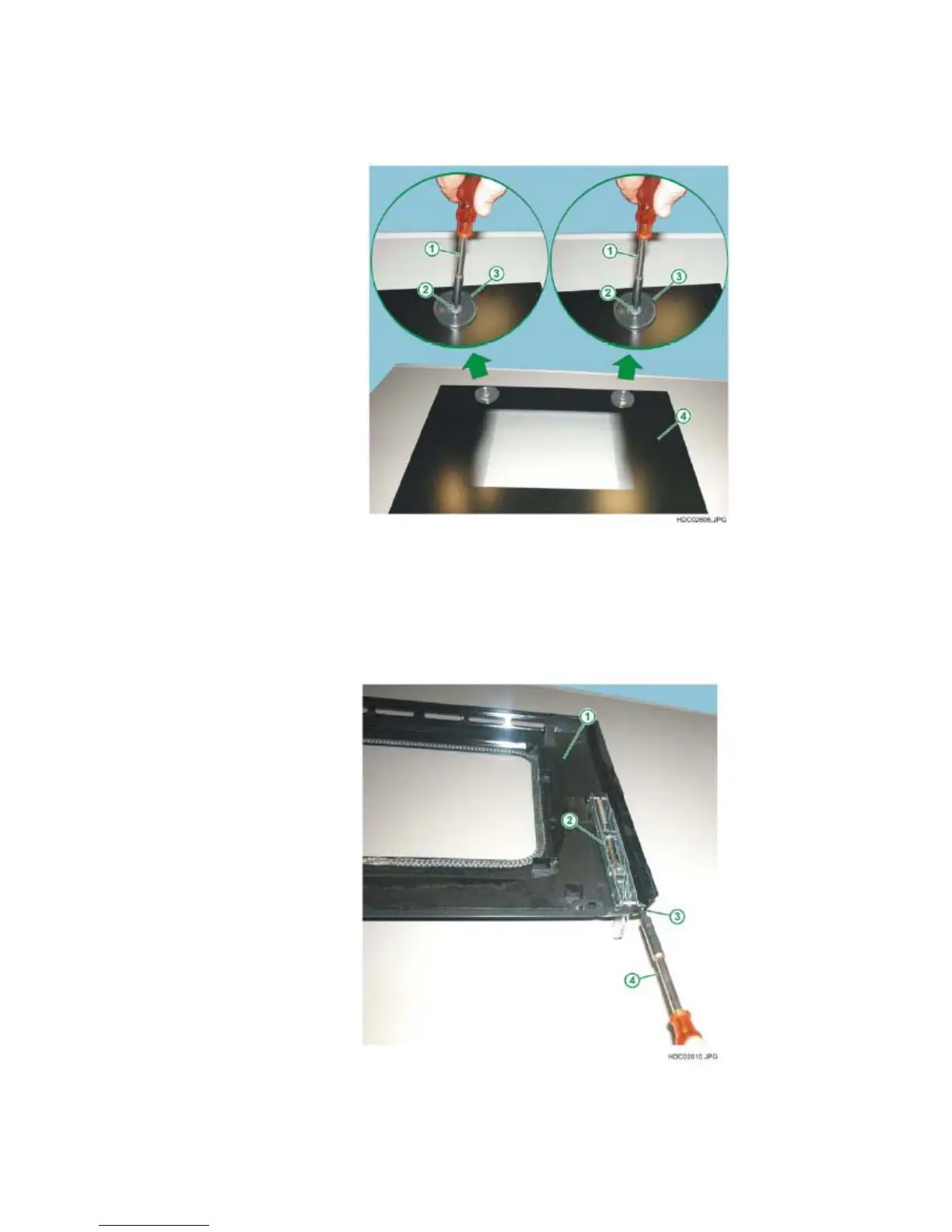

Fig. 162
1 - TORX SCREWDRIVER
2 - FIXING SCREWS
FOR DOOR HANDLE
3 - METAL SUPPORTS
TO SECURE
INNER DOOR
4 - DOOR EXTERNAL
GLASS
2.9.4 - REMOVING THE "METAL-GLASS" PYRO OVEN DOOR HINGES
Once you have removed the external glass from the door, you can access the door hinges.
To remove the hinges:
1 - Unfasten the hinge fixing screw (see Fig. 163).
2 - Slide the hinge off the retainer hooks.
Fig. 163
1 - INNER DOOR
2 - DOOR HINGE
3 - FIXING SCREW -
HINGE
4 - TORX SCREWDRIVER
