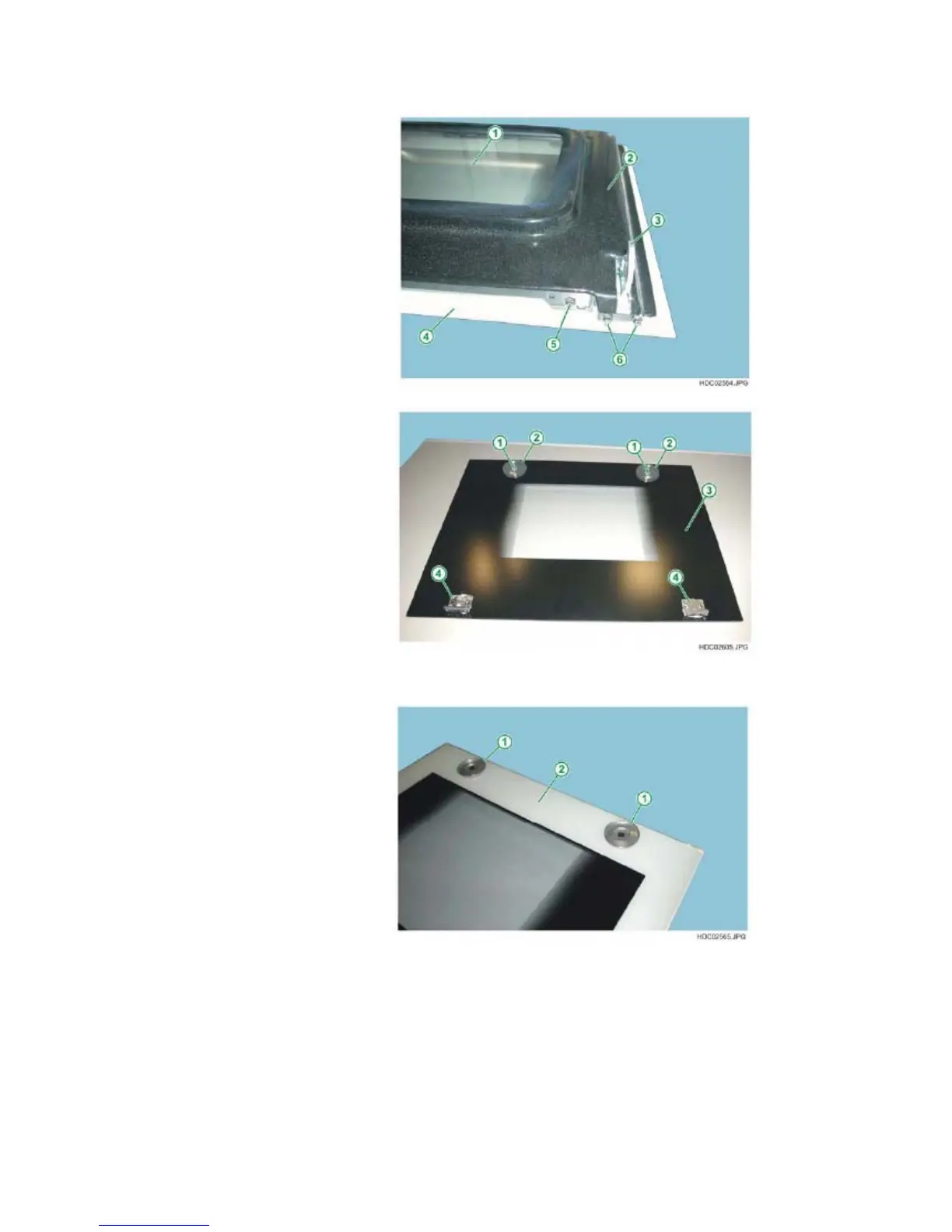

DETAIL OF FIXING THE EXTERNAL GLASS AND HINGE
Fig. 150
1 - DOOR INTERNAL GLASS
2 - INNER DOOR
3 - OVEN HINGE (LEFT)
4 - DOOR EXTERNAL GLASS
5 - FIXING SCREW FOR
EXTERNAL GLASS
6 - FIXING SCREWS
FOR LEFT HINGE
Fig. 151
1 - FIXING SCREWS
FOR DOOR HANDLE
2 - METAL SUPPORTS
TO SECURE INNER DOOR
3 - DOOR EXTERNAL GLASS
4 - METAL FIXING BRACKETS
TO SECURE THE INNER
DOOR
DETAIL OF FIXING THE EXTERNAL GLASS
AT THE TOP
Fig. 152
1 - METAL SUPPORTS
TO SECURE INNER DOOR
2 - DOOR EXTERNAL GLASS
