Electrolux Built-in ovens - REMOVING the REAR PANEL (Various Components and Lampholder); Rear View of Normal Oven

SOI 02.10 FV 25/142 599 70 59-01
2.4 - REMOVING THE REAR PANEL (various components and lampholder)
In order to remove the rear panel, simply remove the two upper screws.
Once the rear panel has been removed, the following components are accessible: the lampholder,
the various heating elements, the convection fan motor and the terminal board with cable clamp.

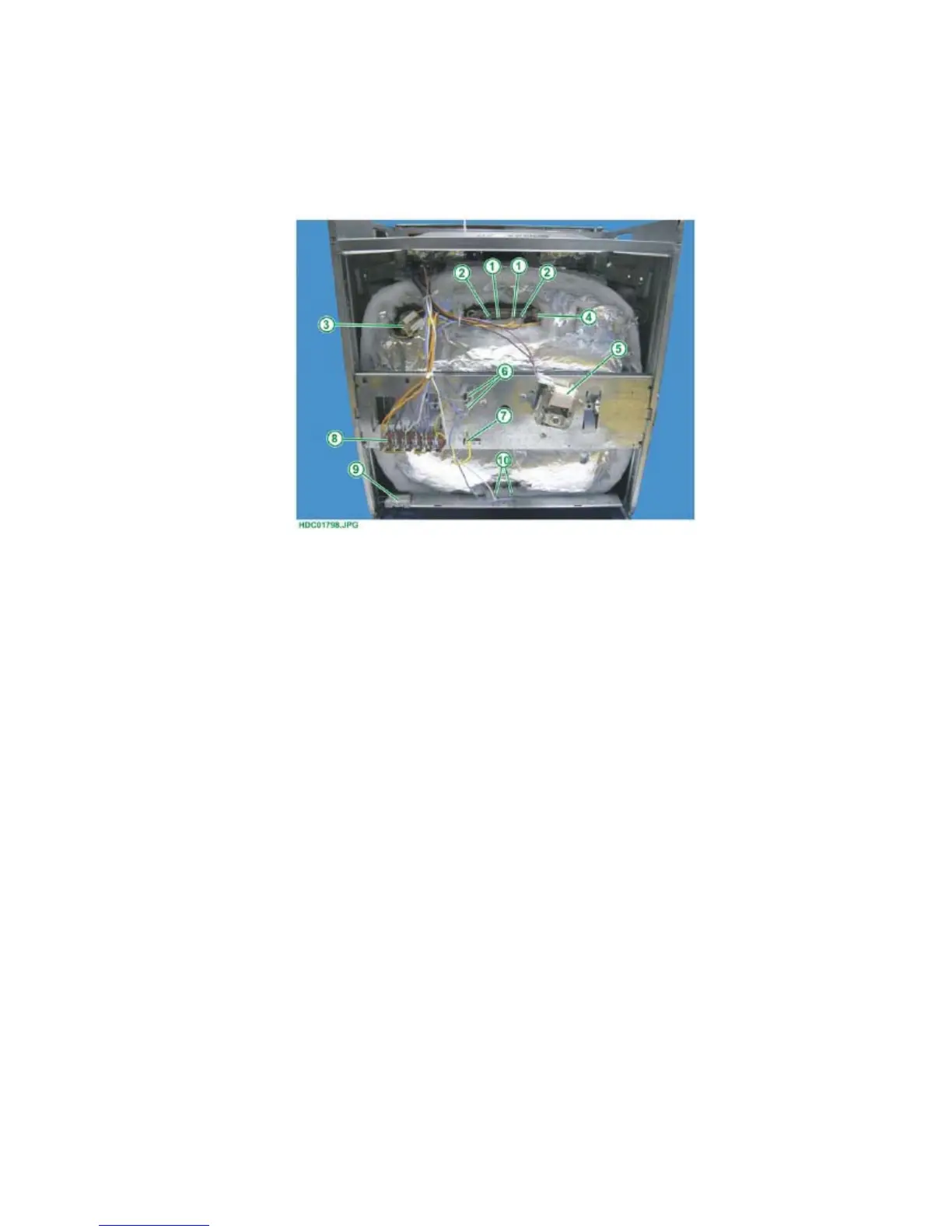

2.4.1 - REAR VIEW OF NORMAL OVEN
Fig. 48
1 - GRILL HEATING ELEMENT
2 - TOP PANEL HEATING
ELEMENT
3 - LAMPHOLDER
4 - COOLING FAN
CONTROL
THERMOSTAT
5 - CONVECTION FAN
6 - CONVECTION HEATING ELEMENT
7 - EARTH CONNECTION
8 - TERMINAL BOARD
9 - CABLE CLAMP
10 - BOTTOM HEATING ELEMENT
