SOI 02.10 FV 55/142 599 70 59-01
2.6.3.3 - REMOVING THE TANGENTIAL FAN ON ELECTRONIC VERSION WITH HOB
CONTROLS
To remove one of the components:
1 - Unfasten the fixing screws on the upper panel.
2 - Detach the connection wires for the tangential cooling fan
(or thermostat).
3 - Unfasten the fixing screws on the fan (or thermostat).
4 - Extract the component.

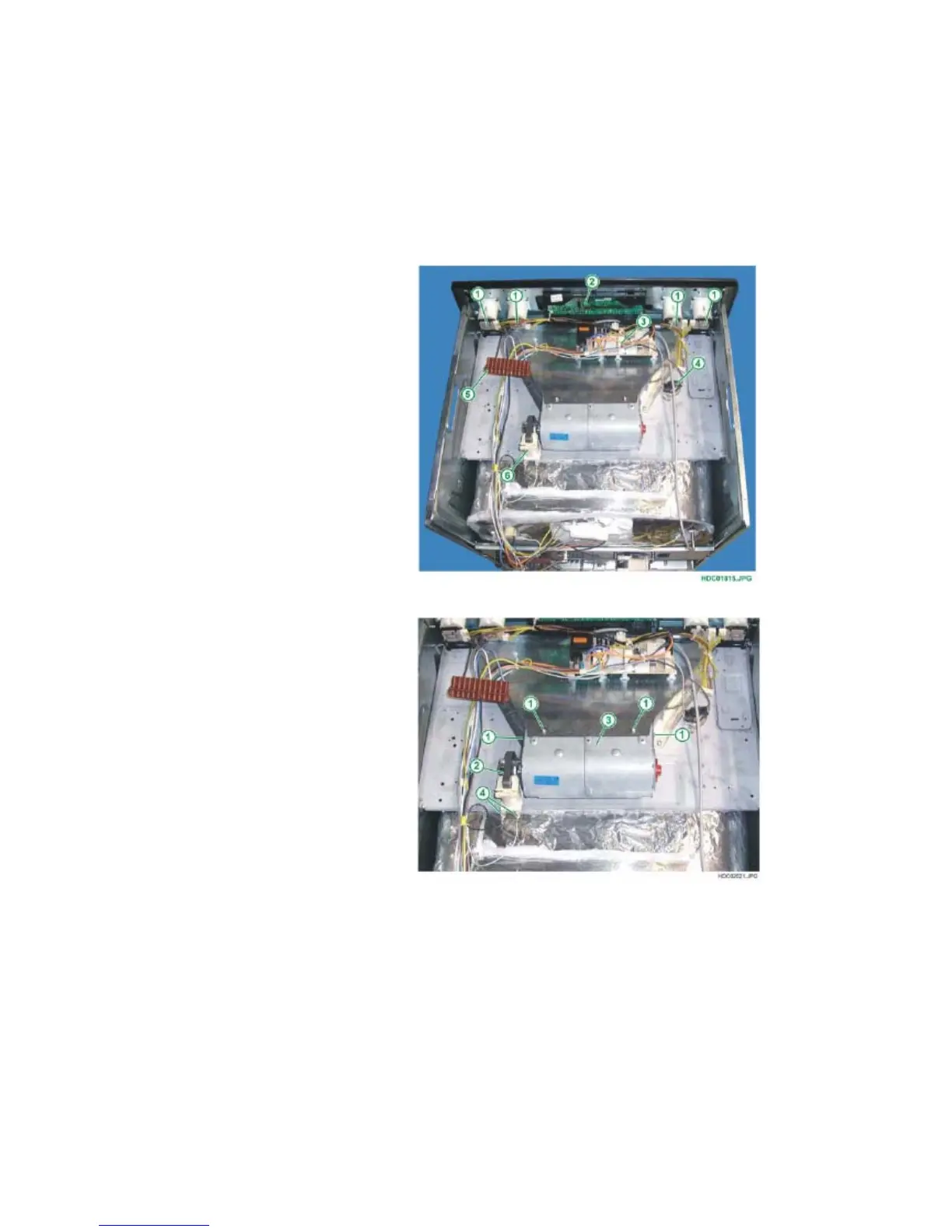

Fig. 103
1 - HOB HOTPLATE
CONTROL
2 - KRONOS CONTROL
UNIT BOARD
3 - POWER BOARD
OVC1000
4 - SAFETY THERMOSTAT
5 - CONNECTOR FOR
HOB CONNECTION
6 - COOLING FAN
Fig. 104
1 - FIXING SCREWS FOR
COOLING FAN
2 - FAN MOTOR
3 - FAN BODY
4 - ELECTRICAL CONTACTS FOR
CONNECTION
