Electrolux Built-in ovens - Rear View of Electromechanical Pyrolytic Oven

SOI 02.10 FV 27/142 599 70 59-01

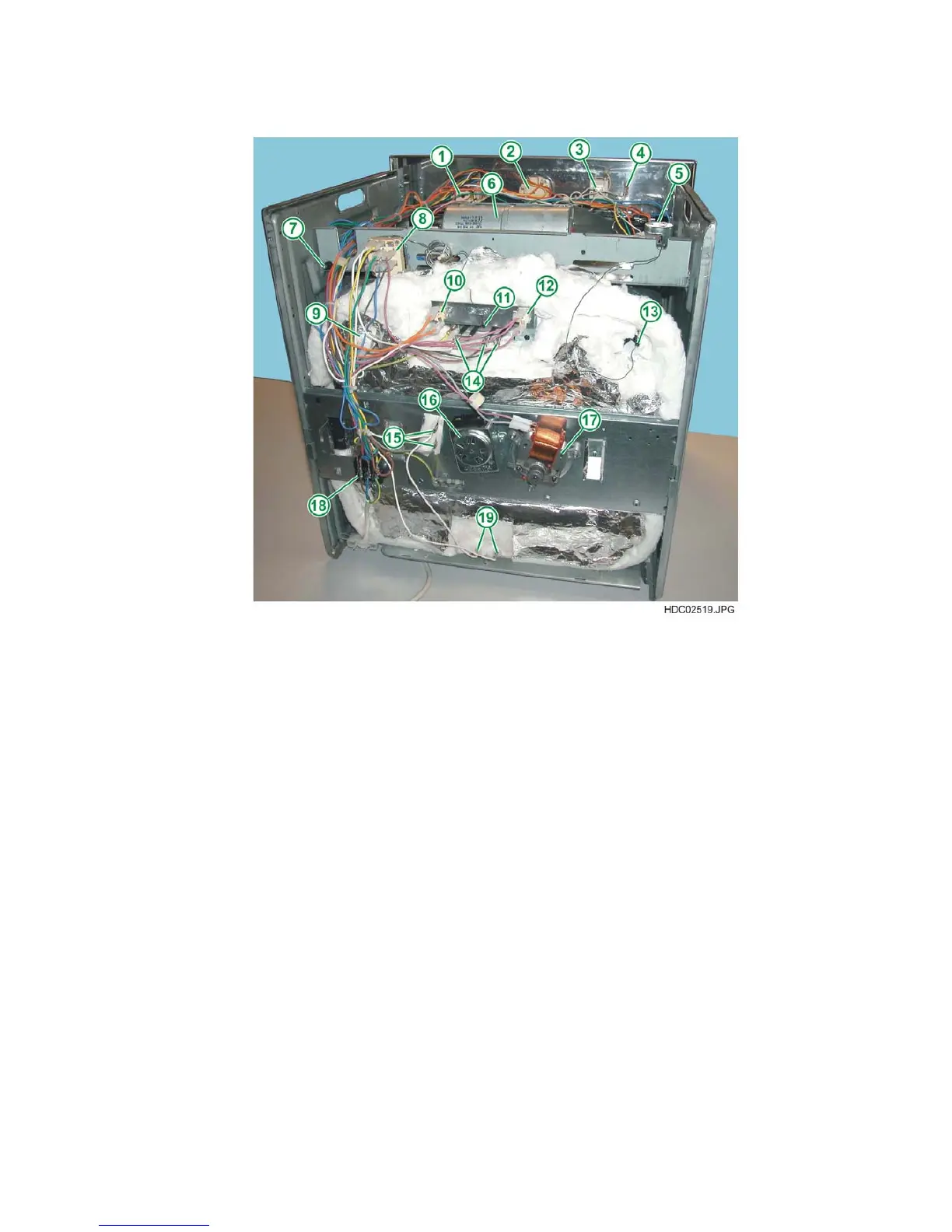

2.4.3 - REAR VIEW OF ELECTROMECHANICAL PYROLYTIC OVEN
Fig. 50
1 - FUNCTION SELECTOR
2 - TIMER
3 - OVEN THERMOSTAT
4 - THERMOSTAT INDICATOR LIGHT
5 - DOOR LOCK
6 - COOLING FAN
7 - FACTORY TEST BUTTON /
SERVICE
8 - PYROLYSIS MULTIPLE THERMOSTAT
9 - LAMPHOLDER
10 - FAN THERMOSTAT
11 - PYROLYSIS THERMOSTAT SENSOR
12 - DOOR LOCK
SAFETY THERMOSTAT
13 - OVEN THERMOSTAT SENSOR
14 - ELECTRICAL CONTACTS OF GRILL-
TOP HEATING ELEMENT
15 - ELECTRICAL CONTACTS OF CONVECTION
HEATING ELEMENT
16 - SPIT MOTOR
17 - CONVECTION MOTOR
18 - TERMINAL BOARD
19 - ELECTRICAL CONTACTS OF BOTTOM
HEATING ELEMENT
