Electrolux Built-in ovens Service Manual

SOI 02.10 FV 72/142 599 70 59-01

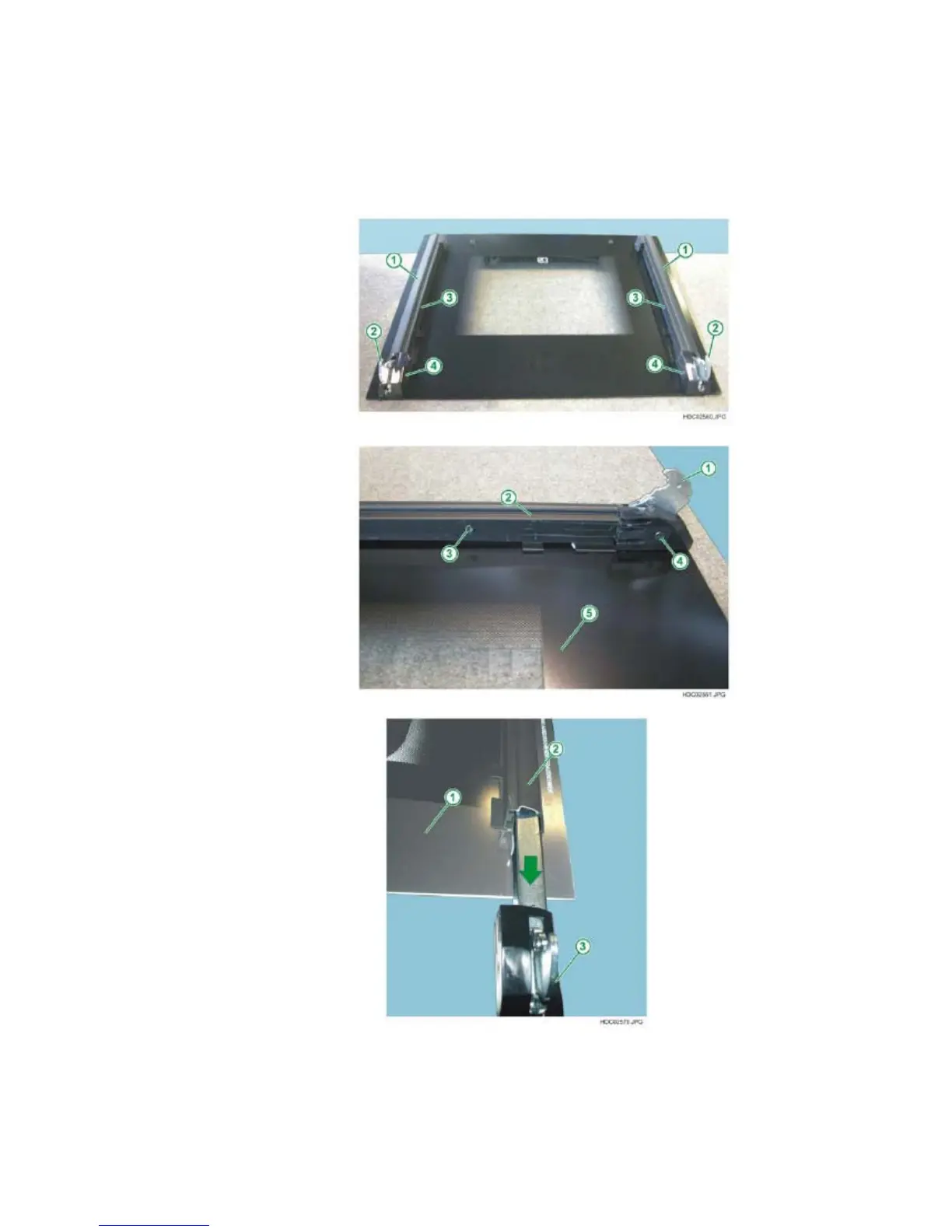

2.8.4 - REMOVING THE "ALL GLASS" PYRO OVEN DOOR HINGES
Once you have removed the internal glazing as explained in the previous chapters:
1 - Remove the two fixing screws of the hinge-hinge cover assembly inside the side door uprights
(see Fig. 141 and 142).
2 - Slide off the hinge-hinge cover assembly (see Fig. 143).
Fig. 141
1 - SIDE UPRIGHTS
2 - LEFT OVEN HINGES
3 - FIXING SCREWS
FOR HINGES
4 - FIXING SCREWS
FOR HINGE COVERS
Fig. 142
1 - OVEN HINGE
2 - SIDE UPRIGHT
3 - FIXING SCREWS
FOR HINGE
4 - FIXING SCREW -
FOR HINGE COVER
5 - DOOR EXTERNAL
GLASS
Fig. 143
1 - DOOR EXTERNAL GLASS
2 - SIDE UPRIGHT
3 - OVEN HINGE ASSEMBLY
