SOI 02.10 FV 124/142 599 70 59-01
3.3 - REPOSITIONING THE “REED” LEVEL INDICATOR SWITCHES
When repositioning the REED switches in their respective silicone rubber support and when
repositioning the assembly in the tank, make sure that when re-assembly is complete, the REED
switch is fully inserted (see Fig. 259).
If the switch is only partially inserted (see Fig. 258), this could result in false empty or full water
level indications.

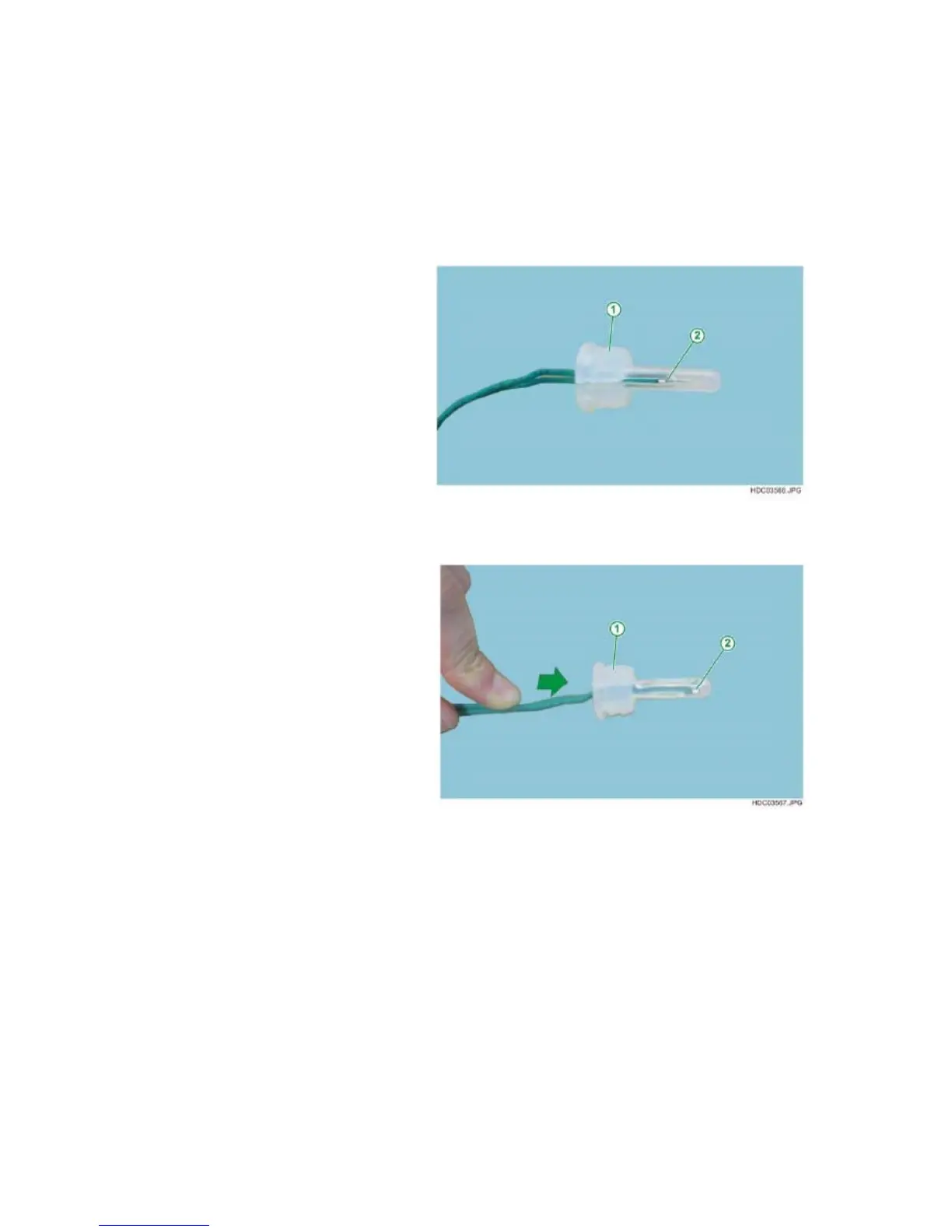

“REED” SWITCH INSERTED INCORRECTLY
Fig. 258
1 - SILICONE RUBBER SUPPORT
2 - “REED” SWITCH
“REED” SWITCH INSERTED CORRECTLY
Fig. 259
1 - PLASTIC SILICONE SUPPORT
2 - “REED” SWITCH
