SOI 02.10 FV 123/142 599 70 59-01

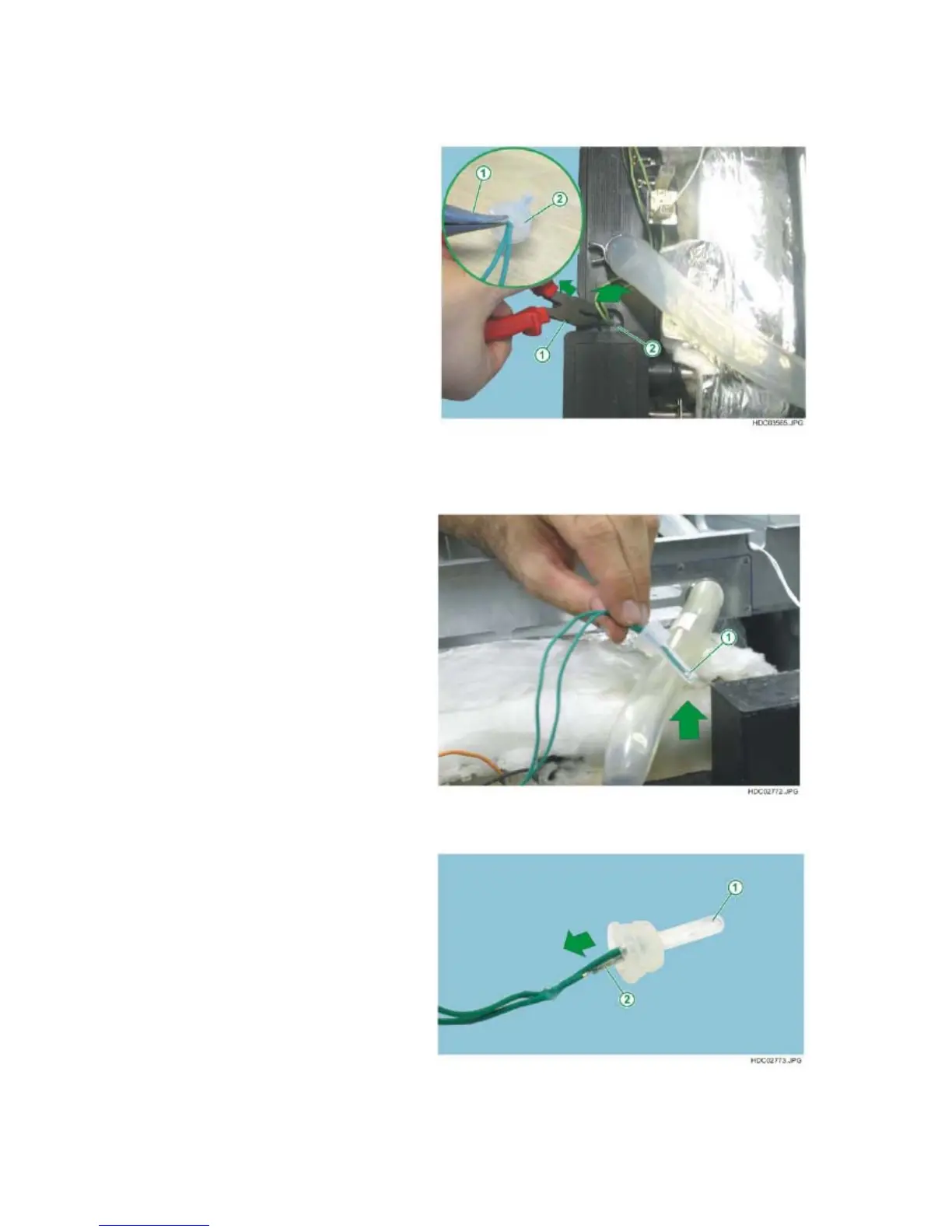

2 - Extract the rubber support for the REED switches using long-nose pliers
(see Fig. 255).
Fig. 255
1 - LONG-NOSE PLIERS
4 - REED SWITCH SUPPORT
FULL INDICATION
3 - Slide the REED switch + rubber support assembly out from the related housings
(see Fig. 256).
Fig. 256
1 - “REED” SWITCH
4 - Slide the REED switches off the rubber supports (see Fig. 257).
Fig. 257
1 - PLASTIC SILICONE SUPPORT
2 - “REED” SWITCH
