Electrolux Built-in ovens Service Manual

SOI 02.10 FV 81/142 599 70 59-01
2.10 - REMOVING THE "PLASTIC" OVEN DOOR
The procedure for the removal of the oven door remains the same as in the previous models.
To remove the oven door:
1 - Open the door completely.
2 - Raise the two hinge retainers (see Fig. 164, 165 and 166).
3 - Slide the door off upwards.

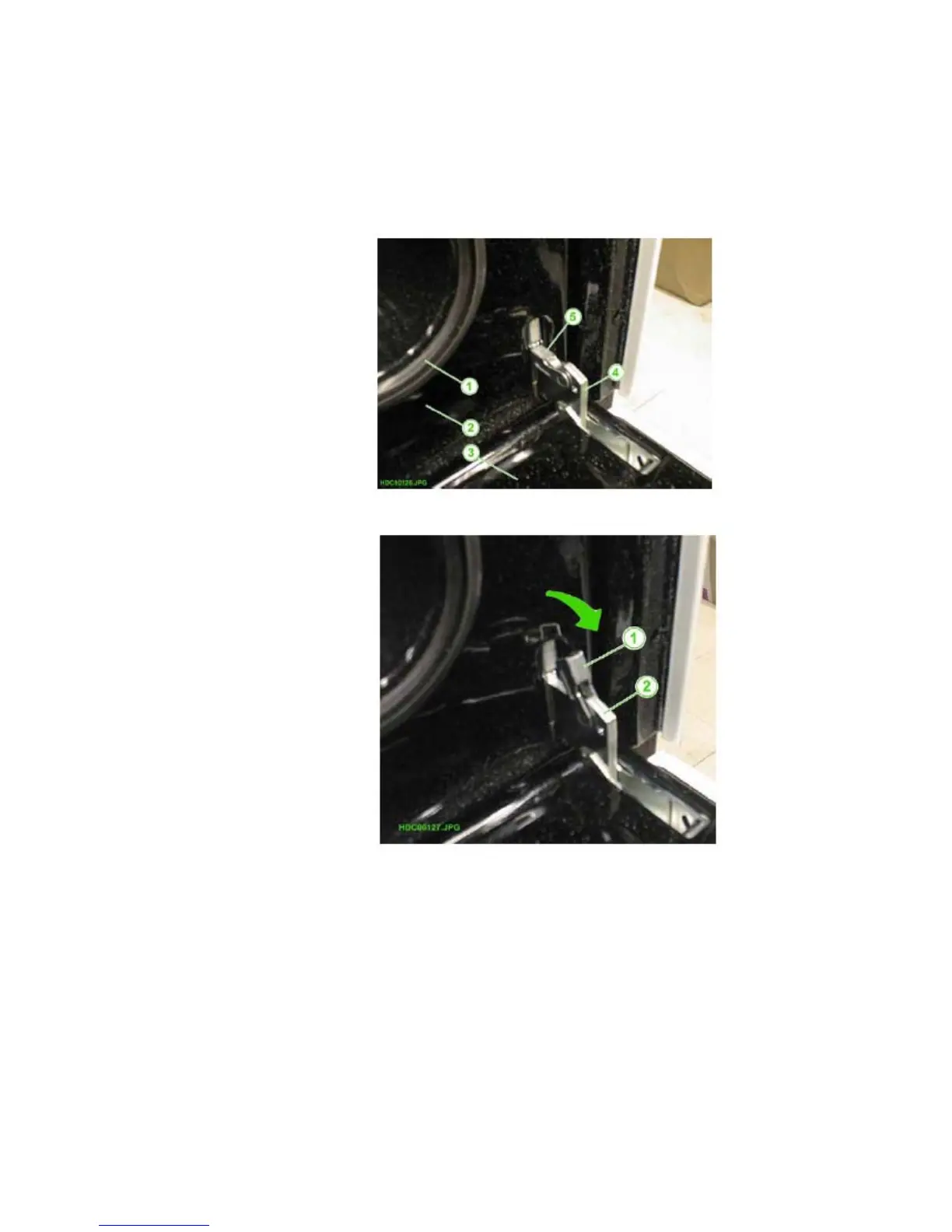

Fig. 164
1 - FRONT SEAL
2 - OVEN FRONT PANEL
3 - DOOR INTERIOR
4 - OVEN HINGE
5 - HINGE RETAINER
FOR HINGE
Fig. 165
1 - HINGE RETAINER
FOR HINGE
(RAISED)
2 - OVEN HINGE
