2.10.1 - REMOVING THE "PLASTIC" OVEN DOOR INTERNAL GLASS

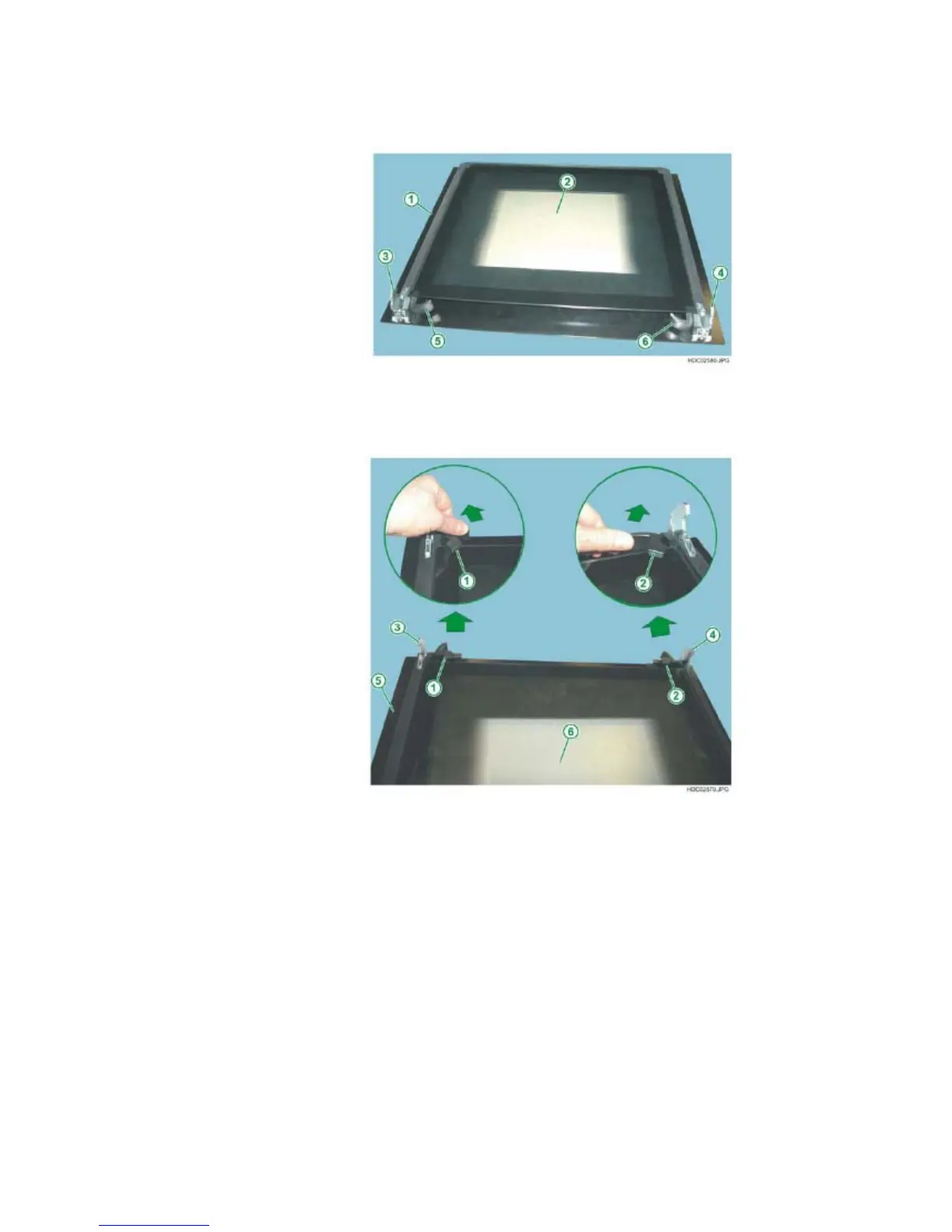

The door internal glass is secured in place using special retainer hooks (see Fig. 168).
Fig. 168
1 - EXTERNAL DOOR
GLASS
2 - INTERNAL DOOR
GLASS
3 - RIGHT HINGE
4 - LEFT HINGE
5 - RIGHT GLASS
RETAINER HOOK
6 - LEFT GLASS
RETAINER HOOK
To remove the door internal glass, once you have removed the oven door:
1 - Open the glass retainer hooks on the lower part of the inner door (see Fig. 169 Pos. 1 and 2).
Fig. 169
1 - LEFT GLASS
RETAINER HOOK
2 - LEFT GLASS
RETAINER HOOK
3 - DOOR HINGE - LEFT
4 - DOOR HINGE - RIGHT
4 - EXTERNAL DOOR
GLASS
5 - INTERNAL DOOR
GLASS
