SOI 02.10 FV 114/142 599 70 59-01
2.17.5 - REMOVING THE GAS SUPPLY PIPES
To remove the gas supply pipes, once you have extracting the oven from its built-in compartment,
just unscrew the pipe fixing nuts using a 12 mm key for the burner
and a 15 mm one for the cock (see Fig. 236 and 237).

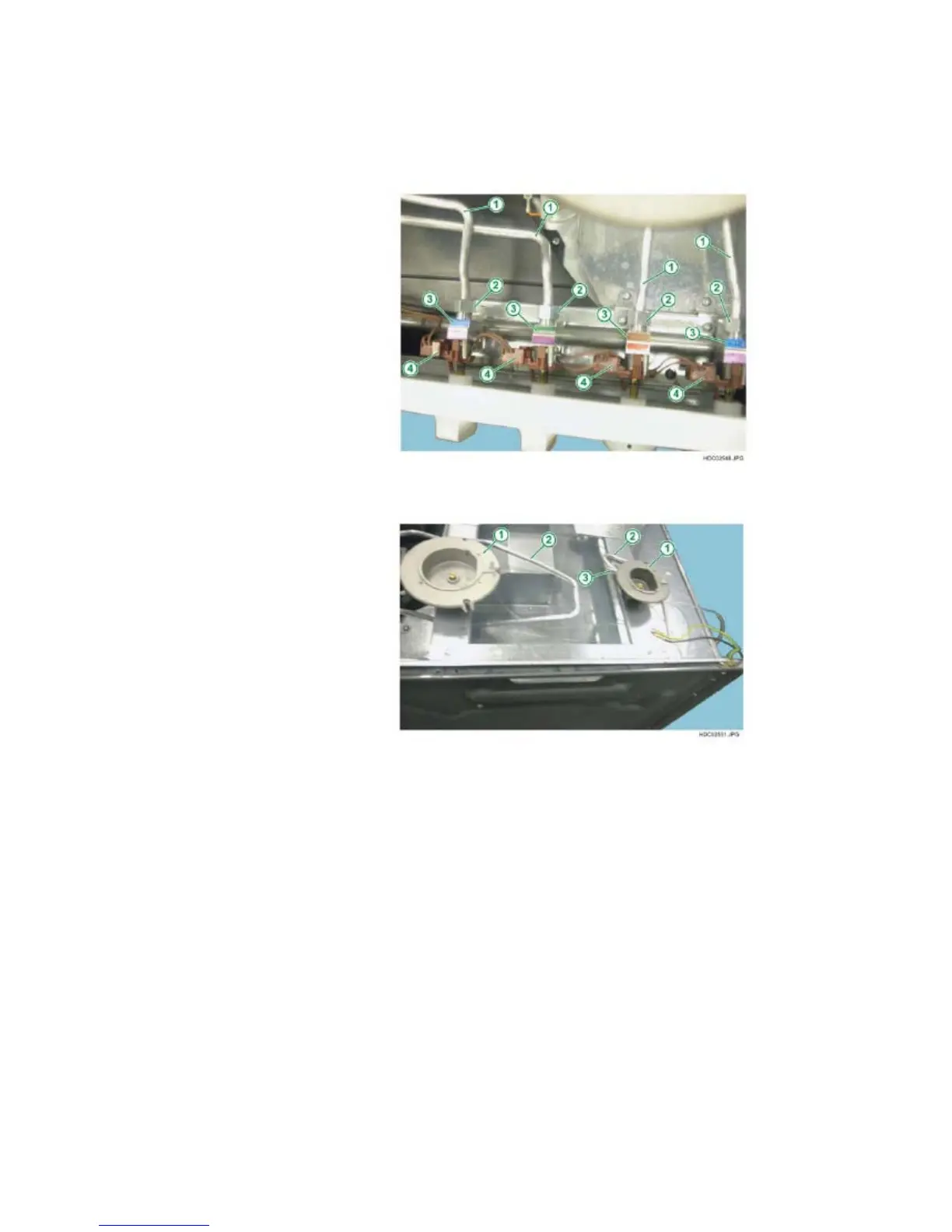

Fig. 236
1 - GAS SUPPLY PIPES
2 - PIPE-COCK FIXING NUT
(15 mm)
3 - GAS COCK
4 - BURNER IGNITION MICRO
Fig. 237
1 - GAS BURNERS
2 - GAS SUPPLY PIPES
3 - PIPE-COCK FIXING NUT
(12 mm)
IMPORTANT: After positioning the gas supply pipes, perform a test to check for any possible gas
leaks.
