SOI 02.10 FV 109/142 599 70 59-01
2.17 - GAS HOB SECTION WITH FLEXIBLE PIPES
The gas hob with flexible pipes is positioned in the upper part of the oven.
To access the components of the hob and the upper components of the oven, it is necessary to
extract the hob-oven assembly from its built-in compartment.

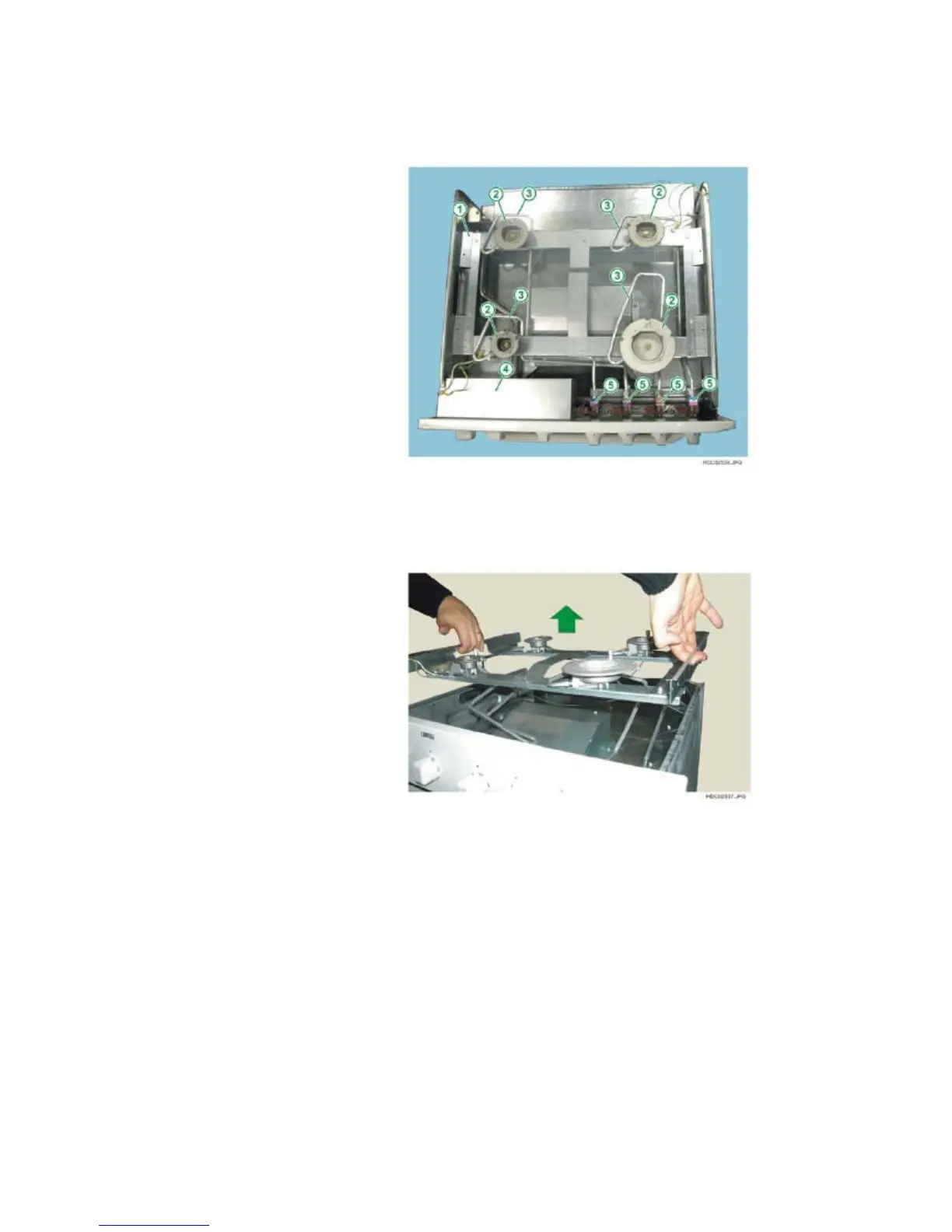

Fig. 224
1 - GAS HOB FRAME
2 - GAS BURNER
3 - BURNER SUPPLY PIPE
4 - CONTROL PROTECTION
BOX
5 - GAS COCK
2.17.1 - HOB EXTENSION
The flexibility of the gas supply pipes for the gas hob makes it possible to extend the hob upwards
in order to adapt it to the built-in compartment.
Fig. 225
