3.4 - REMOVING THE WATER TANK
To remove the water tank:
1 - Remove the tank + steam generator assembly (see chapter 3.1).

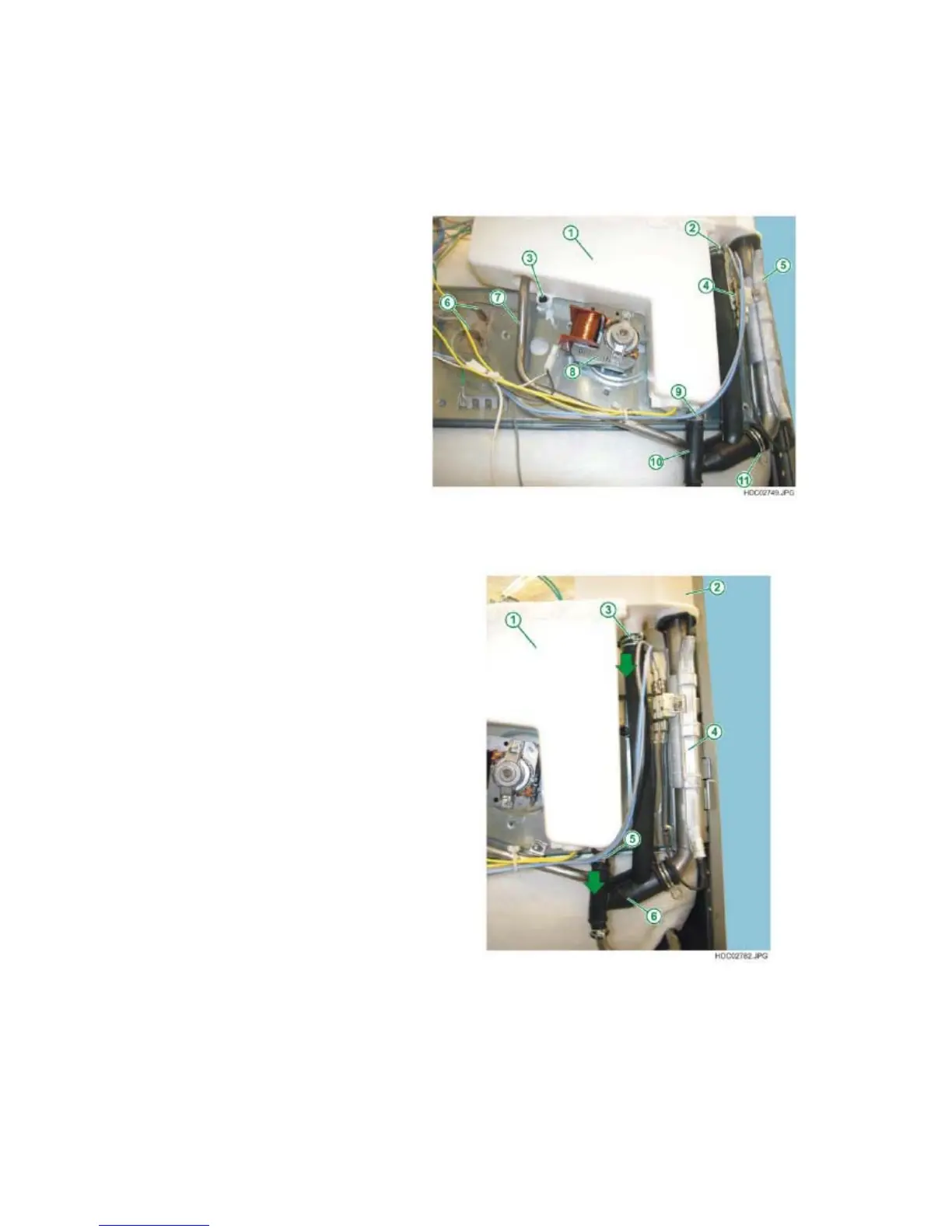

Fig. 260
1 - WATER TANK
2 - FIXING CLAMP -
SILICONE CONNECTION -
EXPANSION CHAMBER
3 - FIXING SCREW - TANK
4 - THERMOSTAT ASSEMBLY -
STEAM GENERATOR
5 - STEAM GENERATOR
6 - ELECTRICAL CONTACTS
FOR CONVECTION HEATING
ELEMENT
7 - OVERFLOW PIPE
8 - CONVECTION FAN MOTOR
9 - FIXING CLAMP - SILICONE
CONNECTION - TANK
10 - SILICONE CONNECTION
11 - FIXING CLAMP -
SILICONE CONNECTION -
STEAM GENERATOR
2 - Slide off the silicone connection from the tank, releasing the fixing clamps with pliers
(see Fig. 261).
Fig. 261
1 - WATER TANK
2 - EXPANSION CHAMBER
3 - FIXING CLAMP - SILICONE
CONNECTION - EXPANSION
CHAMBER
4 - STEAM GENERATOR.
5 - FIXING CLAMP - SILICONE
CONNECTION - TANK.
6 - SILICONE CONNECTION
