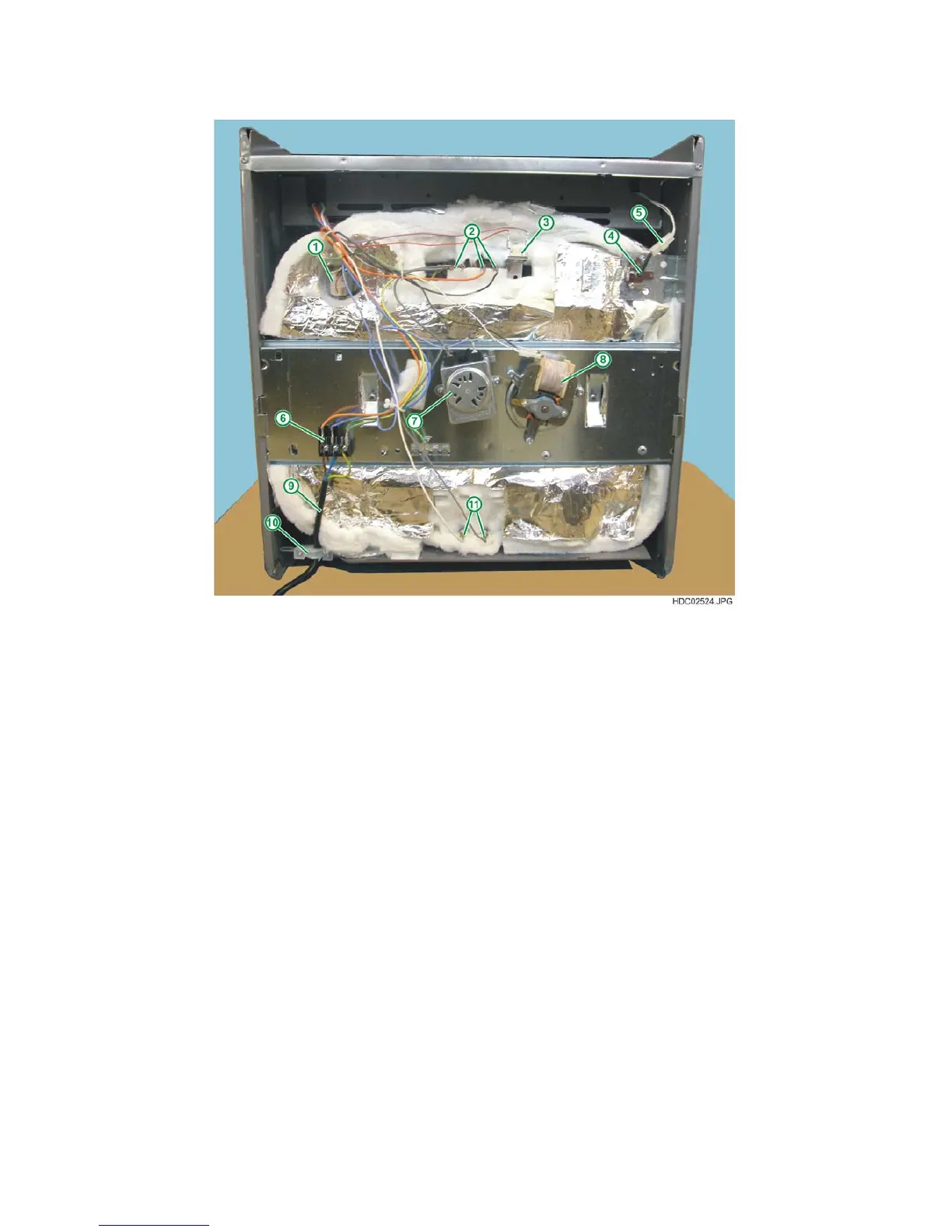

2.4.2 - REAR VIEW OF ELECTRONIC PYROLYTIC OVEN
Fig. 49
1 - LAMPHOLDER
2 - ELECTRICAL CONTACTS OF GRILL-
TOP HEATING ELEMENT
3 - DOOR LOCK
SAFETY THERMOSTAT
4 - TEMPERATURE SENSOR PT500
5 - SENSOR CONNECTOR
6 - TERMINAL BOARD
7 - SPIT MOTOR
8 - CONVECTION MOTOR
9 - POWER SUPPLY CABLE
10 - CABLE CLAMP
11 - ELECTRICAL CONTACTS OF BOTTOM
HEATING ELEMENT
