2.6.3.6 - REMOVING THE TANGENTIAL FAN ON ELECTRONIC
PYRO VERSION WITH HOB CONTROLS
To remove one of the components:
1 - Unfasten the fixing screws on the upper panel.
2 - Detach the connection wires for the tangential cooling fan
(or thermostat).
3 - Unfasten the fixing screws on the fan (or thermostat).
4 - Extract the component.

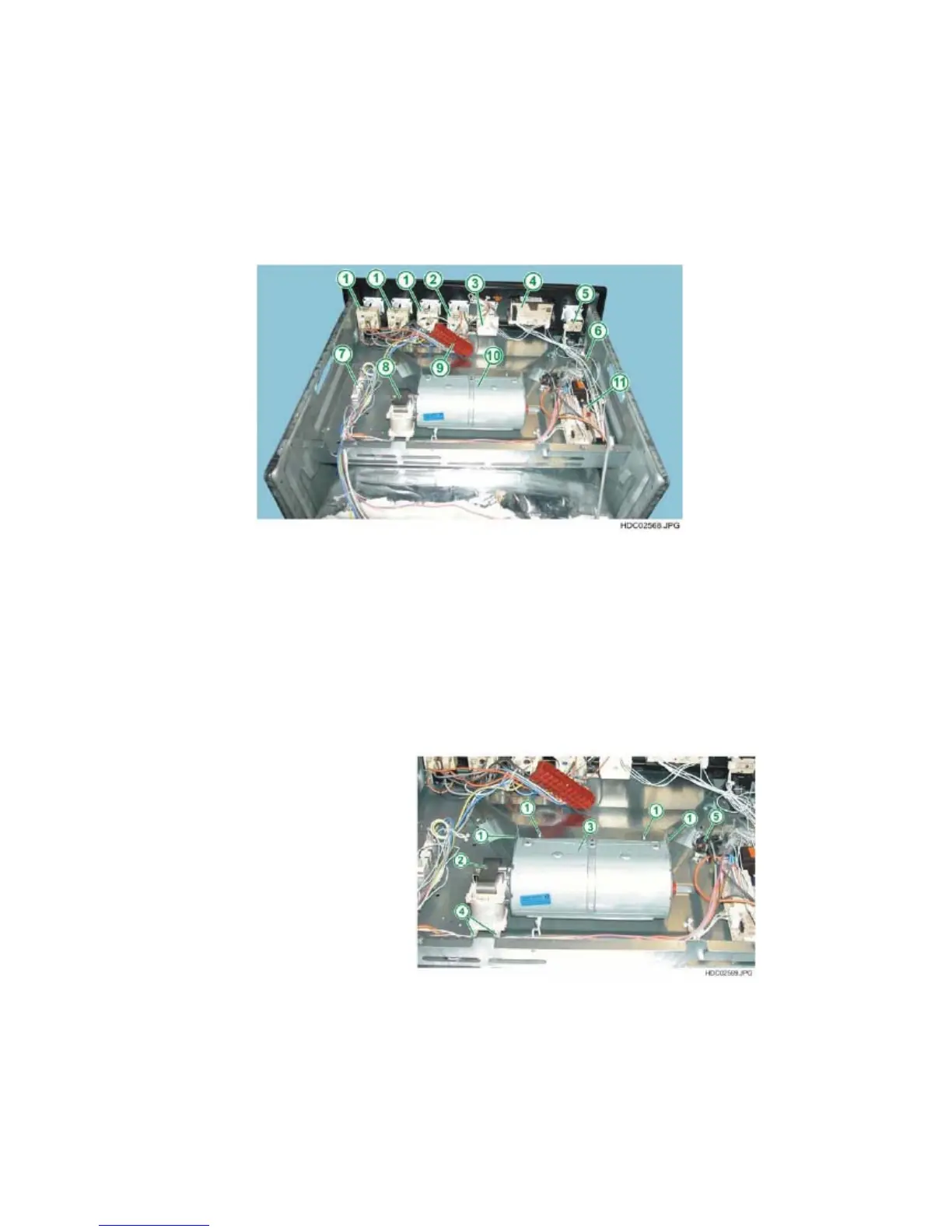

Fig. 109
1 - NORMAL ENERGY REGULATORS
2 - DOUBLE ENERGY REGULATOR
3 - FUNCTION SELECTOR
4 - RHEA ELECTRONIC PROGRAMMER
5 - TEMPERATURE CONTROL POTENTIOMETER
6 - DOOR LOCK
7 - DROP RESISTOR
8 - FAN MOTOR
9 - CONNECTOR FOR CONNECTION TO HOB
10 - COOLING FAN
11 - OVC1000 POWER BOARD
Fig. 110
1 - FIXING SCREWS FOR
COOLING FAN
2 - COOLING FAN MOTOR
3 - FAN BODY
4 - ELECTRICAL CONTACTS FOR
CONNECTION
5 - DOOR LOCK
SAFETY THERMOSTAT
