2.8 - REMOVING THE “ALL GLASS” PYROLYTIC OVEN DOOR
The procedure for the removal of the oven door remains the same as in the previous models.
To remove the oven door:
1 - Open the door completely.
2 - Raise the two hinge retainers (see Fig. 125, 126 and 127).
3 - Slide the door off upwards.

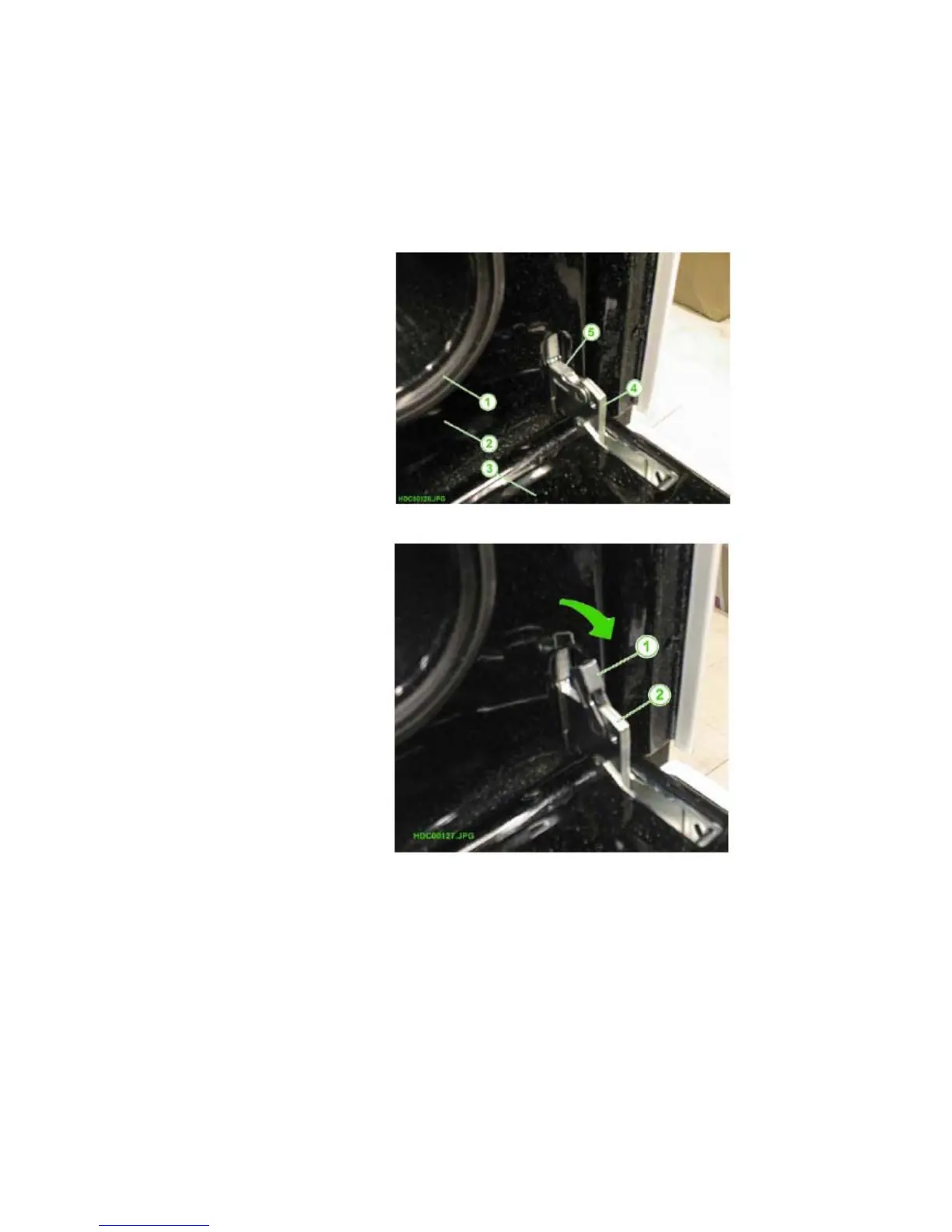

Fig. 125
1 - FRONT SEAL
2 - OVEN FRONT PANEL
3 - DOOR INTERIOR
4 - OVEN HINGE
5 - HINGE RETAINER HOOK
Fig. 126
1 - HINGE RETAINER
HOOK (RAISED)
2 - OVEN HINGE
