2.6.2.6 - ELECTRONIC PYRO VERSION WITH HOB CONTROLS
In the version with hob controls, after unscrewing the screws of the upper panel, to remove a
control component: oven thermostat, function selector, hob energy regulators, indicator lights, etc.
1 - Remove the control panel front piece (see chapter 2.4 entitled REMOVING THE CONTROL
PANEL depending on the styling).
2 - Detach the connection wires of the component, marking their position
3 - Remove the fixing screws of the component (see chapter 2.4 entitled REMOVING THE
CONTROL PANEL depending on the styling).
4 - Remove the component.

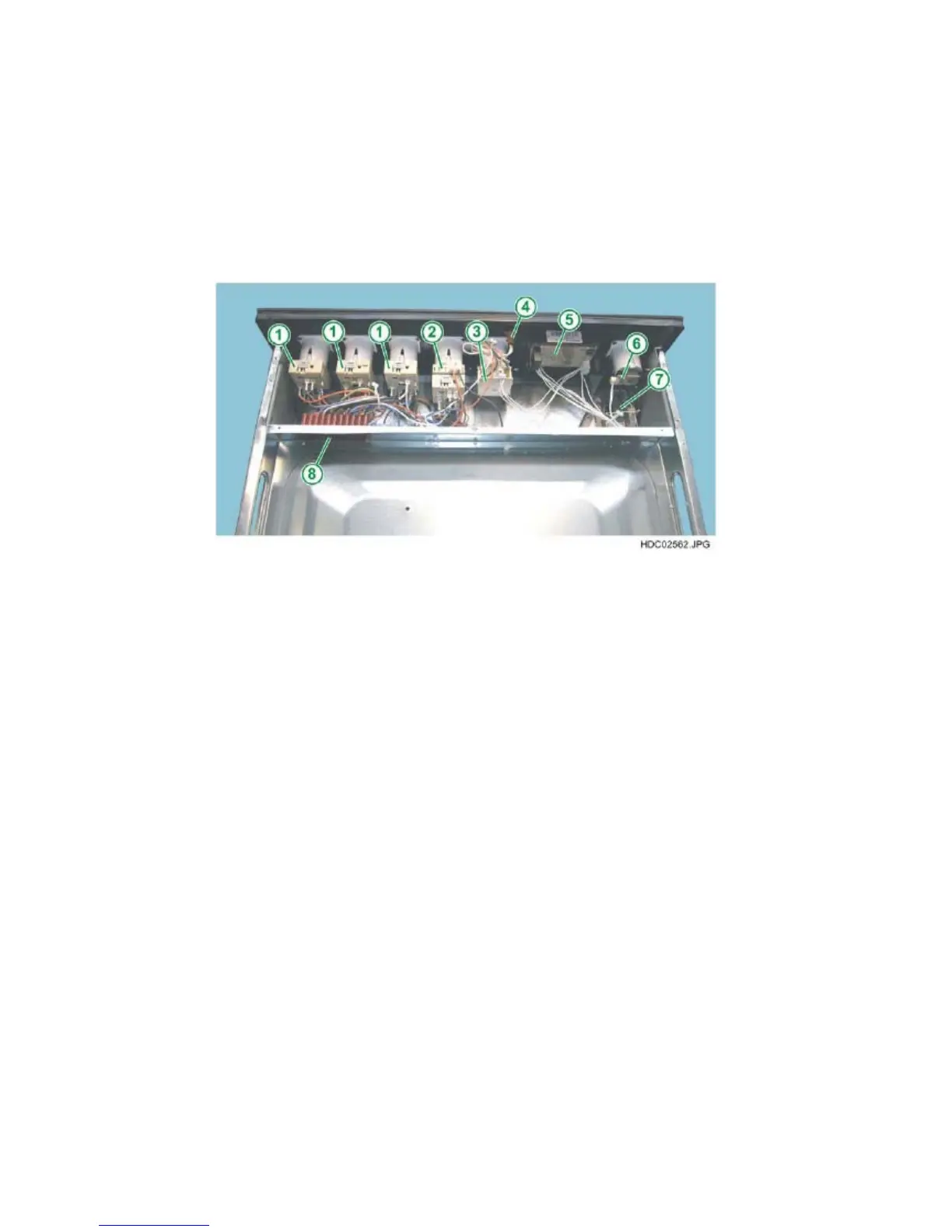

Fig. 91
1 - NORMAL ENERGY REGULATORS FOR THE HOB
2 - DOUBLE ENERGY REGULATOR FOR THE HOB
3 - OVEN FUNCTION SELECTOR
4 - INDICATOR LIGHTS
5 - RHEA ELECTRONIC PROGRAMMER
6 - TEMPERATURE CONTROL POTENTIOMETER
7 - DOOR LOCK FOR PYROLYSIS
8 - CONNECTION CONNECTOR FOR THE HOB
N.B.: From January 2010 (serial number 001….) access to the top of the oven
has improved thanks to the progressive introduction of a new one-piece top oven
cover (see chapter 2.6.1).
