Electrolux Built-in ovens - Removing the Bottom Heating Element; Removing the Spit Motor

SOI 02.10 FV 31/142 599 70 59-01
2.4.6 - REMOVING THE BOTTOM HEATING ELEMENT
To remove the bottom heating element, once you have removed the rear panel:
1. Detach the connection cables from the bottom heating element

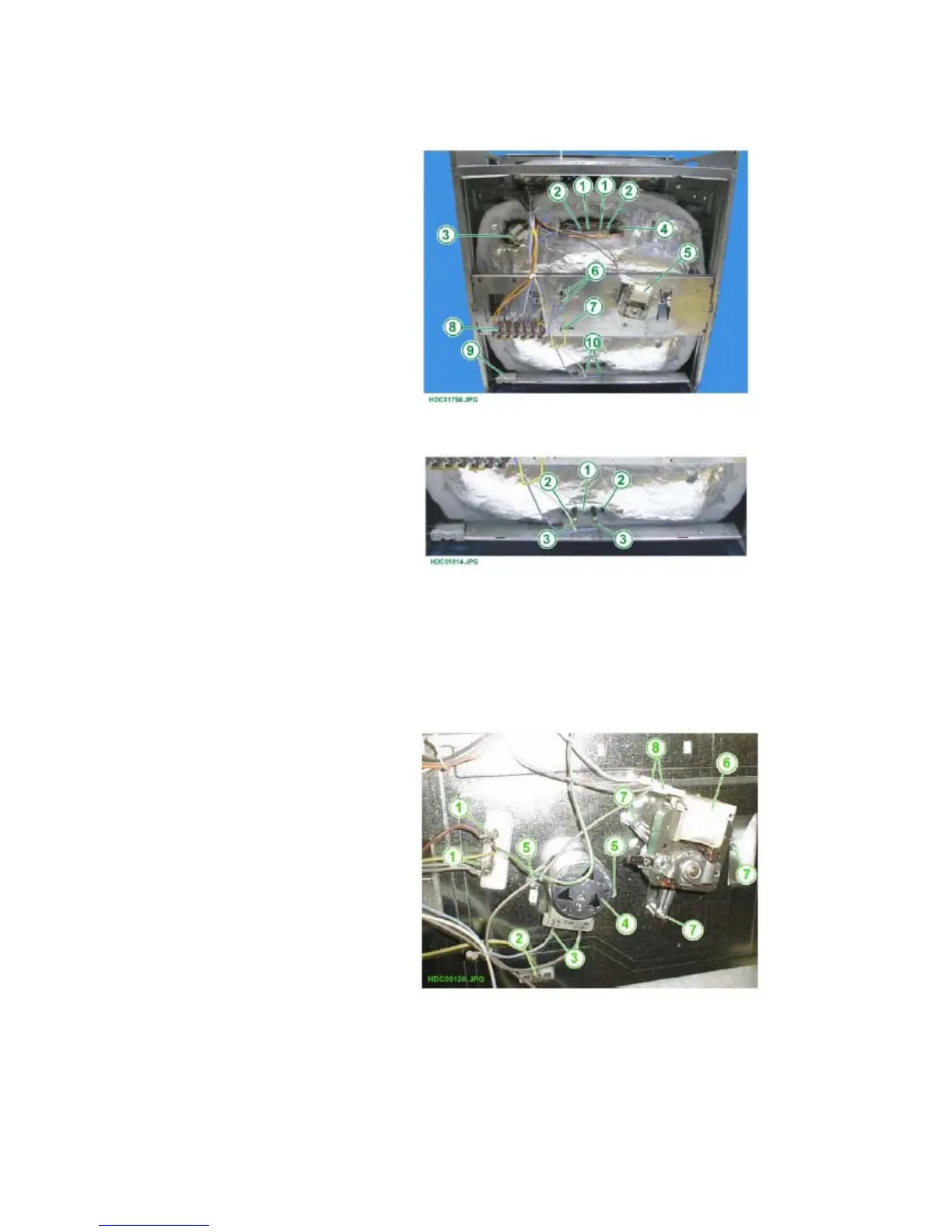

Fig. 58
1 - GRILL HEATING ELEMENT
2 - TOP HEATING ELEMENT
3 - LAMPHOLDER
4 - TERMINAL BOARD
5 - CONVECTION FAN
6 - CONVECTION HEATING
EARTH CONNECTION
8 - TERMINAL BOARD
9 - CABLE CLAMP
10 - BOTTOM HEATING ELEMENT
2. Unfasten the fixing screws from the rear.
Fig. 59
1 - BOTTOM HEATING ELEMENT
2 - FIXING SCREWS FOR THE
BOTTOM HEATING ELEMENT
3 - ELECTRICAL CONNECTIONS
FOR THE HEATING ELEMENT
3. Slide the heating element out from the rear.
2.4.7 - REMOVING THE SPIT MOTOR
In order to remove the spit motor, simply unscrew the two fixing screws
(see Fig. 60 Pos. 5).
Fig. 60
1 - CONVECTION HEATING
ELEMENT
2 - EARTH CONNECTION
3 - SPIT MOTOR CONNECTION
4 - SPIT MOTOR
5 - FIXING SCREWS FOR
SPIT MOTOR
6 - CONVECTION FAN
7 - FIXING SCREWS FOR
CONVECTION FAN
8 - CONVECTION
FAN CONNECTION
