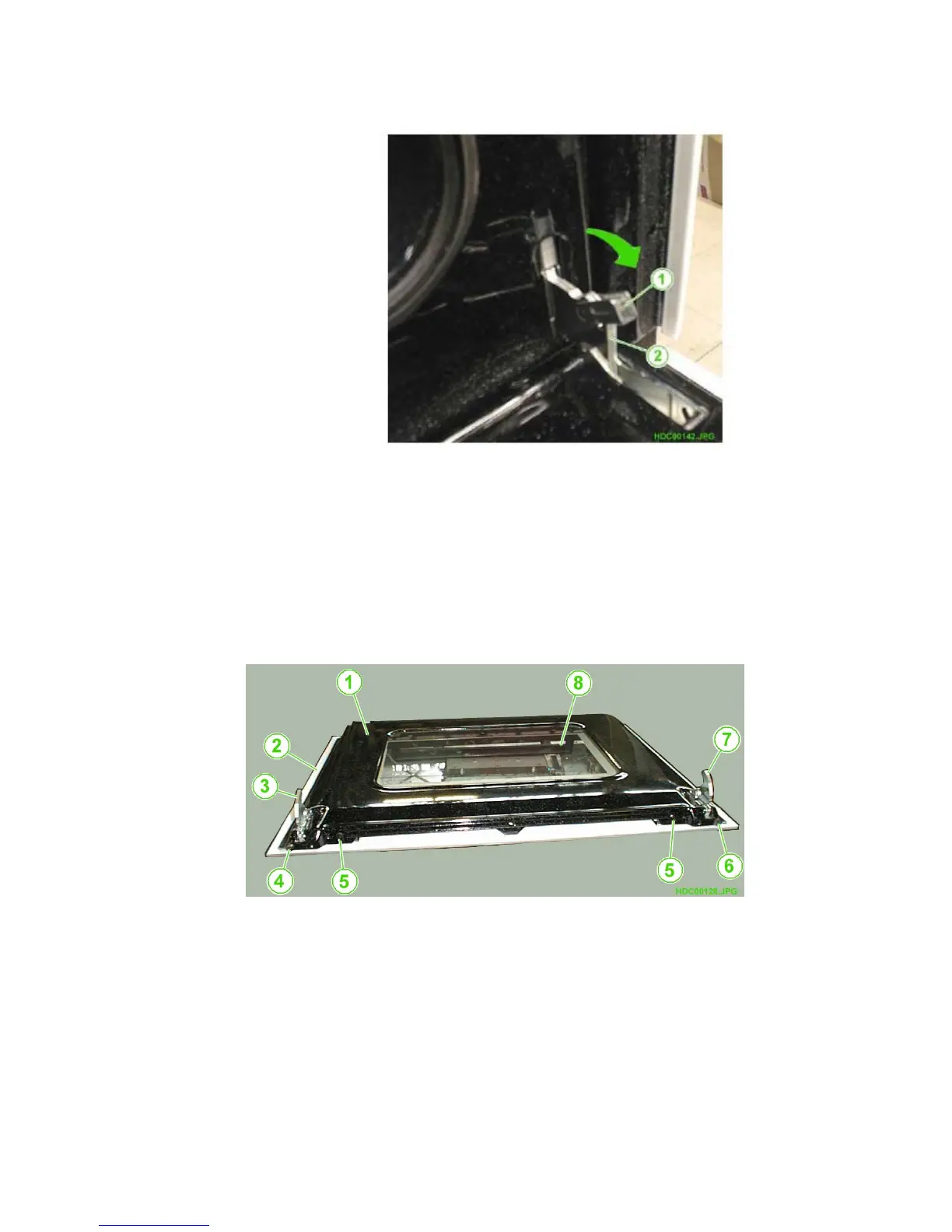

Fig. 121
1 - HINGE RETAINER
HOOK (IN LOCKED
POSITION)
2 - OVEN HINGE
N.B.: When repositioning the door, before you close it, make sure you
raise the hooks completely to their original position (see Fig. 119).
2.7.1 - REMOVING THE DOOR EXTERNAL GLASS NORMAL OVEN
Once you have removed the oven door:
1 - Remove the two screws on the lower part of the inner door (see Fig. 122 Pos. 5).
2 - Slide the glass off from the top of the door to release it from the metal fixing strip.
Fig. 122
1 - INNER DOOR
2 - DOOR EXTERNAL GLASS
3 - OVEN HINGE (RIGHT)
4 - HINGE FIXING SCREW
- RIGHT
5 - EXTERNAL GLASS FIXING SCREWS
6 - HINGE FIXING SCREW
- LEFT
7 - OVEN HINGE (LEFT)
8 - DOOR INTERNAL GLASS
