4.3 - REMOVING THE OVEN BURNER
To remove the oven burner:
1. Open the oven door.
2. Remove the cover from the bottom of the oven.
3. Unfasten the burner fixing screws (see Fig. 288).
4. Extract the burner, avoiding any stress on the connector cable to the
spark plug.
5. Unscrew the spark plug support.

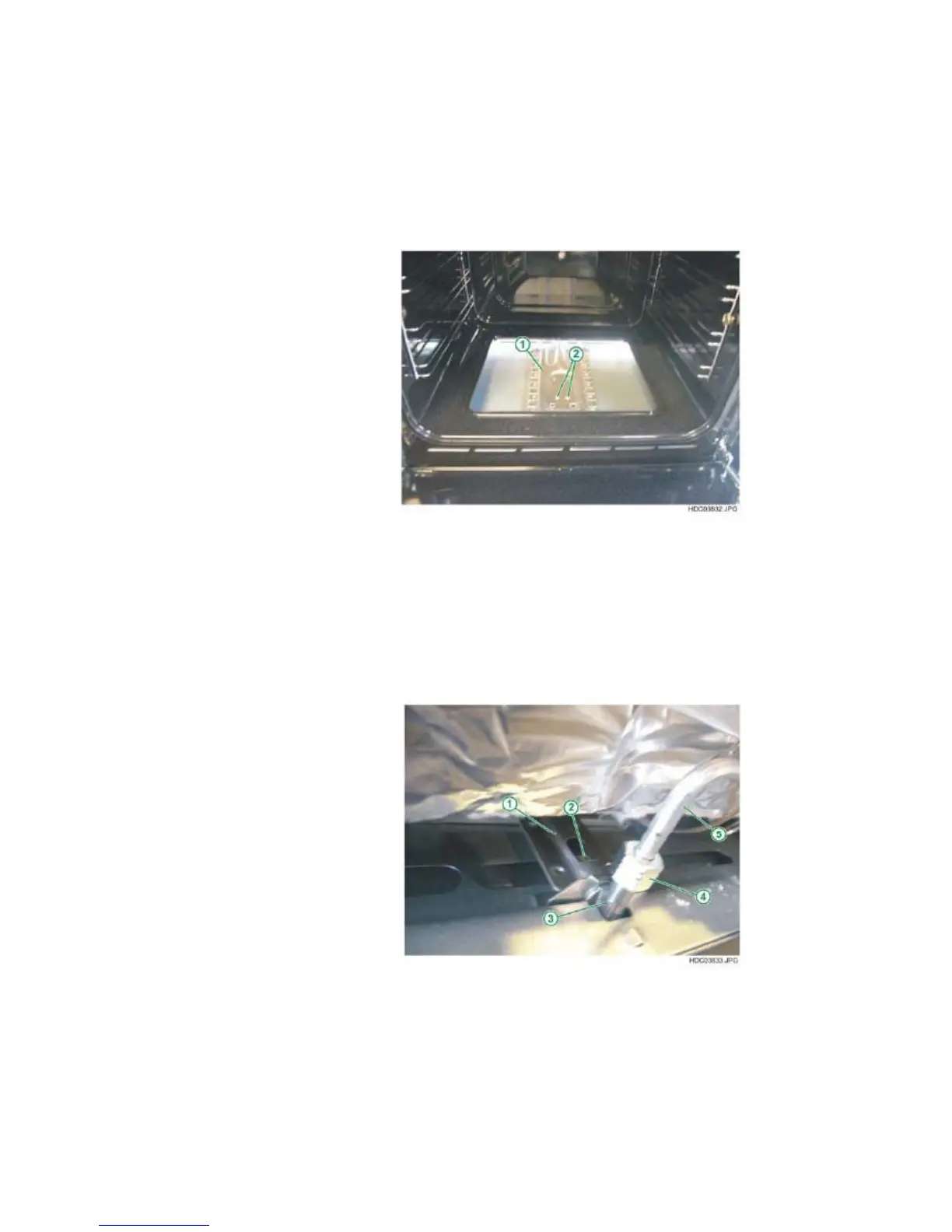

Fig. 288
1 - OVEN BURNER
2 - FIXING SCREWS
4.4 - REMOVING THE OVEN BURNER NOZZLE
To remove the oven burner nozzle:
1. Remove the oven burner (see chapter 4.3).
2. Using the purpose-provided 7 mm spanner, unscrew the nozzle secured to the nozzle support
(see Fig. 289).
Fig. 289
1 - OVEN BURNER
2 - NOZZLE
3 - NOZZLE SUPPORT
4 - GAS PIPE FIXING NUT
5 - GAS SUPPLY PIPE
