SOI 02.10 FV 49/142 599 70 59-01
2.6.2.8 - AVANTGARDE ELECTRONIC PYRO VERSION
In the version with Avantgarde Pyro electronic control, after unscrewing the screws fixing the upper
panel, to remove the Control Unit:
1 - Remove the control panel front piece (see chapter 2.4 entitled REMOVING THE CONTROL
PANEL depending on the styling).
2 - Detach the Control Unit – Power board connection connector (see Fig.
94).
3 - Slide the Control Unit off from the side, to release it from the retainer hooks (see Fig. 93).

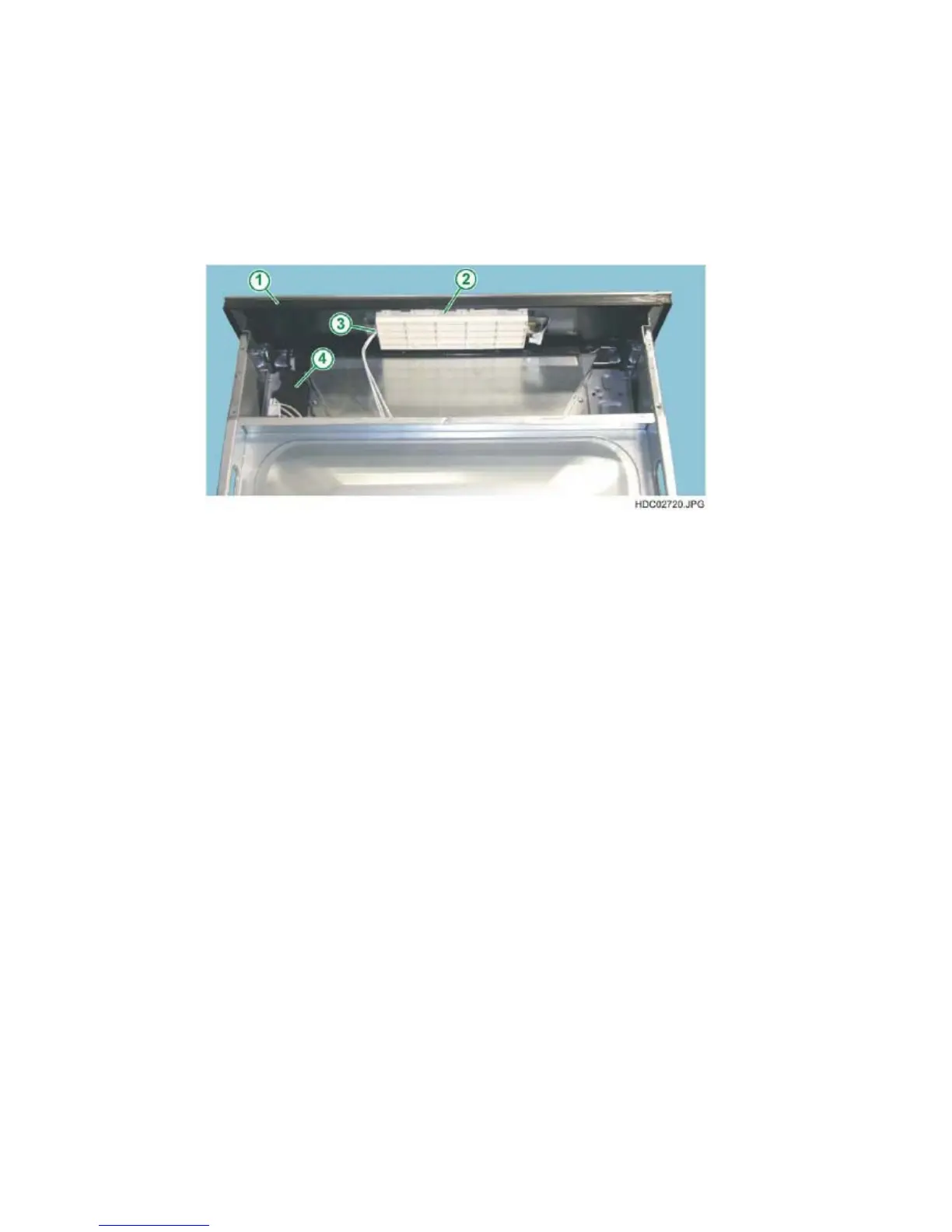

Fig. 94
1 - CONTROL PANEL
2 - AVANTGARDE CONTROL UNIT
3 - CONTROL UNIT - POWER BOARD CONNECTION CONNECTOR
4 - DOOR LOCK ASSEMBLY
N.B.: From January 2010 (serial number 001….) access to the top of the oven
has improved thanks to the progressive introduction of a new one-piece top oven
cover (see chapter 2.6.1).
