Electrolux Built-in ovens Service Manual

SOI 02.10 FV 67/142 599 70 59-01

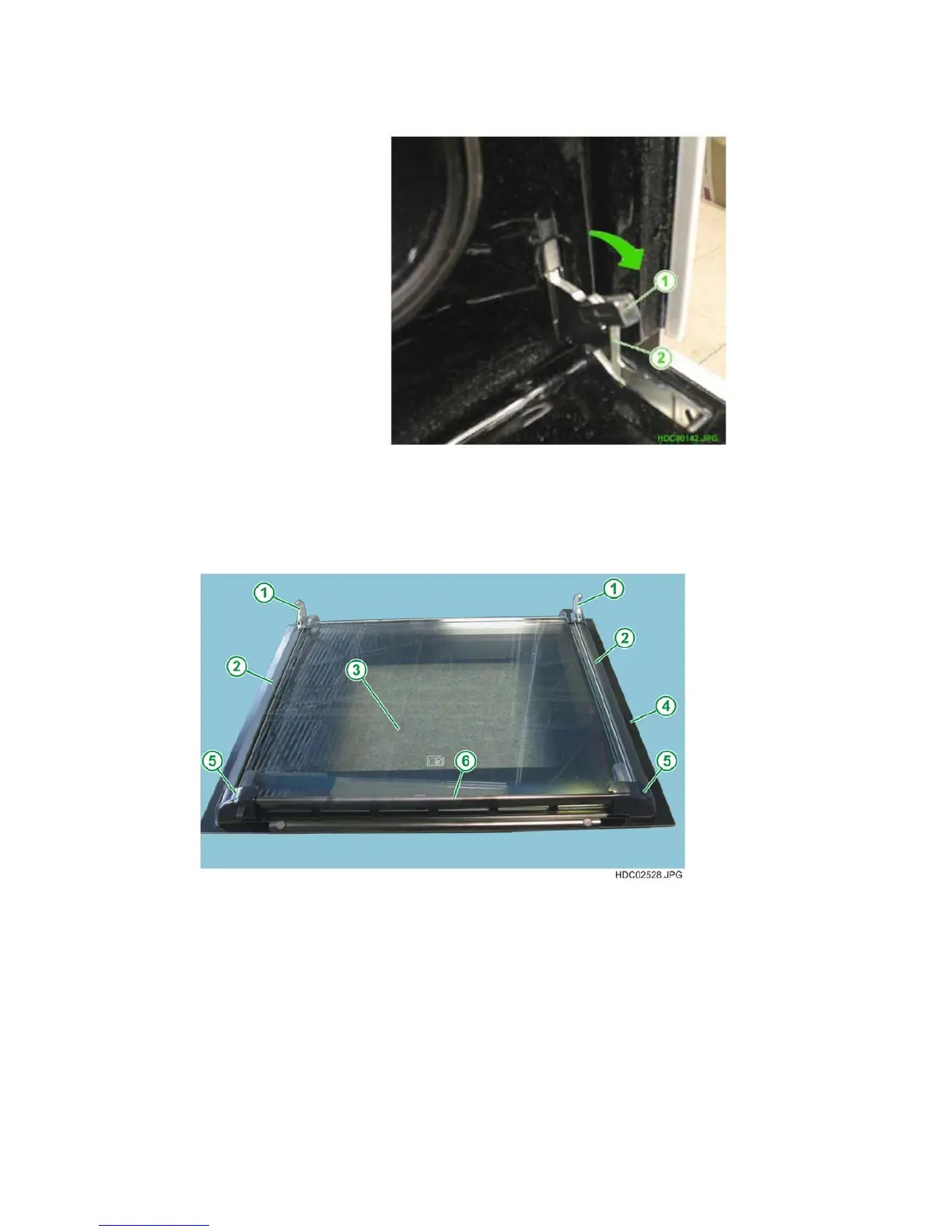

Fig. 127
1 - HINGE RETAINER
HOOK (IN LOCKED
POSITION)
2 - OVEN HINGE
N.B.: When repositioning the door, before you close it, make sure you
raise the hooks completely to their original position (see Fig. 125).
2.8.1 - REMOVING THE UPPER END PIECES ON "ALL GLASS" DOOR
Fig. 128
1 - OVEN HINGES
2 - DOOR SIDE UPRIGHTS
3 - INTERNAL GLASS
4 - EXTERNAL GLASS
5 - UPPER END PIECES
6 - UPPER GRILLE
