Once you have removed the oven door:
1 - Remove the two screws on the side uprights securing the upper end pieces in place
(see Fig. 129 and 130).
2 - Slide off the upper grille - upper end pieces assembly upwards (see Fig. 132).

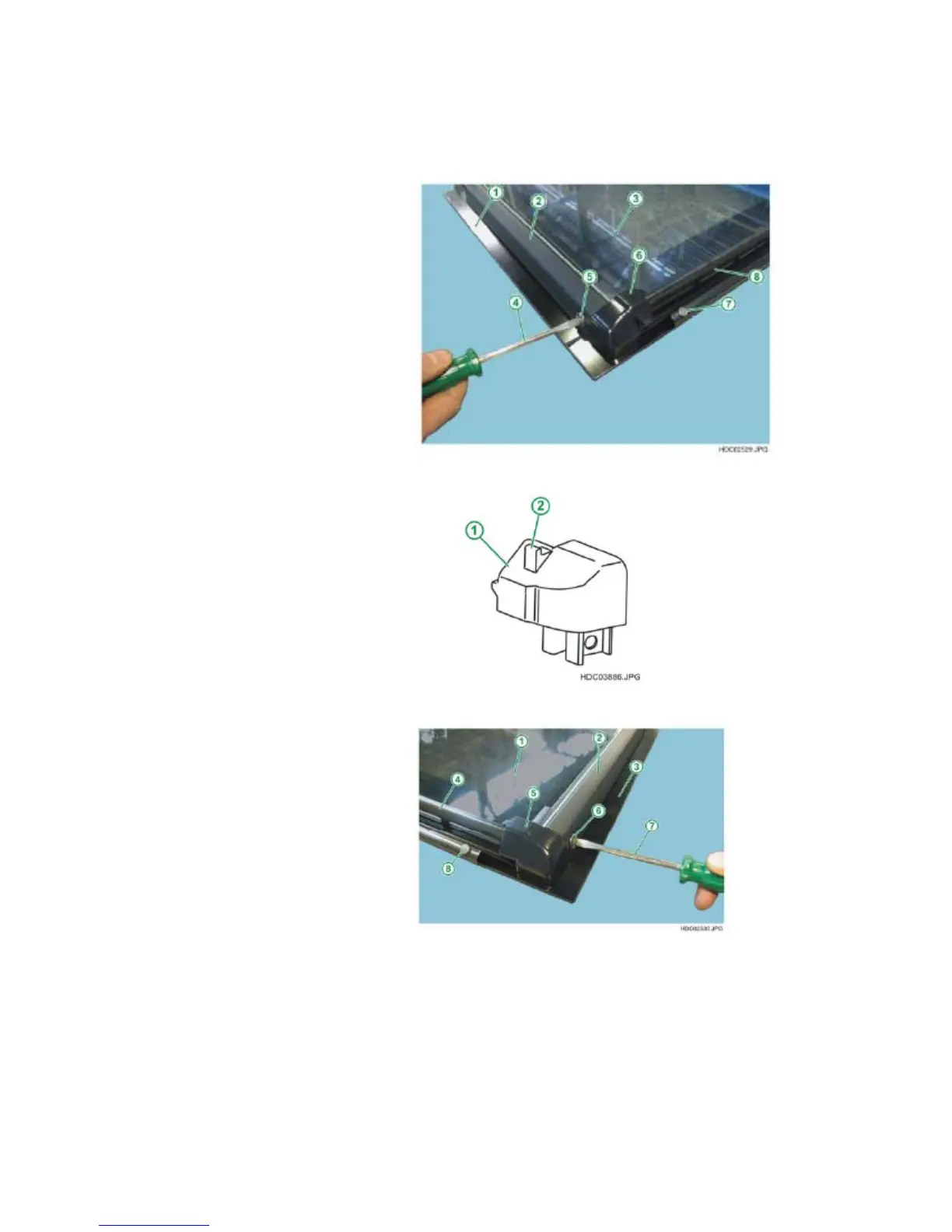

Fig. 129
1 - EXTERNAL DOOR GLASS
2 - LEFT UPRIGHT
3 - INTERNAL DOOR GLASS
4 - PHILIPS SCREWDRIVER
5 - FIXING SCREW - LEFT
END PIECE
6 - LEFT END PIECE WITH DOOR
LOCK RETAINER HOOK
7 - RUBBER BUFFER
8 - UPPER GRILLE
Fig. 130
1 - LEFT END PIECE
2 - RETAINER HOOK
FOR DOOR LOCK
Fig. 131
1 - INTERNAL DOOR GLASS
2 - RIGHT UPRIGHT
3 - EXTERNAL DOOR GLASS
4 - UPPER GRILLE
5 - RIGHT END PIECE
6 - FIXING SCREW - RIGHT
END PIECE
7 - PHILIPS SCREWDRIVER
8 - RUBBER BUFFER
