SOI 02.10 FV 69/142 599 70 59-01

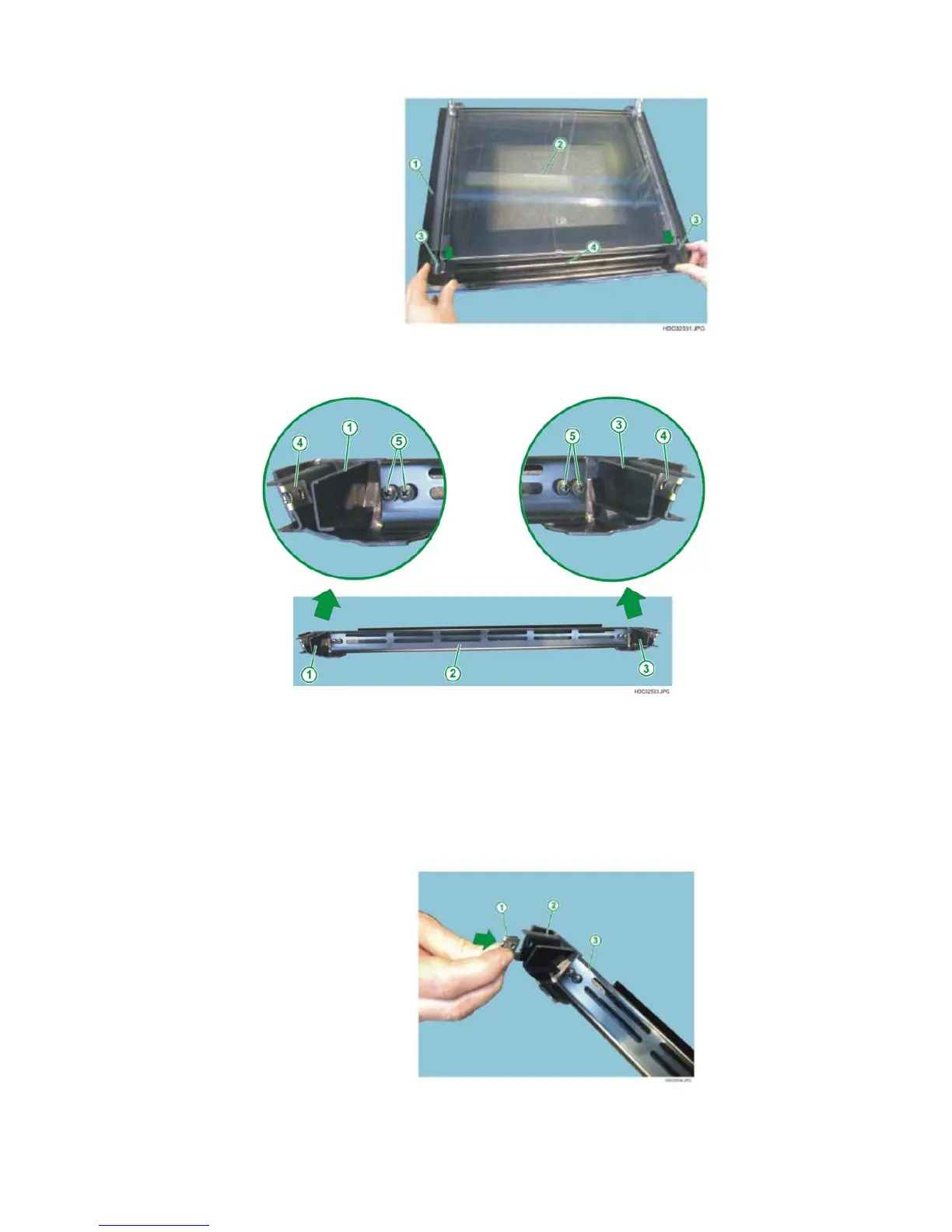

Fig. 132
1 - EXTERNAL DOOR GLASS
2 - INTERNAL DOOR
GLASS
3 - UPPER END PIECES
4 - UPPER GRILLE
3 - Unfasten the upper grille - upper end pieces fixing screws (see Fig. 133).
Fig. 133
1 - UPPER LEFT END PIECE
2 - UPPER GRILLE
3 - UPPER RIGHT END PIECE
4 - END PIECE SPRING CLIP
5 - FIXING SCREWS FOR THE UPPER GRILLE
N.B.: Before repositioning the upper end pieces-grille assembly in the door, make sure the
end piece spring clips are inserted correctly (see Fig. 134).
Fig. 134
1 - END PIECE SPRING
CLIP
2 - UPPER END PIECE
3 - UPPER GRILLE
