2.8.2 - REMOVING "ALL GLASS" PYRO OVEN DOOR INTERNAL GLASS
To remove the door internal glass:
1 - Remove the oven door (see Chapter 2.8).
2 - Remove the upper end pieces (see Chapter 2.8.1)

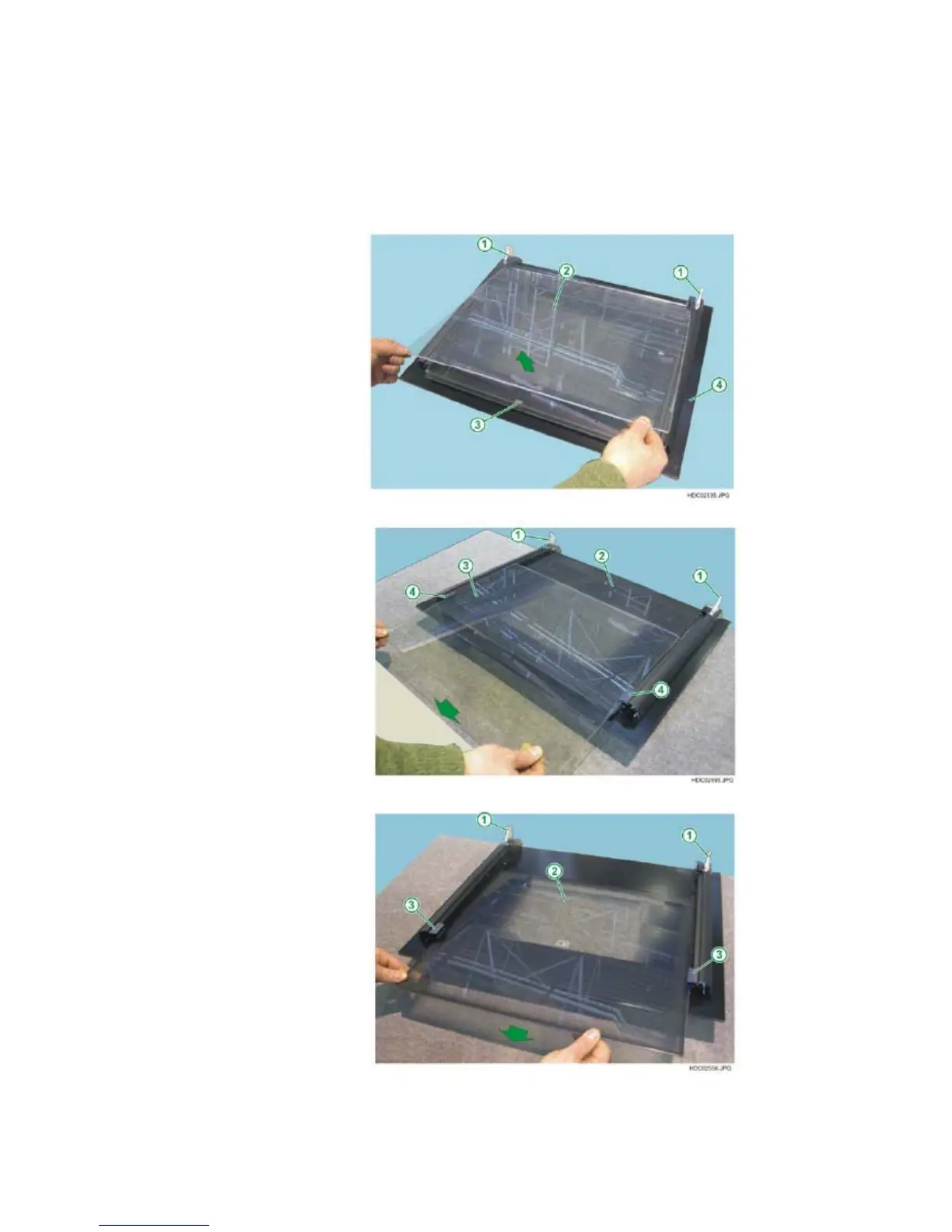

3 - Remove the internal glass, paying attention to the sequence of glass panes and to the position
of the rubber buffer (see Fig. 135).
Fig. 135
1 - OVEN DOOR
HINGES
2 - FIRST INTERNAL
DOOR GLASS PANE
3 - CENTRAL RUBBER
BUFFER FOR
INTERNAL GLASS
4 - EXTERNAL DOOR
GLASS
Fig. 136
1 - OVEN DOOR HINGES
2 - THIRD DOOR INTERNAL
GLASS PANE
3 - SECOND DOOR
INTERNAL GLASS PANE
4 - SIDE GLAZING
RETAINER BUFFERS
Fig. 137
1 - OVEN DOOR HINGES
2 - THIRD DOOR
INTERNAL GLASS PANE
3 - SIDE GLAZING
RETAINER BUFFERS
