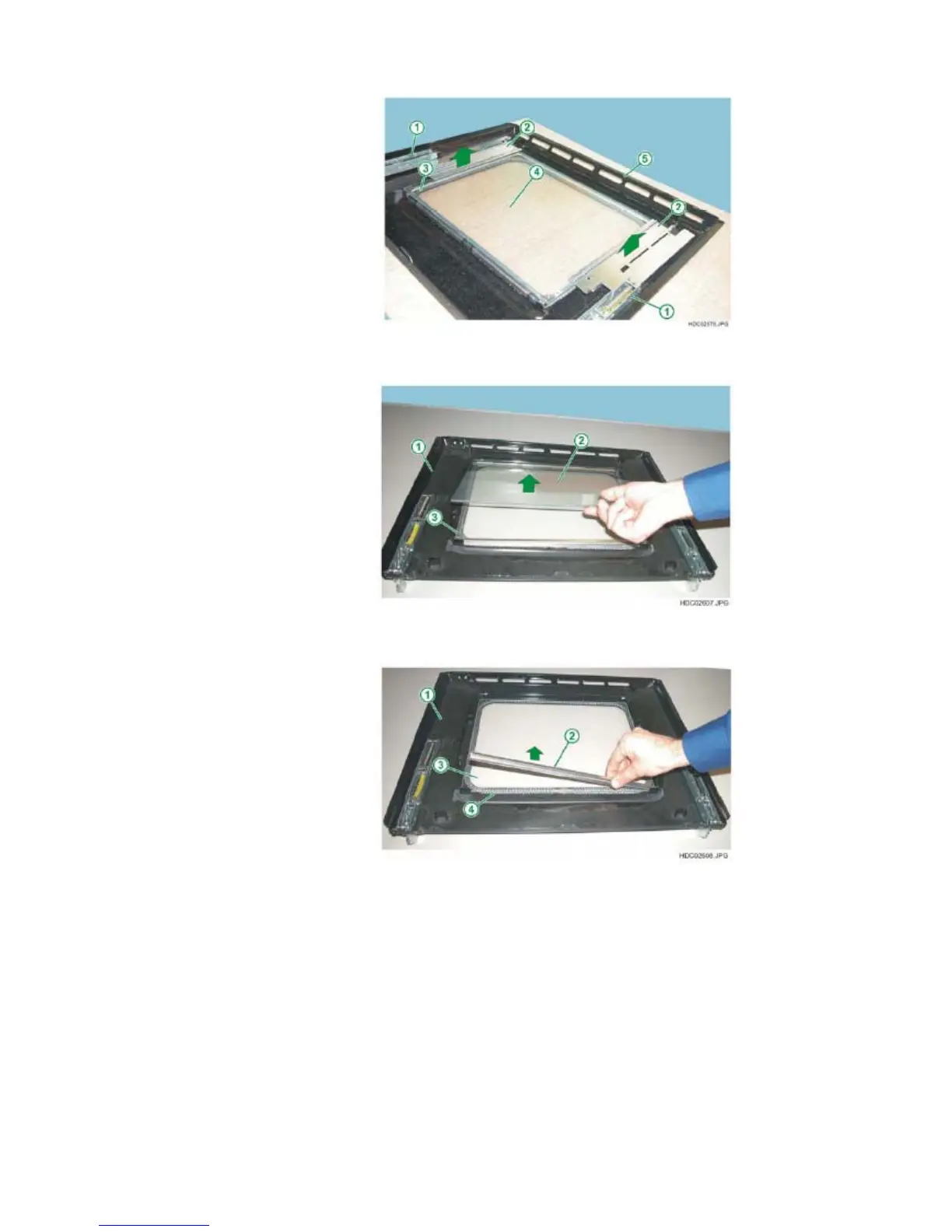

Fig. 156
1 - DOOR HINGE
2 - FIXING BRACKETS
FOR INTERNAL GLASS
3 - SEAL BETWEEN
SECOND GLASS PANE
AND INNER DOOR
4 - SECOND INTERNAL
GLASS PANE
5 - INNER DOOR
3 - Remove the second internal glass pane (see Fig. 157).
Fig. 157
1 - INNER DOOR
2 - SECOND INTERNAL
GLASS PANE
3 - METALLIC SPACER
FRAME BETWEEN
SECOND AND THIRD
GLASS PANES
4 - Remove the internal spacer frame (see Fig. 158).
Fig. 158
1 - INNER DOOR
2 - METALLIC SPACER
FRAME BETWEEN
SECOND AND THIRD
GLASS PANES
3 - THIRD INTERNAL
GLASS PANE
4 - SEAL BETWEEN THIRD
GLASS PANE AND
INNER DOOR
