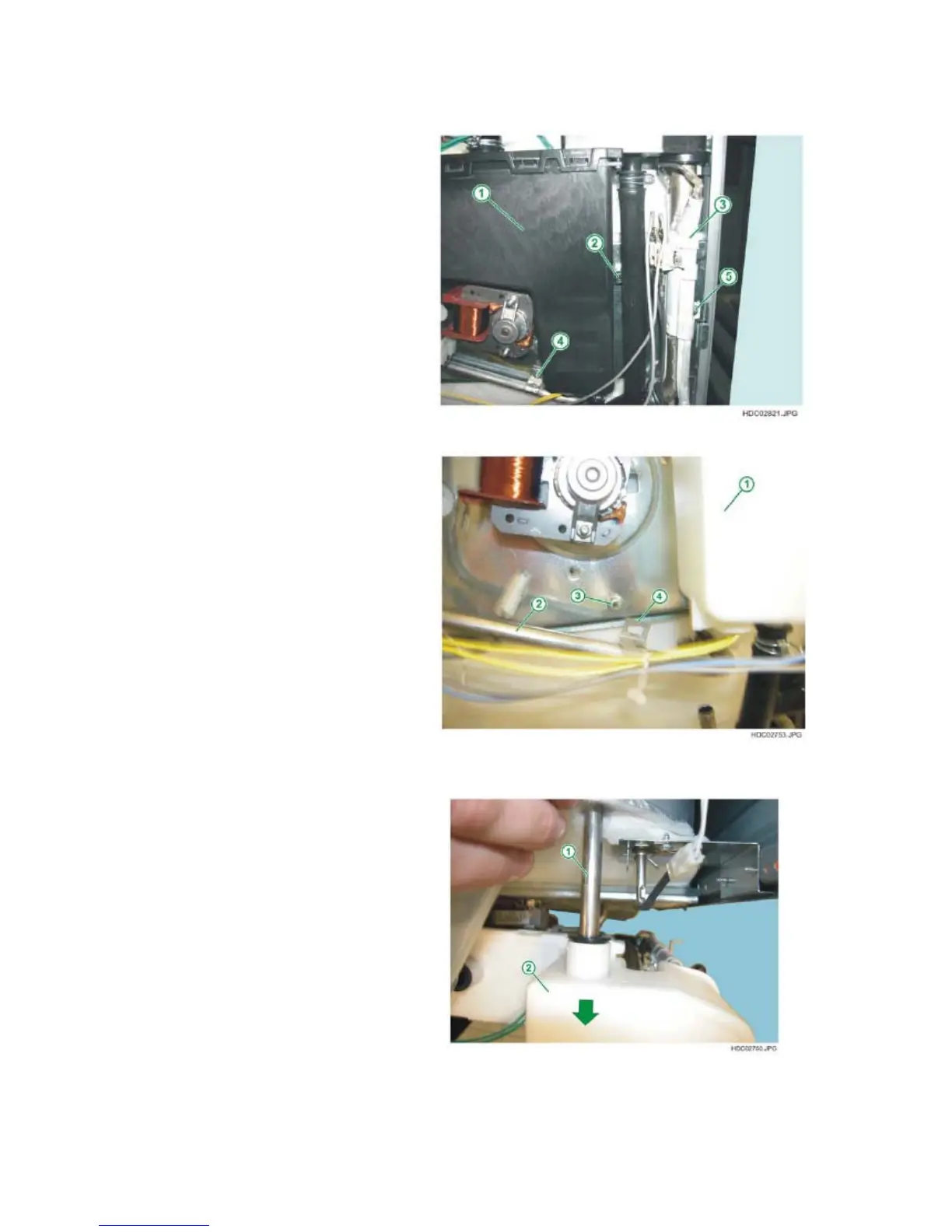

3 - Unscrew the overflow pipe fixing screw (see Fig. 248 and 249).
Fig. 248
1 - WATER TANK
2 - FIXING SCREW - TANK
3 - STEAM GENERATOR
ASSEMBLY
4 - OVERFLOW PIPE FIXING
SCREW
5 - FIXING SCREW - STEAM
GENERATOR
Fig. 249
1 - WATER TANK
2 - OVERFLOW DRAIN PIPE
3 - HOLE FOR FIXING SCREW FOR
OVERFLOW DRAIN PIPE
4 - FIXING CLAMP FOR
OVERFLOW DRAIN PIPE
4 - Pull back the assembly to slide off the steam outlet pipe (see Fig. 250).
Fig. 250
1 - STEAM OUTLET PIPE
2 - EXPANSION CHAMBER
