ENSONIQ EPS-16 PLUS Musician's Manual

Section 7 — Voice Parameters EPS-16 PLUS Musician's Manual

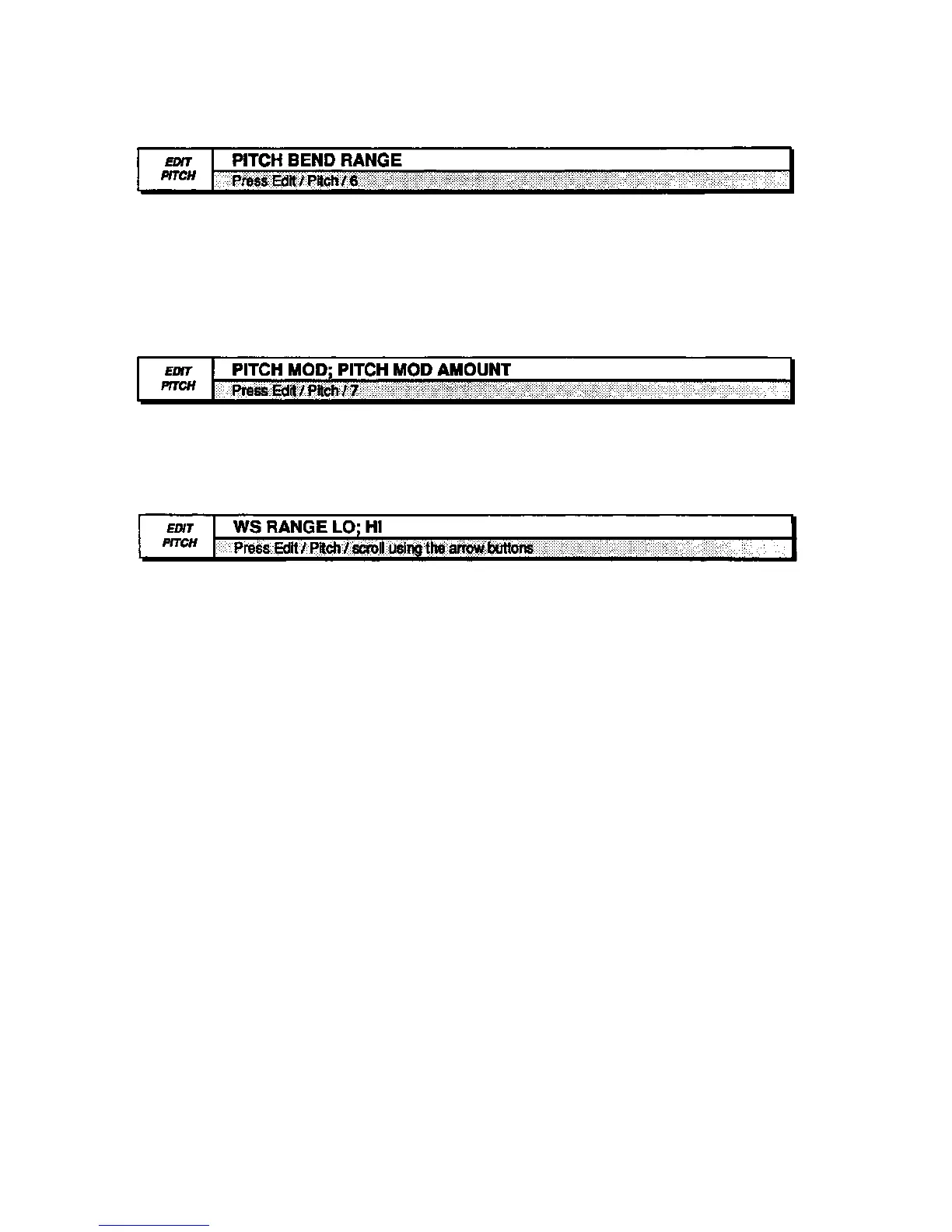

This parameter allows you to set the pitch bend range on the Wavesample level.
The default value is two semitones.
Range: 0 through 12 semitones
Note: When BEND RANGE=GLOBAL the Wavesamples bend range will default to
the global setting on the EDIT/System page.
Use this page to assign one of fifteen modulators to the pitch of the oscillator, and
to set the amount (depth) of that modulator.
Range: -99 to +99
This parameter determines the key range the selected Wavesample will cover.
Select the WS RNG LO parameter, play the key that you want to be the low key
from the MIDI keyboard connected to the EPS-16 PLUS, the cursor will then
automatically switch over to the HI parameter, which can then be set in the same
fashion.
Note: As with the instrument key range, if you accidentally set the High Key below the
Low Key, the selected Wavesample will not be heard
7 - 10
Edit Pitch Page

ENSONIQ EPS-16 PLUS Specifications

General

Type	Sampler/Workstation
Polyphony	16 voices
Multitimbral	16 parts
Sampling Rate	44.1 kHz
Sampling Resolution	16-bit
Sample Memory	2 MB (expandable to 8 MB)
Display	LCD
Storage	3.5" floppy disk drive
Effects	reverb, chorus, and delay
Sequencer	16-track sequencer
Keyboard	61 keys, velocity and aftertouch sensitive
Outputs	Stereo outputs, headphone output
Number of Sounds	128 preset sounds, 128 user sounds
