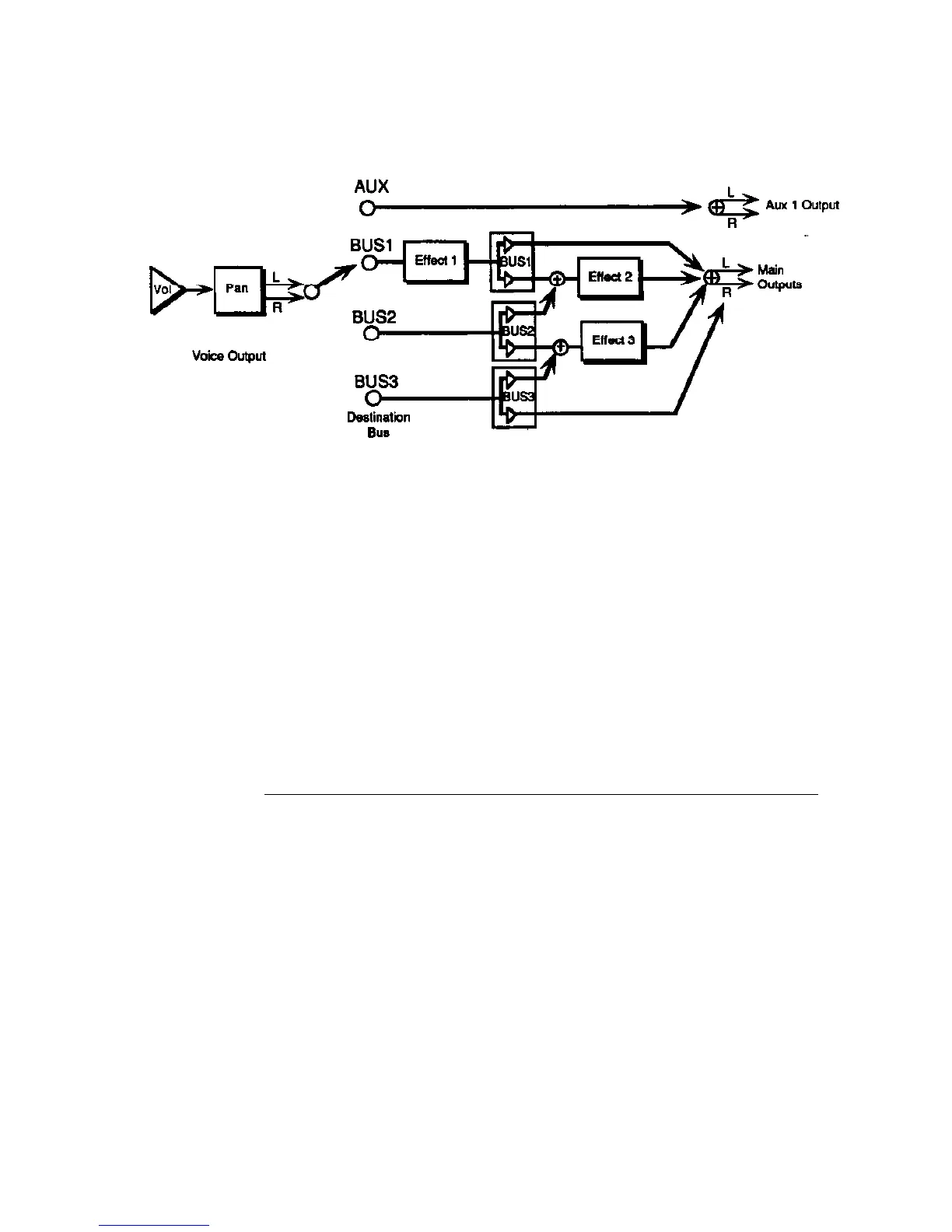

Triple Function Effect Mixer
Some effects, such as DIST+CHO+REV, use the above mixing scheme. Effect 1
and Effect 2 usually have a wet/dry mix within them. This mixer can be
configured as three independent effects, or three effects in a series.
Effect Modulators
Most of the effects allow real time control of some parameter within the effect,
such as the Reverb Mix or Flanger Feedback. Each of these effects will have its
own Modulator Select screen, where the modulator and mod amount are selected.
This screen will look different from effect to effect, but it will always be the last
screen on the EDIT/Effects page. The screen has two parameters:
• Mod Source — This selects the source for modulating the defined parameter
within the selected effect
• Mod Amount — This sets the amount the Mod Destination will be modulated by
the Mod Source.
The following modulation sources are available to alter the effects in performance:
Mod Source
WHEEL
PRESS
PEDAL
XCTRL
KBD
VEL
KEYDN
FTSW2
PATCH
SUSTN
OFF
Modulation effect derived from
the value of the mod wheel
the channel pressure value for the selected track
the value of the CV/Pedal input
uses the value of the assignable external MIDI
controller, such as the breath controller
the number of the last key played
average velocity of all keys played simultaneously
on when any keys are held down, otherwise off
uses left foot pedal of the optional SW-5 Foot
Switch; on when held down, otherwise off
four distinct values, ranging from off (no patch select
buttons held) to full on (both patch selects held)
on when sustain pedal is held down; otherwise off
no modulation
Programming Effects
4 - 7
