EPS-16 PLUS Musician's Manual Section 1 — Getting Started
5) Effect Select•Bypass
This button acts as the "master" controlling switch for the built-in effects,
determining which, if any effect will be used and how it will interact with the
instruments that reside in the internal memory. The controls on this page also
determine the playback rate and polyphony. See Section 4—Effects for more
details.
6) Patch Selects
These two buttons can be programmed to provide instant access to up to four
completely different sounds within each Instrument The alternate sound might
be a different set of samples, or the same samples with different envelopes, or a
chorused version of the sound, or perhaps a different range of an instrument.
There are two parameters of the EDIT/System•MIDI page which allow the
optional SW-5 Dual Foot switch to reproduce the action of these buttons. See
Section 2 —System Control, for more information.

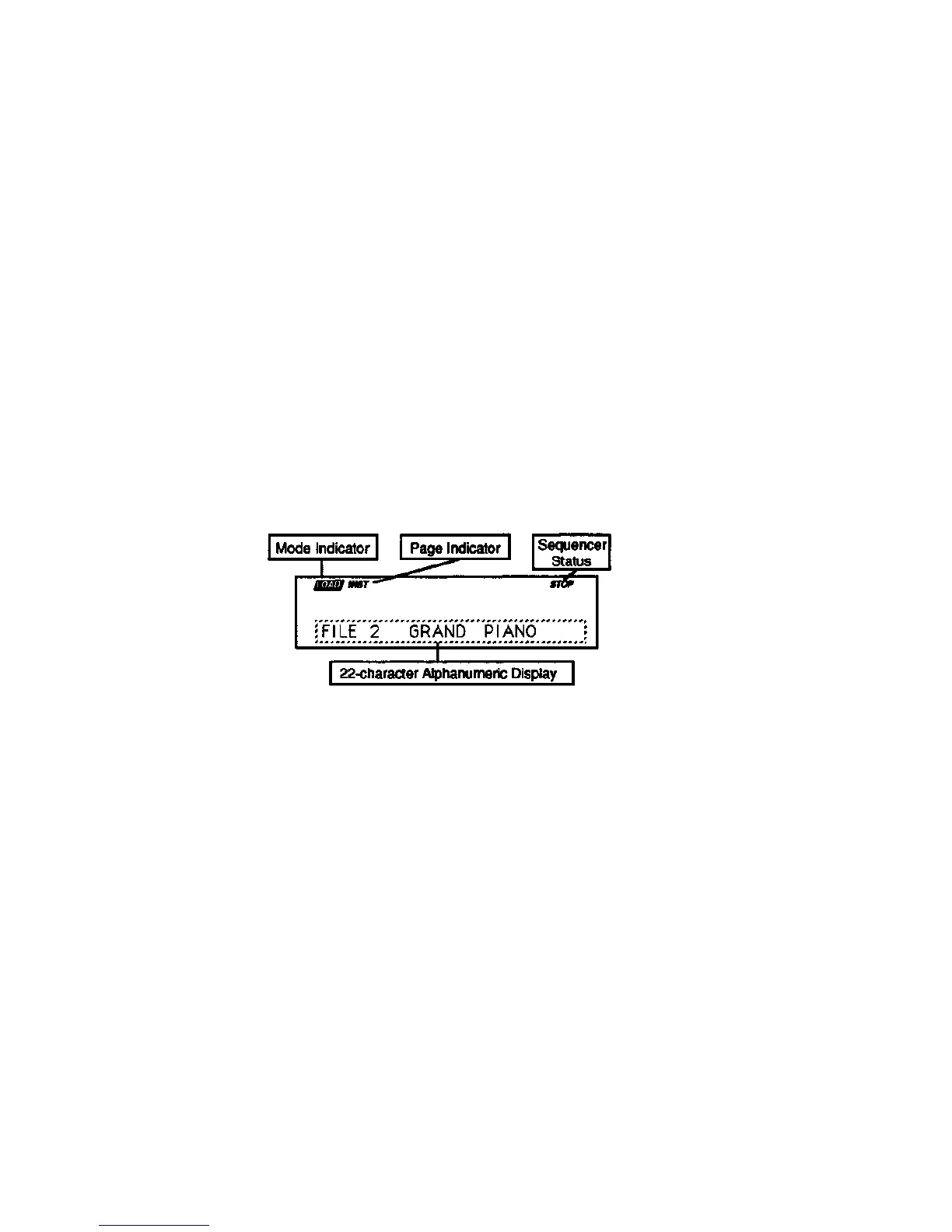

7) Display
The EPS-16 PLUS Display is divided into two main sections: the Indicator
Lights in the top half of the window, and the 22-character alphanumeric display
at the bottom of the window.
The indicator lights will tell you which mode the EPS-16 PLUS is in (LOAD,
COMMAND, or EDIT); which page it is on; and the sequencer status (STOP,
PLAY, RECORD, etc.). The 22-character alphanumeric display is used to show
you information about specific files, parameters, commands, etc. It will also ask
you for additional input when necessary, such as which track you want to load an
instrument into, or which Wavesample you want to edit.
Front Panel
1 - 13
