Section 1 — Getting Started EPS-16 PLUS Musician's Manual

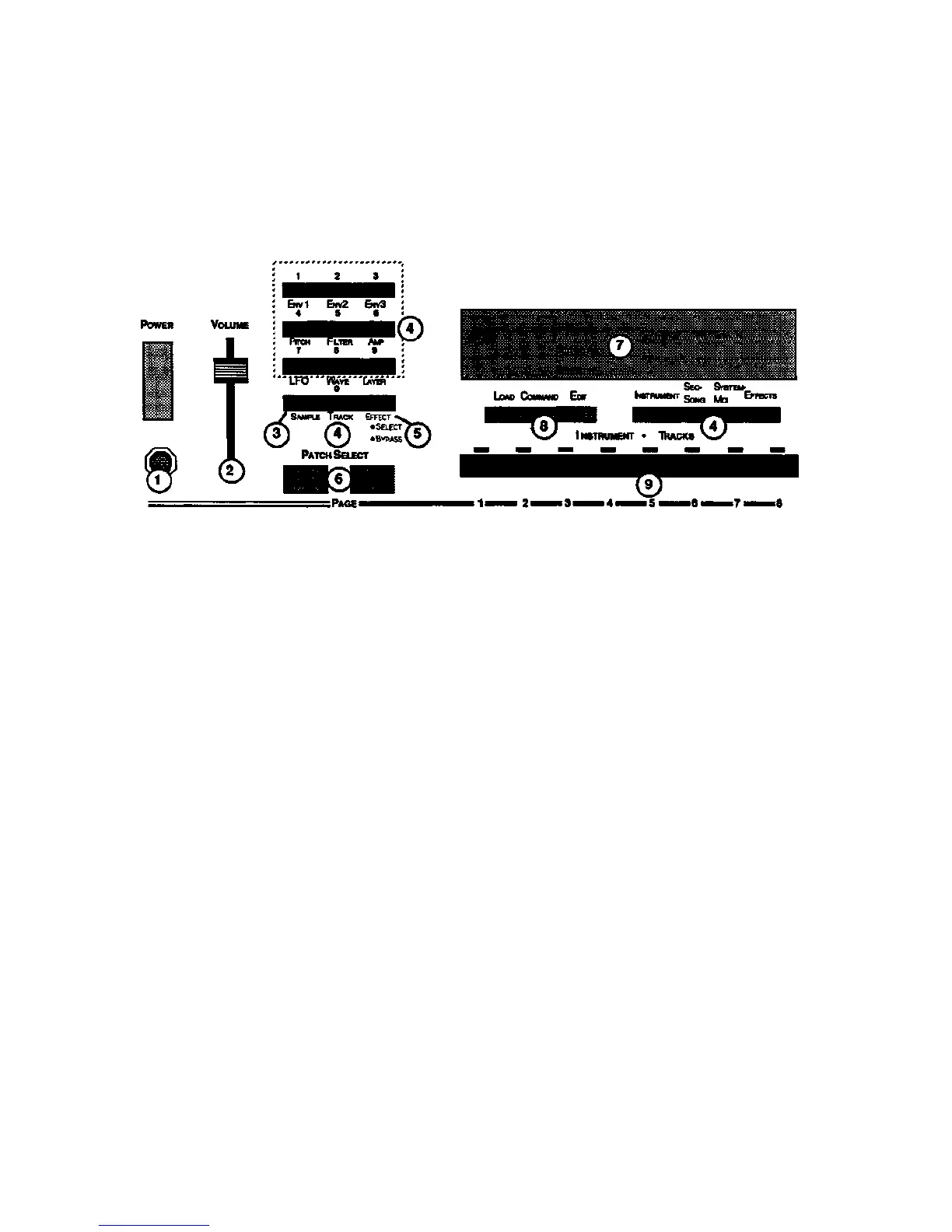

The Front Panel — Communicating with the EPS-16 PLUS
Almost everything you do on the EPS-16 PLUS — whether it's selecting a
sound, editing that sound, adjusting the tuning, etc. — is controlled from the
front panel using the following controls:
1) Headphone Jack
This headphone jack is for private listening. What you will hear are the signals at
the Left and Right outputs (no signals from the Auxiliary Outputs). The audio
outputs are not disabled when headphones are used.
2) Volume Slider
This controls the overall volume of all the EPS-16 PLUS' audio outputs.
3) Sample
This button is used to initiate sampling (digitally recording sounds) by the
EPS-16 PLUS. See Section 5—Sampling for more on sampling.
4) Page Buttons
Within each mode, the available disk files, commands, and parameters are
organized into Pages. A page is selected by pressing one of these fourteen page
buttons. Once you are on the correct page, you use the data entry controls to
scroll through the files, commands or parameters on the page. A given page will
have different functions depending on the current mode. Each mode has a
different set of pages available. Not all fourteen page buttons are active in all
three modes.
The ten numbered page buttons also double as a numeric keypad for "direct-
dialing" a given disk file (see Parameter Illustrations later in this section),
command, or parameter or for sending MIDI Program Changes.
1 - 12
Front Panel
