EPS-16 PLUS Musician's Manual Section 2 — System Control

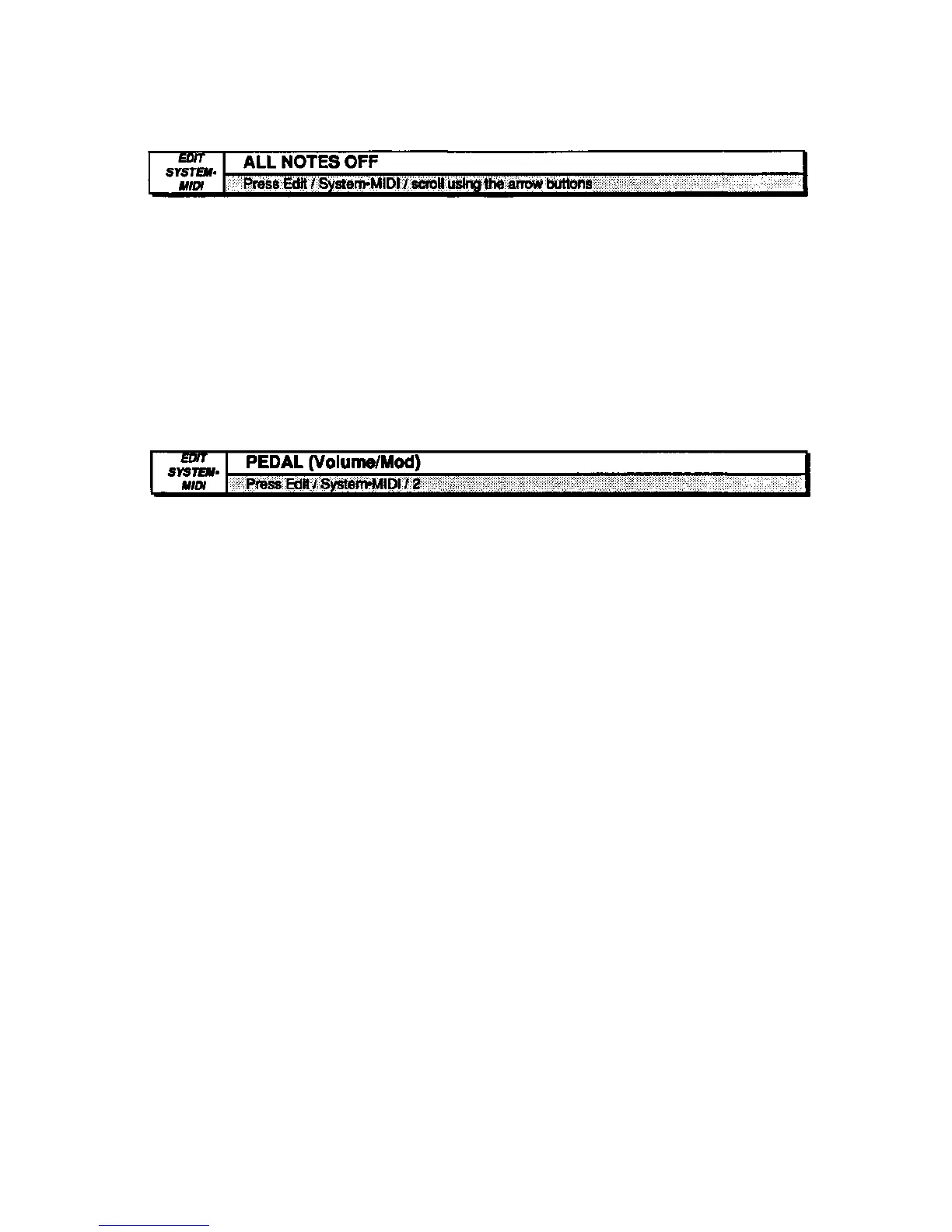

All Notes Off
This parameter determines whether the EPS-16 PLUS will respond to a MIDI All
Notes Off command. All Notes Off is a MIDI mode message which turns off all
voices turned on via MIDI at the time the message is received. It is not
recognized when the EPS-16 PLUS is in OMNI mode.
• OFF — the EPS-16 PLUS will not recognize incoming All Notes Off
messages.
• ON — the EPS-16 PLUS will recognize incoming All Notes Off messages.
With this in mind, the EPS-16 PLUS does not transmit an All Notes Off
command (though it obviously "passes on" any such messages via its MIDI Thru
jack).
The optional CV Pedal (model CVP-1) can be used as a volume pedal or as a
modulator. The volume pedal is sent as MIDI controller #7. If PEDAL=MOD it
will affect anything that has pedal selected as a modulator, and it will go out as
MIDI controller #4.
Note: Some Yamaha® TX modules (depending on the software version) receive MIDI
controller #4 as volume. If the pedal is not plugged in, MIDI controller #4 will
default to 0, which will shut down volume of the TX.
• When set to PEDAL=VOLUME MIDI=7 the optional CV Pedal acts as a
volume pedal.
• When set to PEDAL=MOD MIDI=4 the optional CV Pedal acts as a modulation
pedal, and will cease to act as a volume pedal.
EDIT System•MIDI Page
2 - 3
