Section 2 System Control
EPS-16 PLUS Musician's Manual

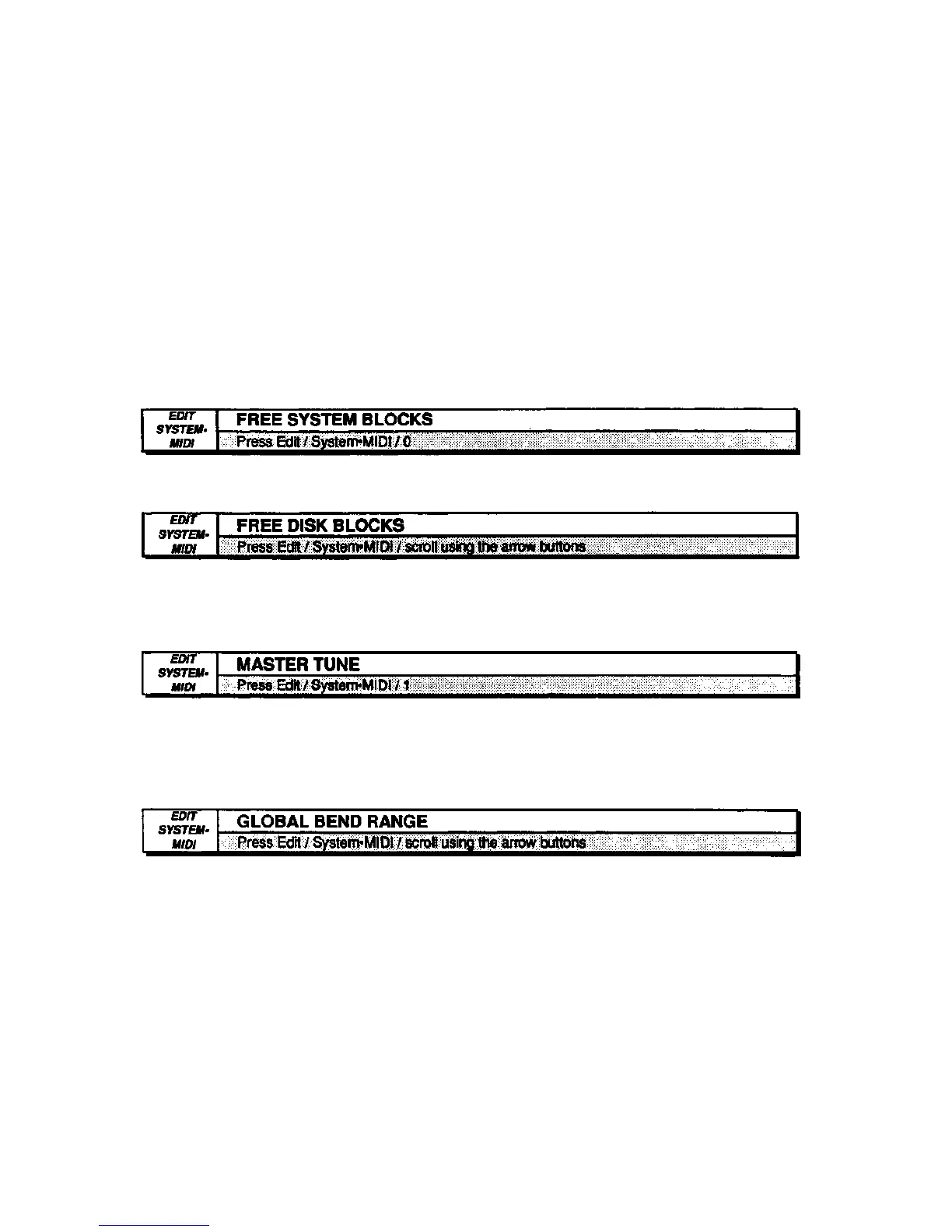

EDIT/System•MIDI Page
This page contains system (or global) and MIDI parameters.
Note: Due to the large number of parameters on this page, not all parameters have a
direct-dial number. Those that do will have that number listed in its parameter
illustration. Parameters without direct dial numbers can be accessed by using the
Left/Right Arrow buttons.
System Parameters
These parameters are among those which will be saved to the O.S. disk when you
SAVE GLOBAL PARAMETERS (see later in this section).
This page shows the amount of available internal memory (in blocks).
This page shows the amount of available memory (in blocks) on the disk
currently in the drive (or on the hard disk if a SCSI device is selected as the
storage device).
Adjusts the overall master tuning of the keyboard up or down as much as one
semitone. A value of +00 will set the EPS-16 PLUS to concert A=440 tuning.
Range: -99 to +99 cents
Use this parameter to adjust the pitch bend range. The bend range is adjustable in
one-semitone increments from 0 to 12. Each EPS-16 PLUS Wavesample can
have its own bend range (which will override the global bend range) or can use
this global bend range.
Range: 0 to 12 semitones
2 - 2
EDIT System•MIDI Page
