Section 3 — Instruments and Banks EPS-16 PLUS Musician's Manual

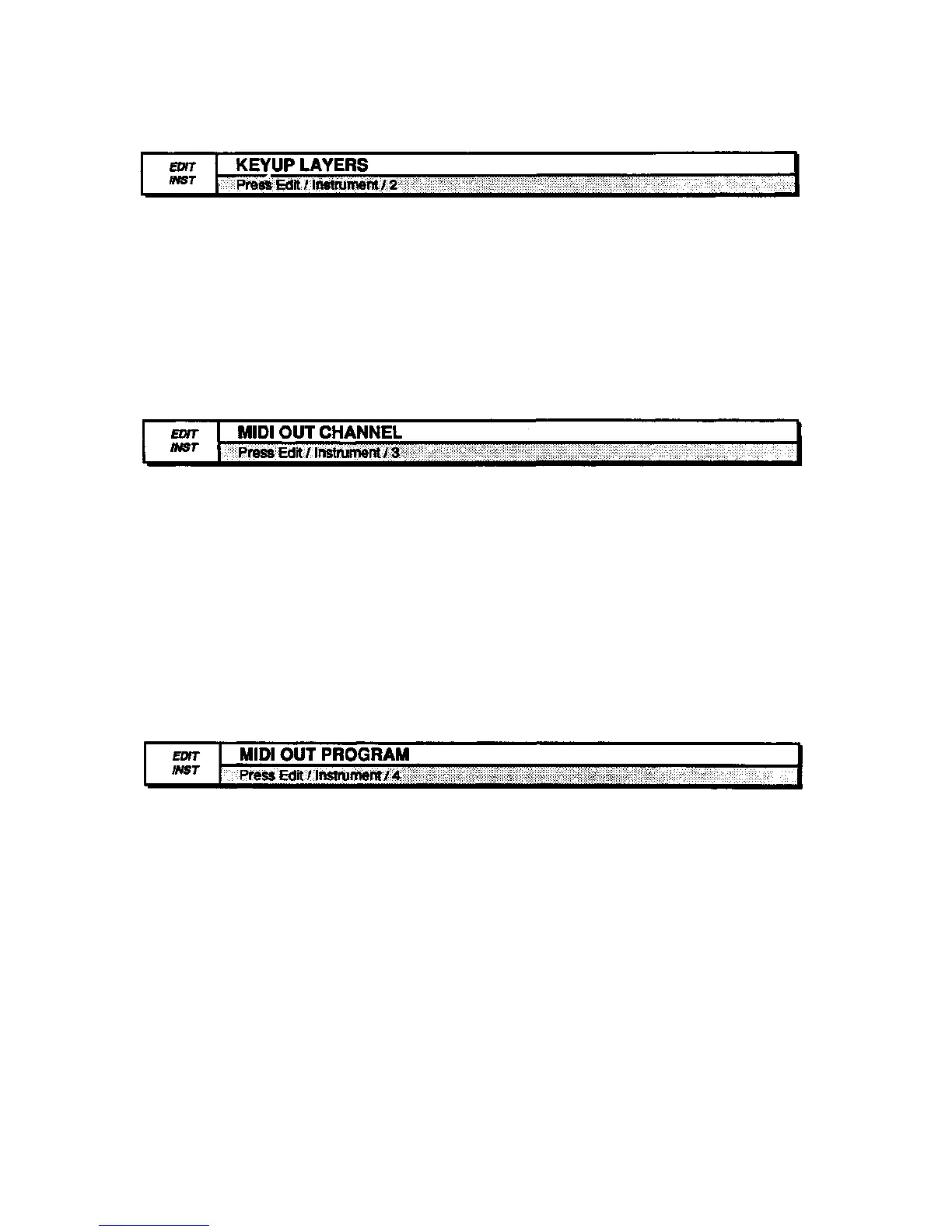

This page shows which layer(s) will be triggered when a MIDI key up message is
received A good example of this would be the "thunk" sound made by a
harpsichord when you release a key. This release sound can be sampled
separately and placed in a layer which you designate as a keyup layer. If you
want a layer to be triggered only when keys are released, be sure to turn that layer
off with the KEYDWN LAYERS parameter.
• Select KEYUP LAYERS=########. Use the cursor and the Up/Down
Arrow buttons to select either a number (layer enabled on keyup) or a dash
(layer disabled on keyup) for that location.
Use this page to determine which MIDI channel the instrument will transmit on if
the TRANSMIT ON= parameter on the EDIT/System•MIDI page is set to INST
CHANNEL. Any of the 16 MIDI channels can be selected.
If TRANSMIT ON=BASE CHANNEL, the EPS-16 PLUS will only send on the
Base MIDI channel (also selected on the EDIT/System•MIDI page) no matter
which MIDI channel is selected.
Also, if the instrument has been assigned LOCAL status, it won't matter what
MIDI channel you assign here—playing that instrument will not send any MIDI
information.
Range: MIDI channels 1 to 16
This page allows you to choose which program change number will be sent over
MIDI when the instrument is selected. If the instrument has been assigned
LOCAL status it won't matter what this parameter is set to because the instrument
won't send program changes. The MIDI Out program for each track is stored in
the eight performance presets, so you can use presets to send new program
changes on any instruments which have MIDI or BOTH status.
Range: 1 to 128
3 - 14
EDIT/Instrument Page
To Next Page
