Section 7 — Voice Parameters EPS-16 PLUS Musician's Manual

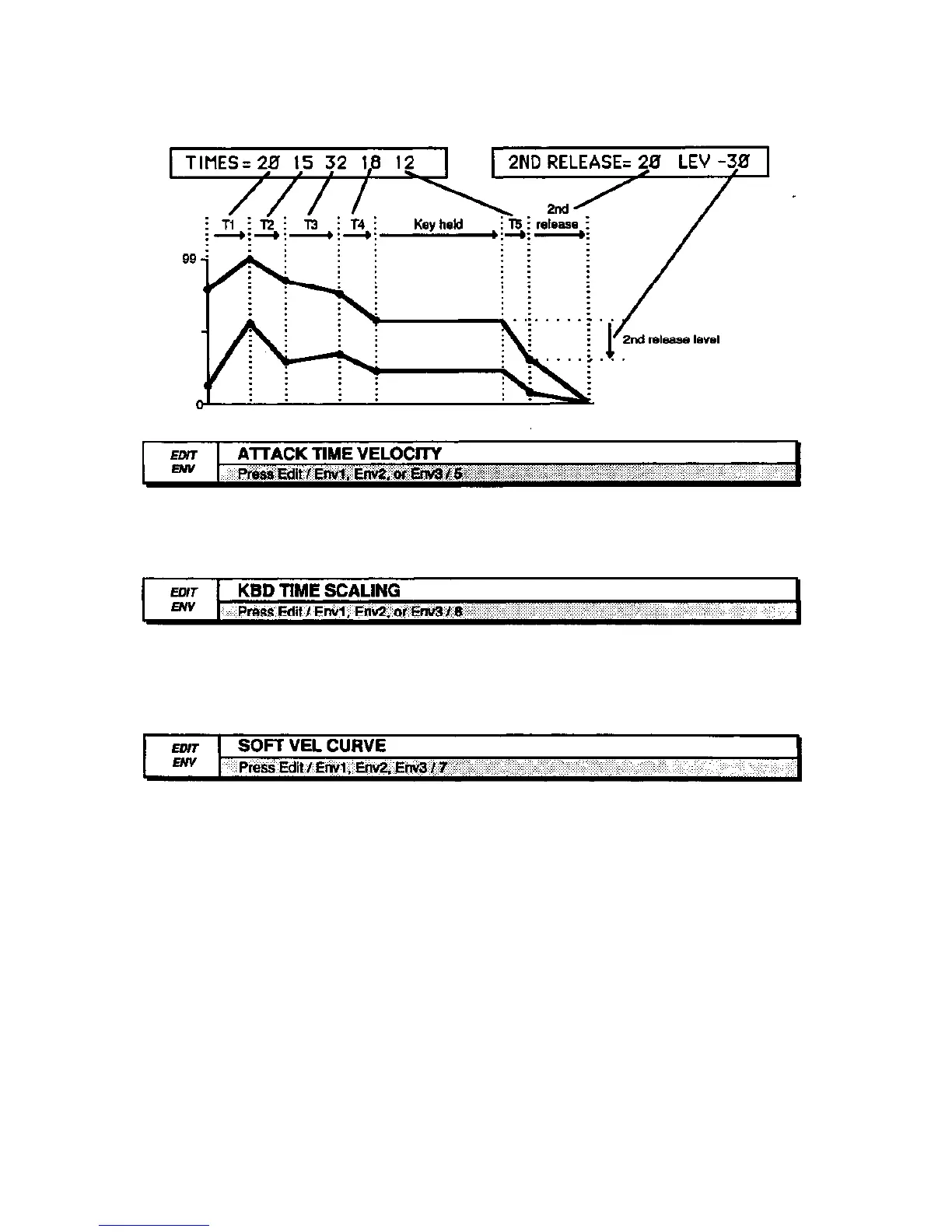

ATTACK TIME VELOCITY makes time 1 shorter with increasing velocity.
Range: 00 to 99
KEYBOARD TIME SCALING makes the envelope shorter for keys above the
root key. Keys below the root key will have longer envelopes; the root key is not
affected by this parameter. 2ND RELEASE TIME is not affected by this
parameter.
This parameter determines at what velocity level the envelopes switch from using
the SOFTVEL settings to the HARDVEL settings. There are four settings:
• OFF — The envelope uses only the HARDVEL levels, regardless of velocity.
• VEL, VEL1, VEL2 — These settings use the velocity response curves
illustrated in the discussion on modulators at the beginning of this section.
7 - 14
EPS-16 PLUS Envelopes
