EPS-16 PLUS Musician's Manual Section 3 — Instruments and Banks

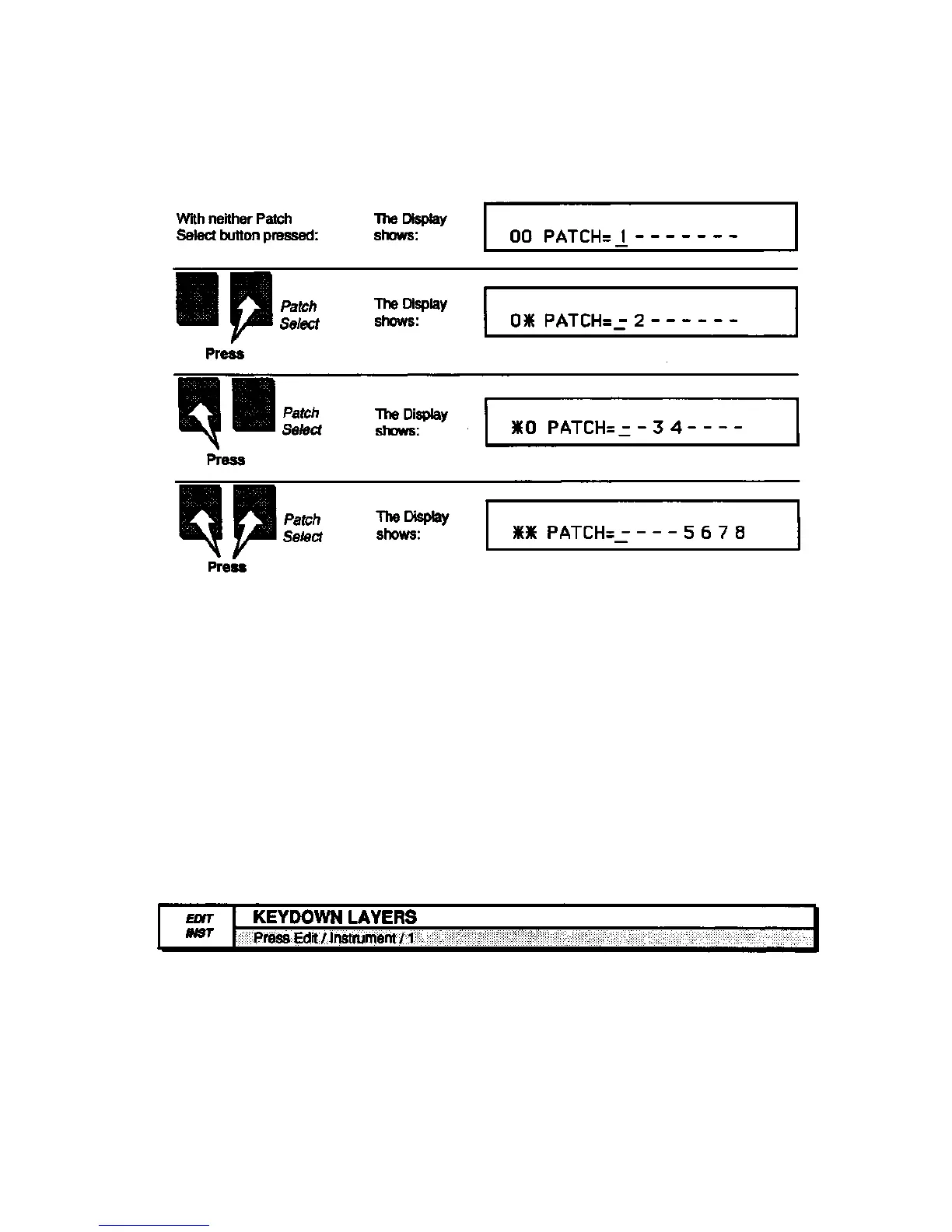

Here's how a typical instrument might react when you press the different patch
select buttons:
• A number means that a given layer is enabled, and will play in that patch;
• A dash means that the layer is disabled for that patch and will not play.
• Once you have the default patch programmed, press the left patch select button.
Notice that the left hand character in the display is now an asterisk, rather than a
zero. This indicates the status of that particular patch select button.
• With the left patch select button held down, use the Left/Right Arrow
buttons to select the individual layers and the Up/Down Arrow buttons to
enable and disable them, as you did with the default patch.
• Repeat the procedure with the right hand patch select button held down, then
with both patch select buttons held down.
• Remember to resave the instrument after you've made any changes.
The Patch Select buttons are sent and received over MIDI as MIDI controller #70.
The EPS-16 PLUS recognizes the 00-31 range as both patch select buttons up;
32-63 as the right patch select down; 64-95 as the left patch select and 96-127 as
both patch selects down.
Determines which layer(s) will be triggered when a MIDI key down is received.
• Select KEYDWN LAYERS=########. Use the cursor and the Up/Down
Arrow buttons to select either a number Gayer enabled on keydown) or a dash
(layer disabled on keydown) for that location.
EDIT/Instrument Page
3 - 13
