8.2 Check Boom Condition
n

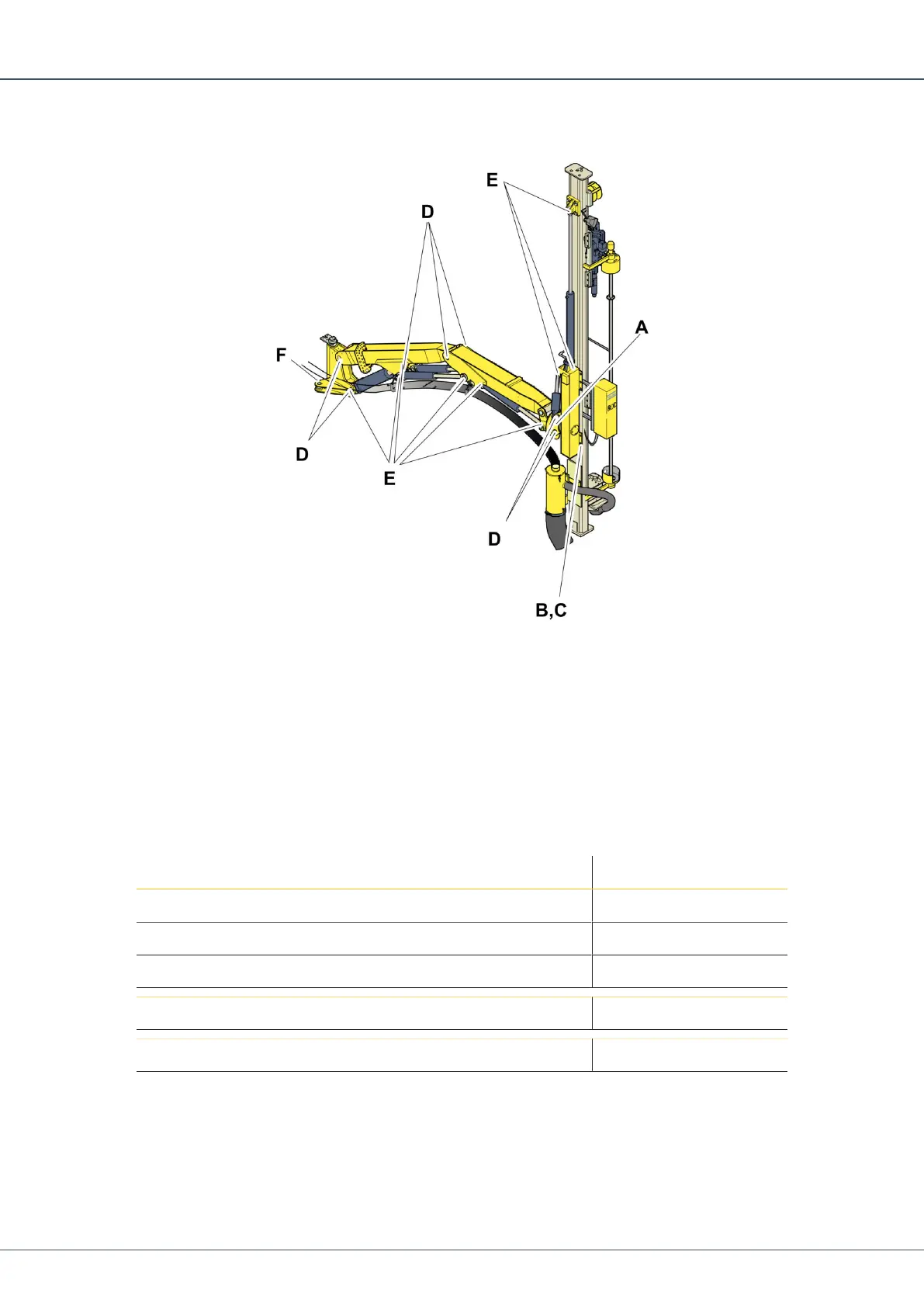

Check the attachment on the boom head (A).
n
Check the clearance between the feed and feed attachment (B).
n
Check the attachment on the feed attachment (C).
n
Check the clearance between the bushings, shaft, and holder (D).
Replace the bushings and the shaft if necessary.
n
Check clearance on the bearings in cylinder lugs (E).
n
Check attachment and damage on 9 locking plates (F).
Component Tightening Torque
Attachment on the boom head (A) 73 Nm (54 lbf.ft)
Attachment on the feed attachment (C) 185 Nm (136 lbf.ft)
Attachment on locking plates (F) 73 Nm (54 lbf.ft)
Clearance between the feed and feed attachment (B) 2–4 mm
Maximum clearance on the bearings in cylinder lugs (E) 1 mm
